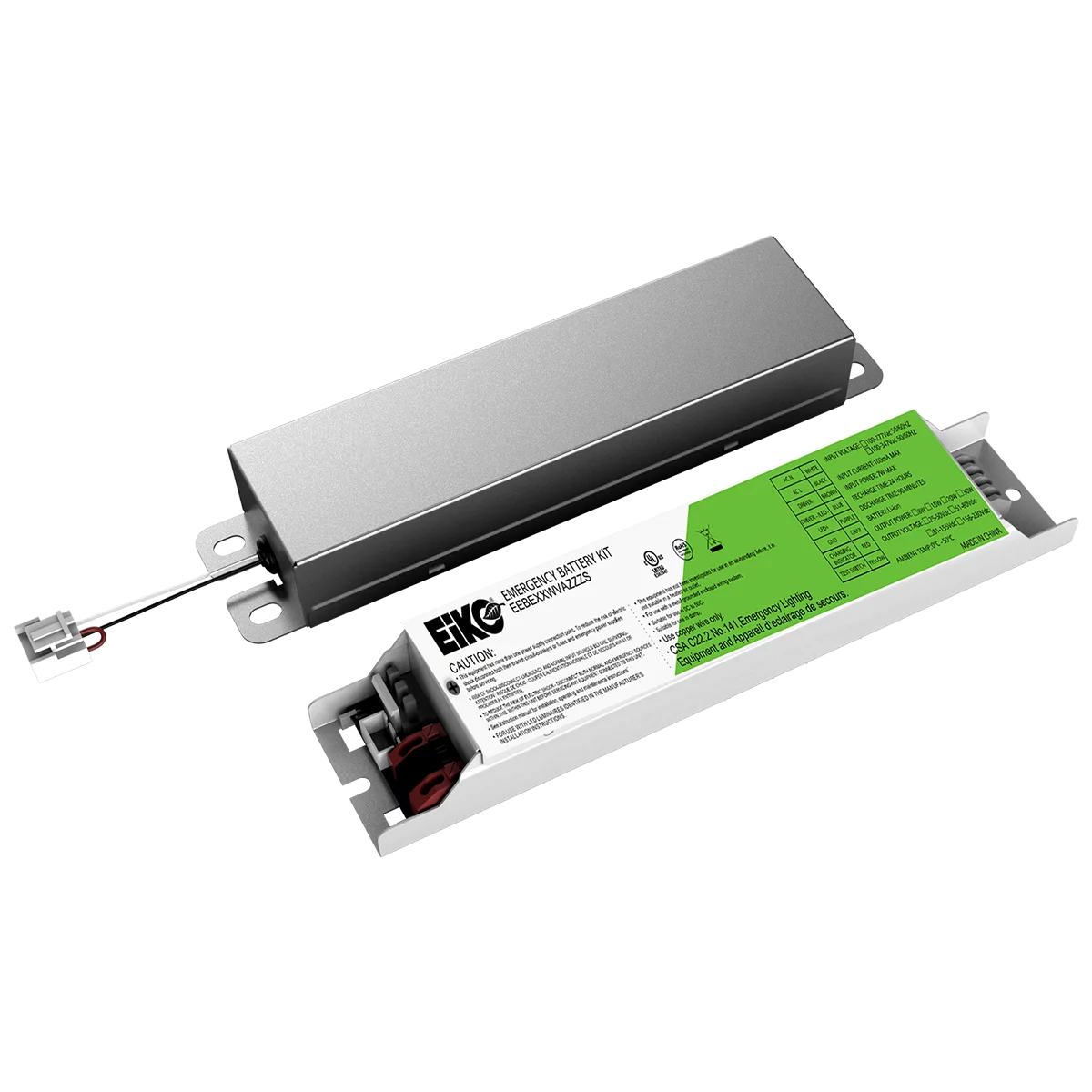

An LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation, featuring integrated self-diagnostic circuitry that automatically conducts regular tests to verify proper emergency capability.
Key Features and Benefits
- Self-diagnostic circuitry performs annual/monthly testing automatically, reducing maintenance costs
- Auto-adjusting Class 2 25-50VDC output accommodates a wide range of forward voltage LED designs
- Constant power design provides constant light output for 90 minutes
- UL Listed for field installation
- Two different form factors allow for greater flexibility when adding to fixtures
Specifications
- Input voltage: 120-277V 50/60Hz
- Input power: 7W (max)
- Output voltage: 25-50VDC
- Power Factor: >0.85
- Operating Temp: 0°C – 50°C
- Emergency operation: ≥90 mins
- Recharge: 24 hrs
- Long-life, maintenance-free, high temperature, recyclable lithium battery
- 5 year limited warranty
Common Uses
Ideal for use in LED fixtures for both normal and emergency lighting, ensuring continuous illumination during power outages.
