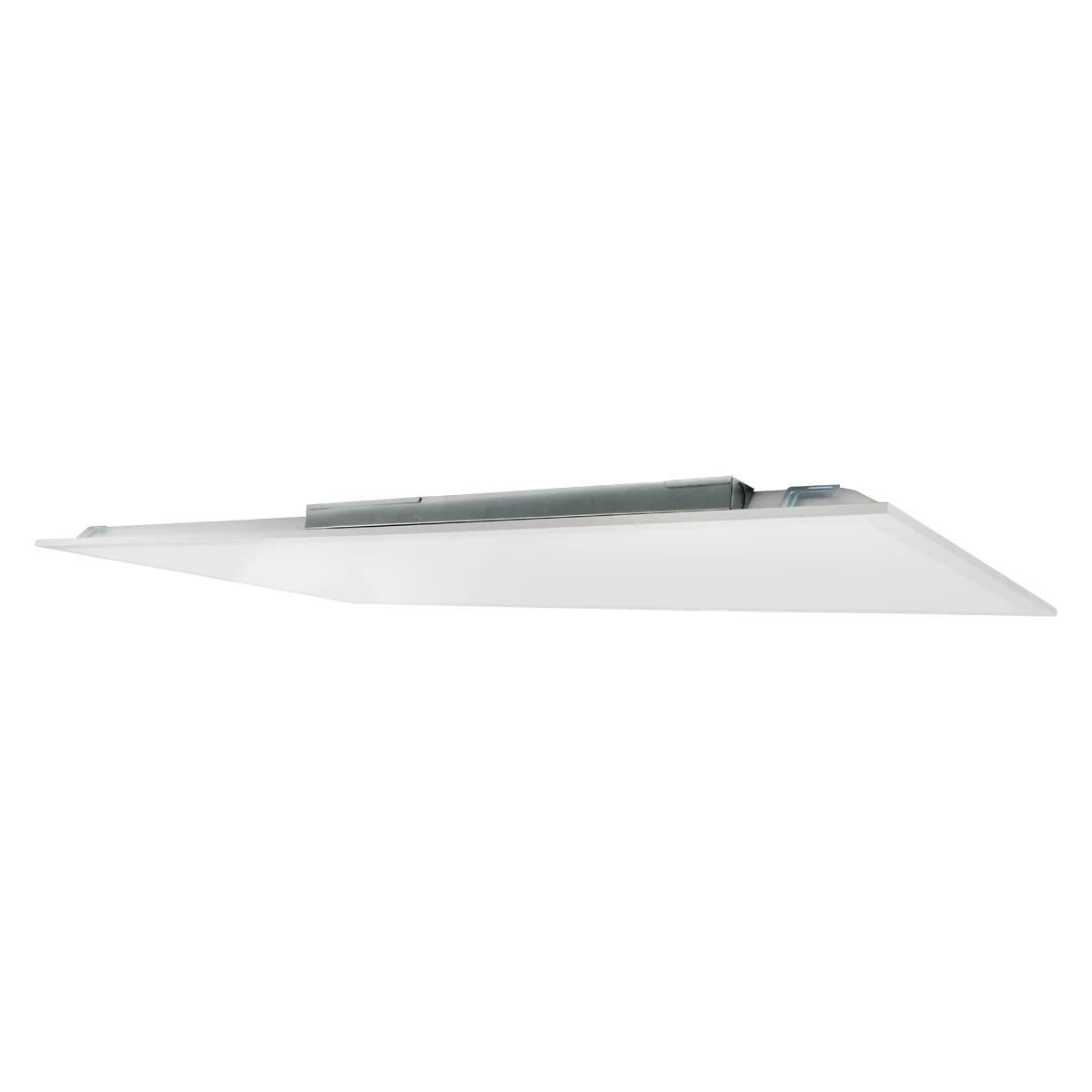

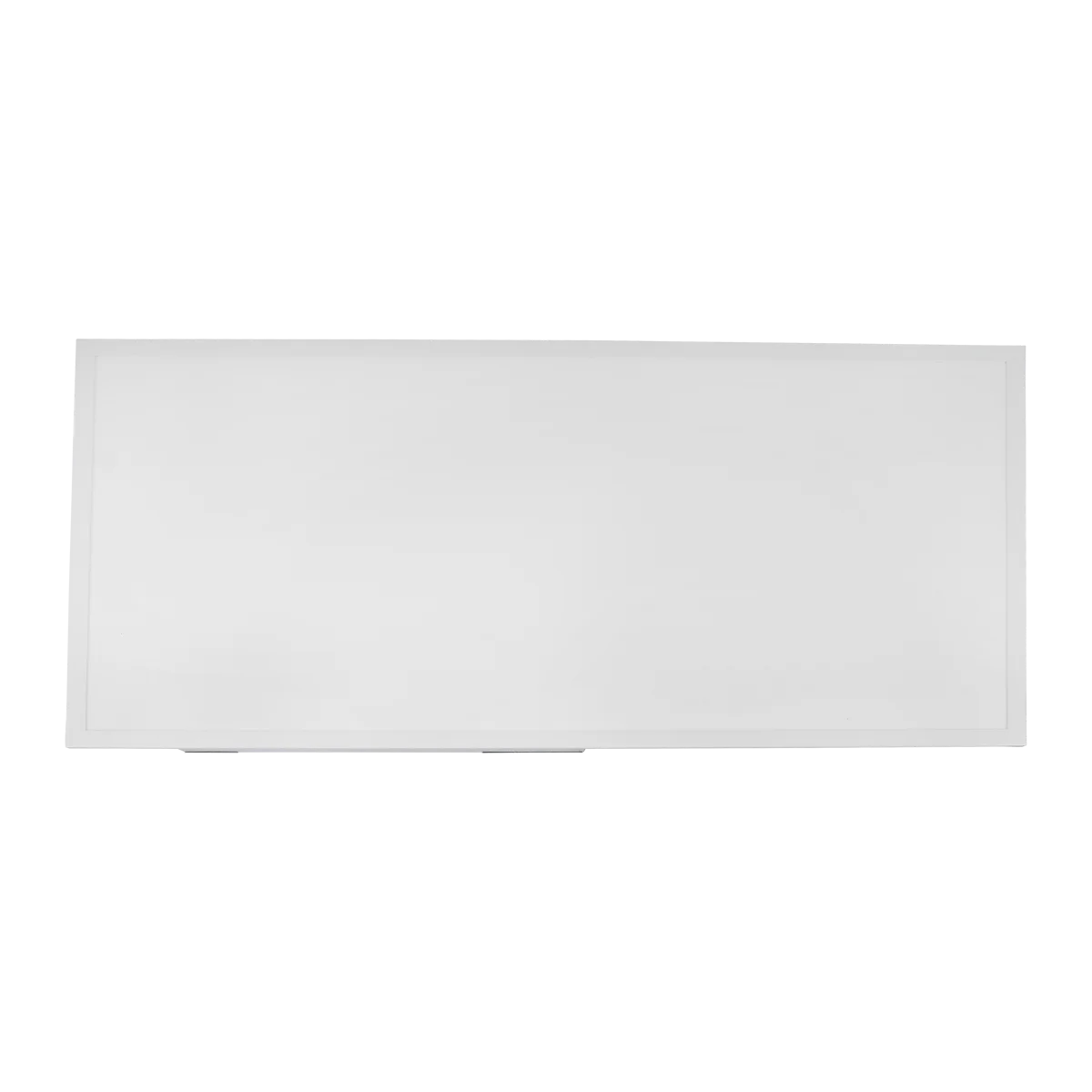

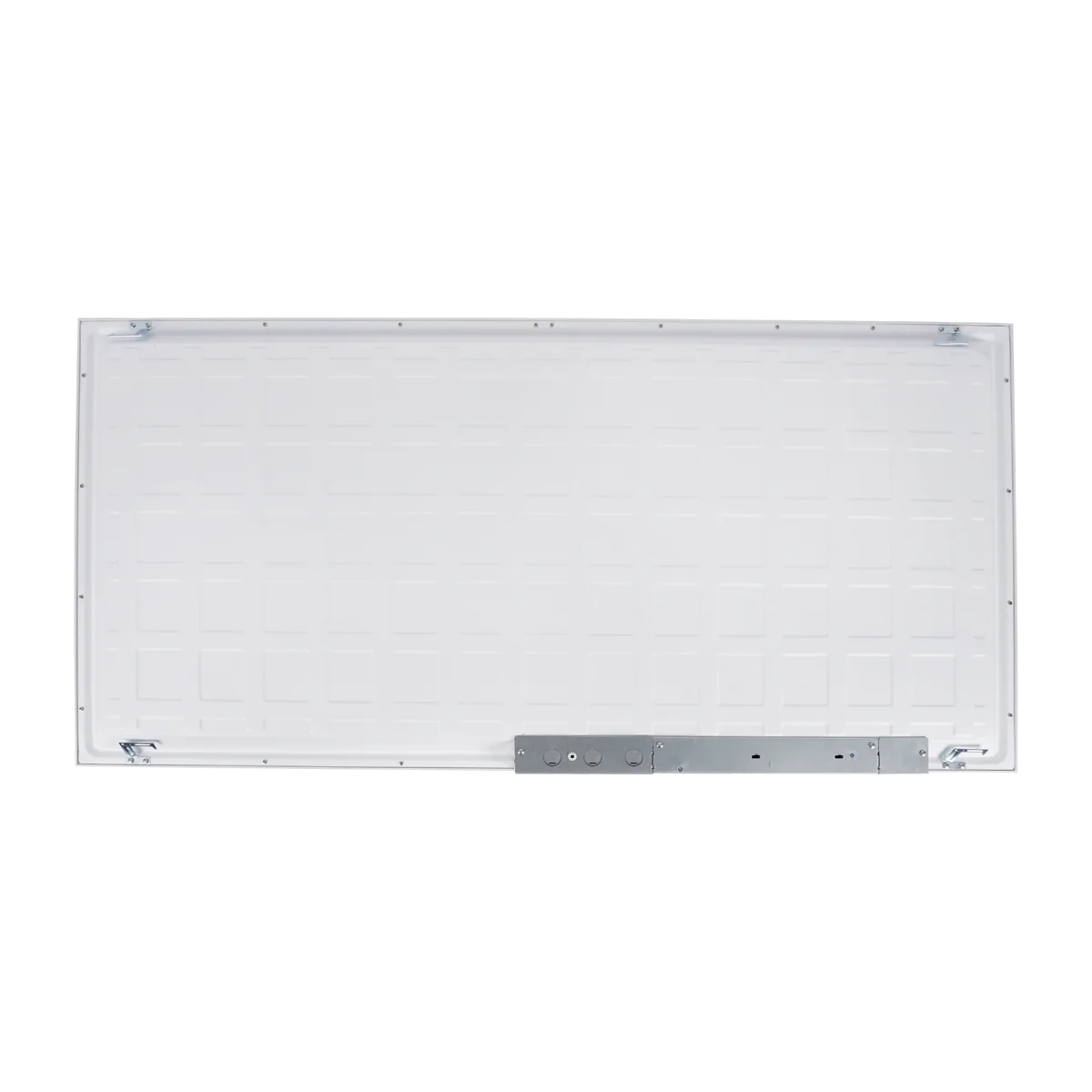

The EiKO BP1 Series Backlit Panel in 2×4 size is a flagship solution for commercial lighting, offering advanced field-selectable power and color temperature options. Designed for flexibility and performance, this ultra-slim panel delivers uniform, high-efficacy illumination and is perfect for a wide range of ceiling applications.
Key Features and Benefits
- Selectable wattage (50W/40W/30W) and CCT (3500K|4000K|5000K) for on-site customization
- High lumen output up to 6,250 lumens for bright, even lighting
- Wide input voltage range (120-347V) for compatibility with various installations
- Premium efficacy up to 125 LPW for energy savings
- Sturdy, low-profile steel frame with non-yellowing PMMA lens
- IC rated for safe use in insulated ceilings
- 0-10V dimming with Dim-to-Off for advanced lighting control
- DLC Premium listed for quality and rebates
- Long lifespan with L70 at over 100,000 hours
- Integrated surge protection and low THD for reliability
Specifications
- Size: 2×4
- Lumens: 6,250|5,000|3,750 lm
- Wattage: 50W|40W|30W
- Voltage: 120-347V
- Color Temperature: 3500K|4000K|5000K
- CRI: >80
- Efficacy: up to 125 LPW
- L70: >100,000 hours
- Dimming: 0-10V, Dim-to-Off
- Certifications: DLC Premium, IC Rated
Common Uses
Ideal for offices, hospitals, schools, retail spaces, medical and dental offices, libraries, community centers, and commercial buildings seeking efficient, flexible, and reliable lighting.
