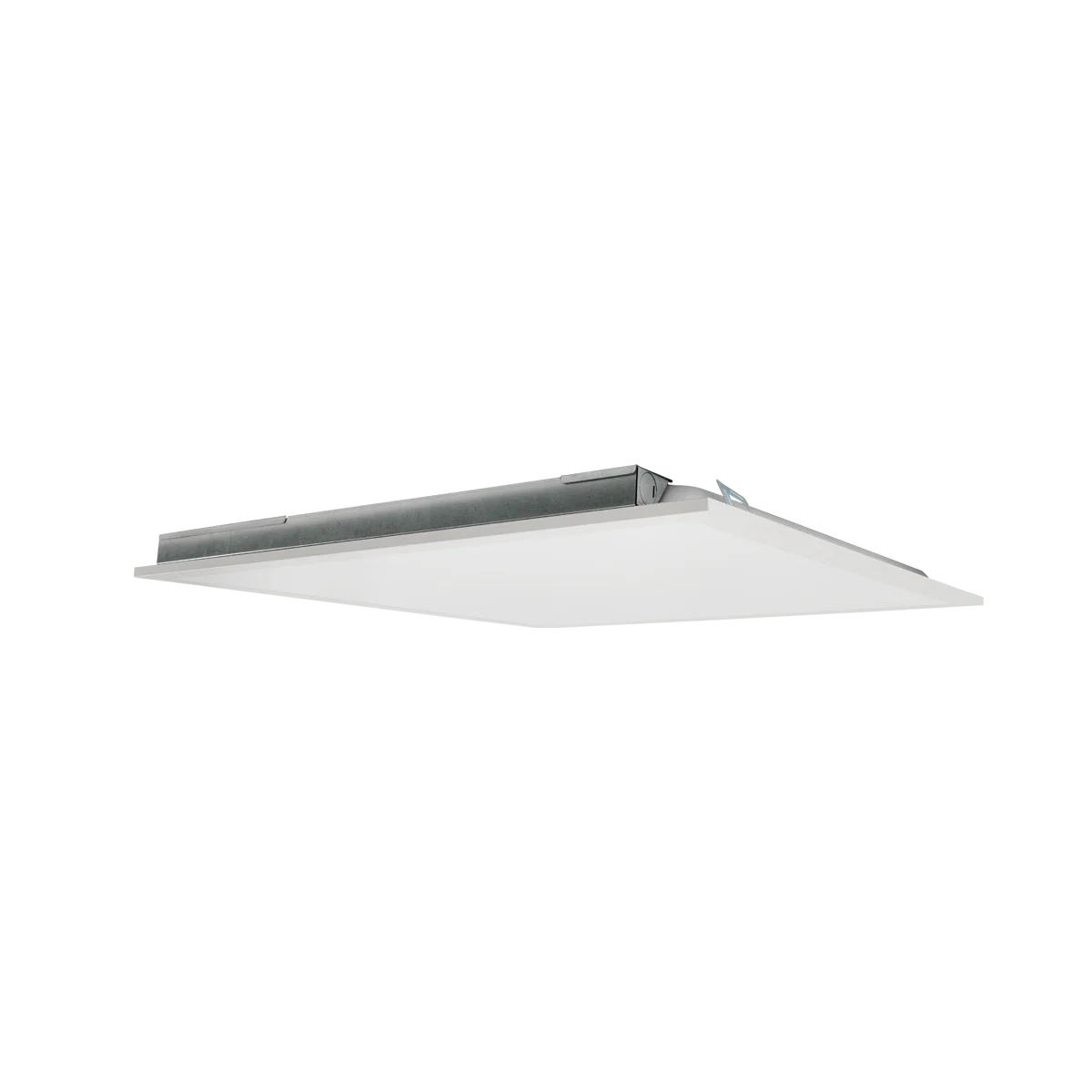

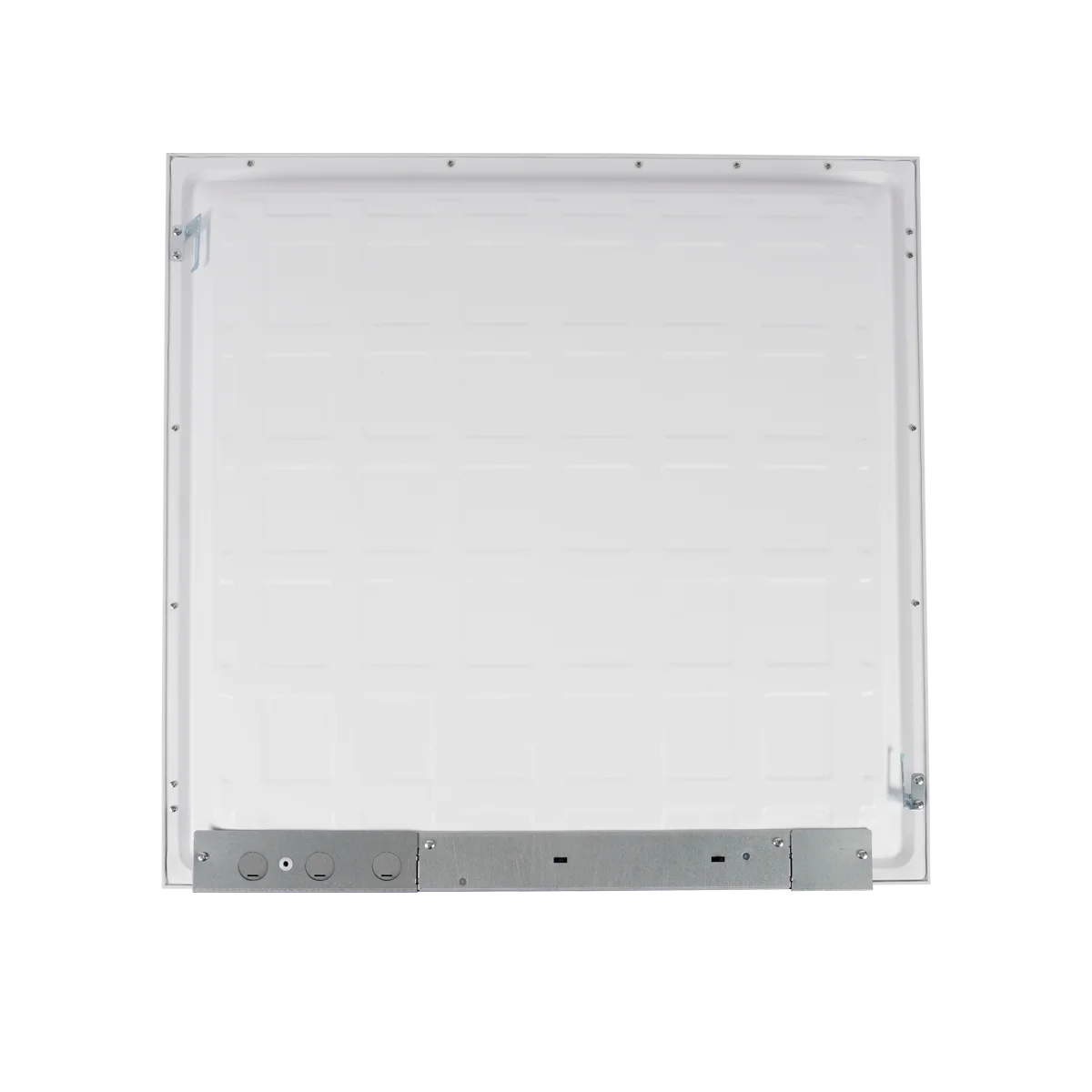

EiKO BP1 Backlit Flat Panel, 2×2, PowerSet 30/25/20W, 4000K, DLC Premium, 120-277V

The EiKO BP1-22PS30P-40-U is a 2×2 backlit LED flat panel from EiKO’s BP1 series, designed for high performance and versatility in commercial lighting applications. Its PowerSet feature allows you to select from three wattages and lumen outputs, making it easy to tailor the light to your needs. The backlit design ensures uniform illumination, while the lightweight construction simplifies installation, especially in shallow plenum spaces.

Key Features and Benefits

• Selectable wattage (30W/25W/20W) and lumen output for flexible installation
• Consistent 4000K color temperature delivers bright, neutral white light
• High efficacy up to 125 lm/W for energy savings
• Non-yellowing PMMA lens for lasting clarity and uniformity
• 0-10V dimming and dim-to-off capability
• ETL, DLC Premium, RoHS, FCC, IC rated, and plenum rated for safety and compliance
• Long 100,000-hour L70 lifespan backed by a 5-year warranty
• Lightweight, low-profile design for easy installation in tight spaces

Specifications

• Size: 2×2 ft
• Lumens: 3750lm | 3125lm | 2500lm
• Wattage: 30W | 25W | 20W
• Voltage: 120-277V
• Color Temperature: 4000K
• CRI: >80
• Beam Angle: 120°
• Operating Temp: -4°F to 113°F (-20°C to 45°C)

Common Uses

Perfect for offices, hospitals, schools, retail spaces, and general purpose commercial lighting where energy efficiency, flexibility, and easy installation are priorities.
