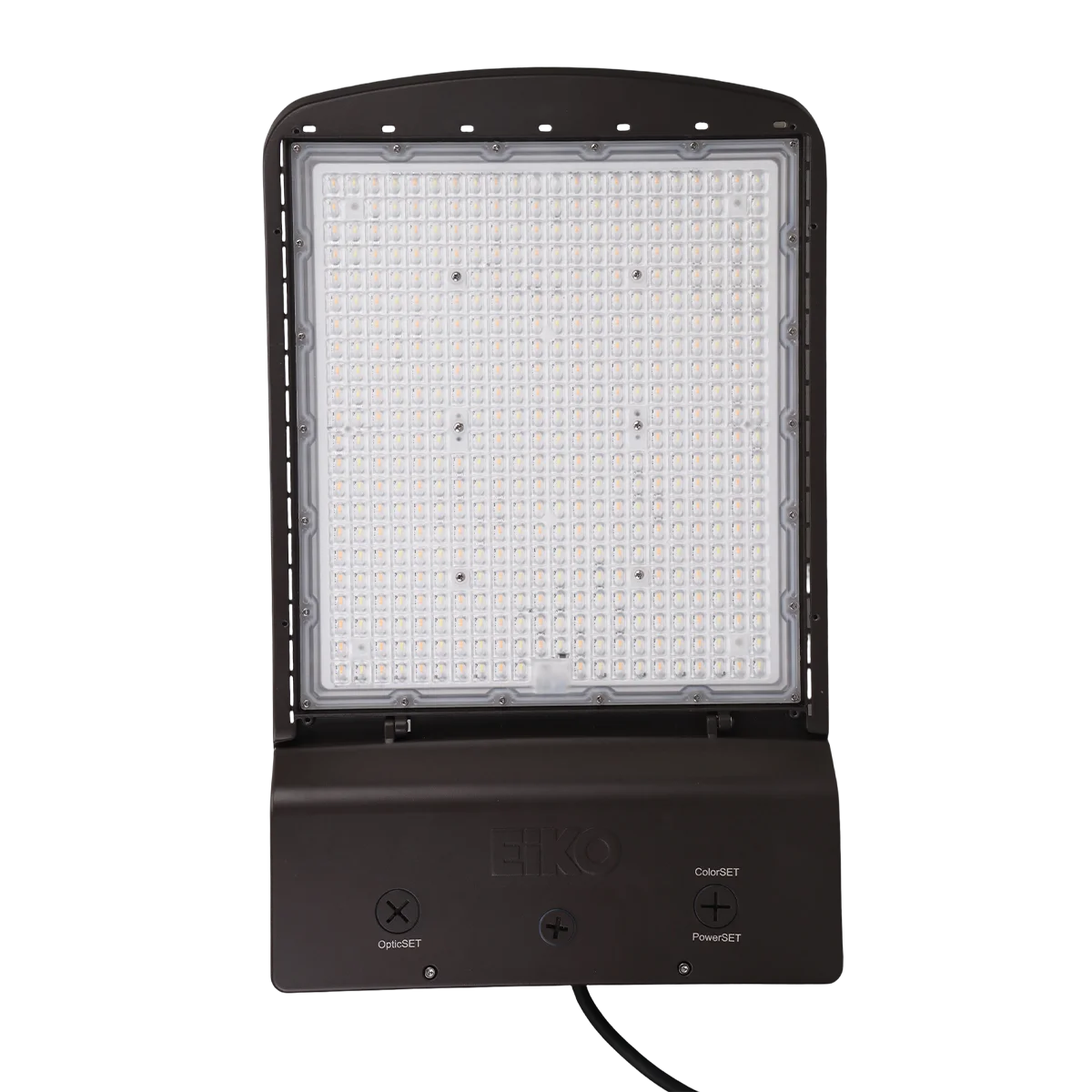

The EiKO AAL2 LED Area Light is a flexible outdoor fixture designed for demanding commercial lighting projects. PowerSET, ColorSET and OpticSET let installers tune output, color temperature and distribution on site, making the AAL2 series a versatile choice for area and roadway lighting.
Key Features and Benefits
- Field-selectable power, CCT and Type III, Type IV or Type V optics help adapt lighting to site requirements.
- Die-cast aluminum construction supports heat management and durable outdoor performance.
- Controls-ready design, 0-10V dimming and built-in 10kV surge protection support energy management and reliability.
- UL Listed and cUL Listed, with DLC Premium and RoHS compliance.
- Backed by a 5-year limited warranty.
- Suitable for wet and damp locations, with IP65 protection.
Specifications
- Power settings: 300W, 240W or 180W
- Lumen output: 43,500 lm, 35,600 lm or 30,200 lm
- Input voltage: 277-480V
- Color temperature: 3000K, 4000K or 5000K
- Light distribution: Type III, Type IV or Type V
- CRI: 80+
- Dimming: 0-10V
- Frequency: 50/60 Hz
- Power factor: >0.9
- THD: <20%
- Rated life: L70 up to 100,000 hours at 25°C
- Surge protection: Built-in 10kV
- Operating temperature: -40°C to 50°C
- Housing: Die-cast aluminum
- Finish: Bronze
- Fixture dimensions: 23.08″ x 14.17″ x 2.93″
- Fixture weight: 12.17 lb
Common Uses
Ideal for parking lots, automotive dealerships, roadways, area security lighting, entryways, campuses, streetscapes, airports, building facades and retail plazas.
