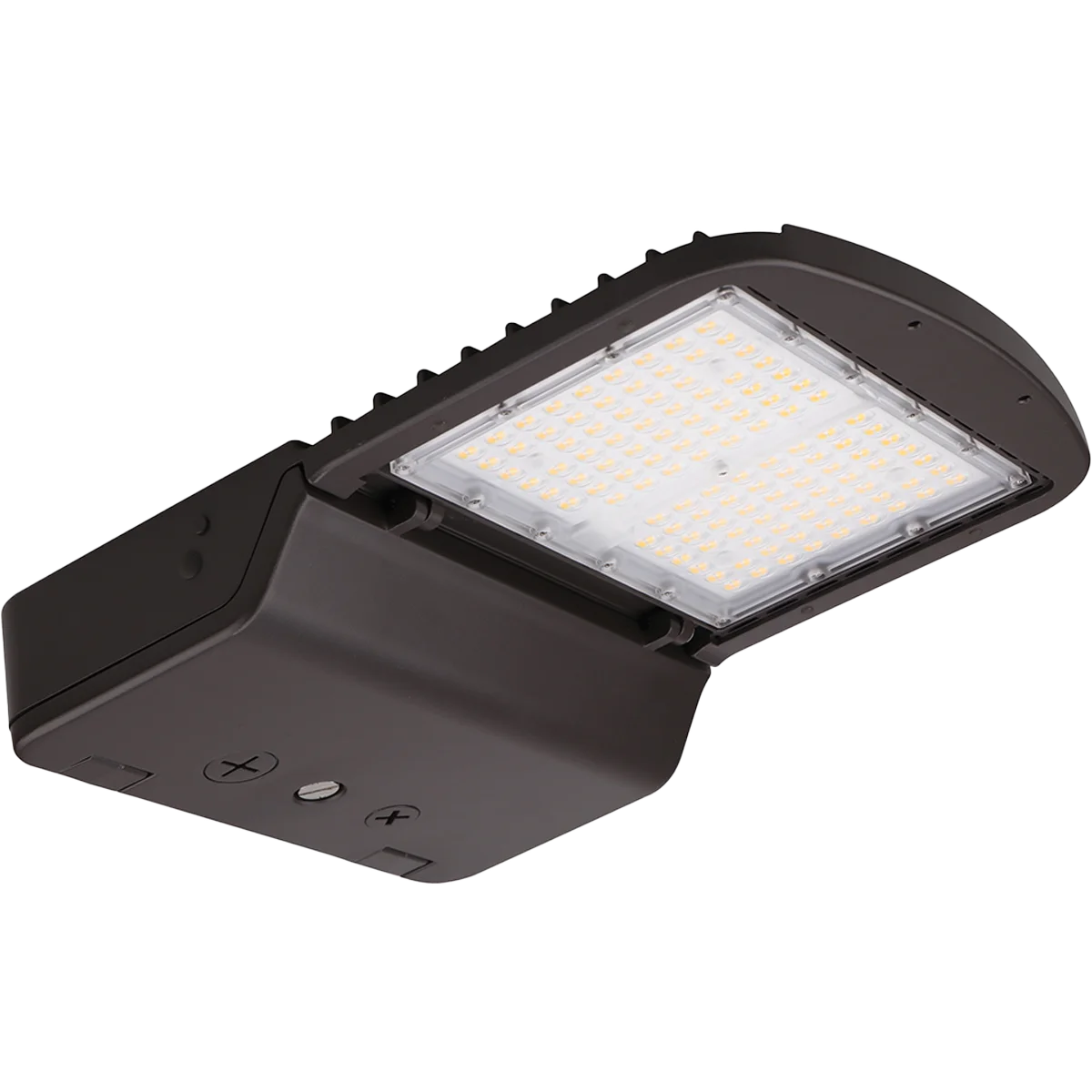

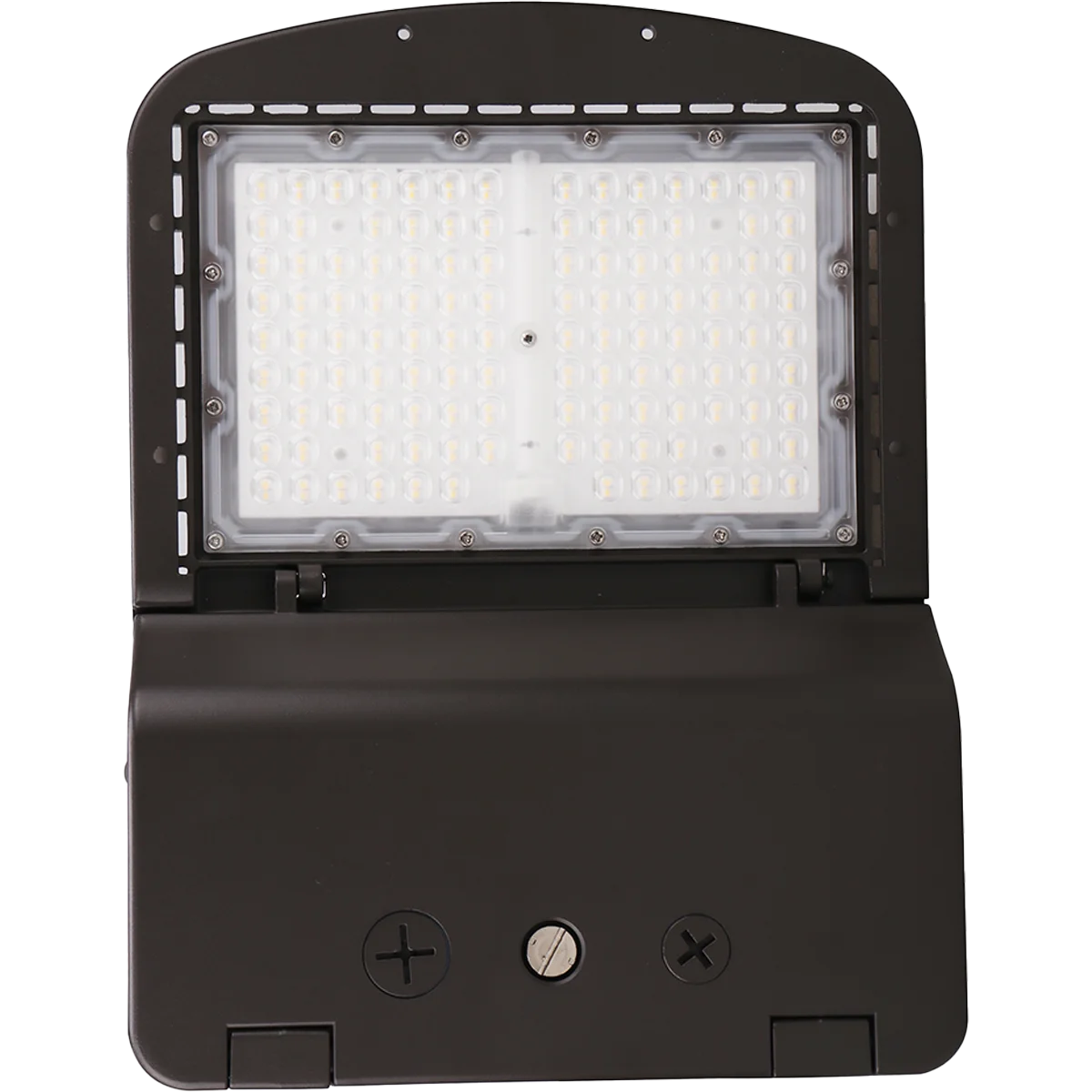

The EiKO AAL1 series is a high-performance architectural area light designed for modern outdoor site and roadway illumination. Built for flexibility, this PowerSet model allows field-adjustable wattage while delivering dependable light quality and robust environmental protection. As part of EiKO’s premium outdoor lineup, it combines efficiency, controls readiness, and durable construction for long-term commercial use.
Key Features and Benefits
- PowerSet technology enables quick field wattage selection to match project light levels and reduce energy use.
- Controls-ready design with screw-in receptacle simplifies adding sensors or networked lighting controls later.
- Rugged outdoor build with IP65 ingress protection and IK08 impact resistance for demanding environments.
- High efficacy performance helps lower operating costs while maintaining strong lumen output.
- Certified for quality and compliance with UL Listed, DLC Premium, RoHS, and FCC standards.
- Backed by a 5-year limited warranty for added project confidence.
Specifications
- Lumen Output: 14000|11200|8400
- Wattage: 100W|80W|60W
- Voltage: 120-277V
- Color Temperature: 5000K
- CRI: 80
- Dimming Type: 0-10V
- Distribution Type: Type V
- Power Factor: 0.9
- THD: 20
- Efficacy (lm/W): 140
- Rated Life (70 Hours): 100000
- Max Ambient Temperature: 50°C
- Housing Material: Die-cast aluminum
- Lens Material: Polycarbonate
- Finish / Color: Bronze
- IP Rating: IP65
- IK Rating: IK08
Common Uses
Ideal for parking areas, auto dealerships, roadways, campuses, airports, urban developments, building facades, entrances, security lighting zones, and sign illumination applications.
