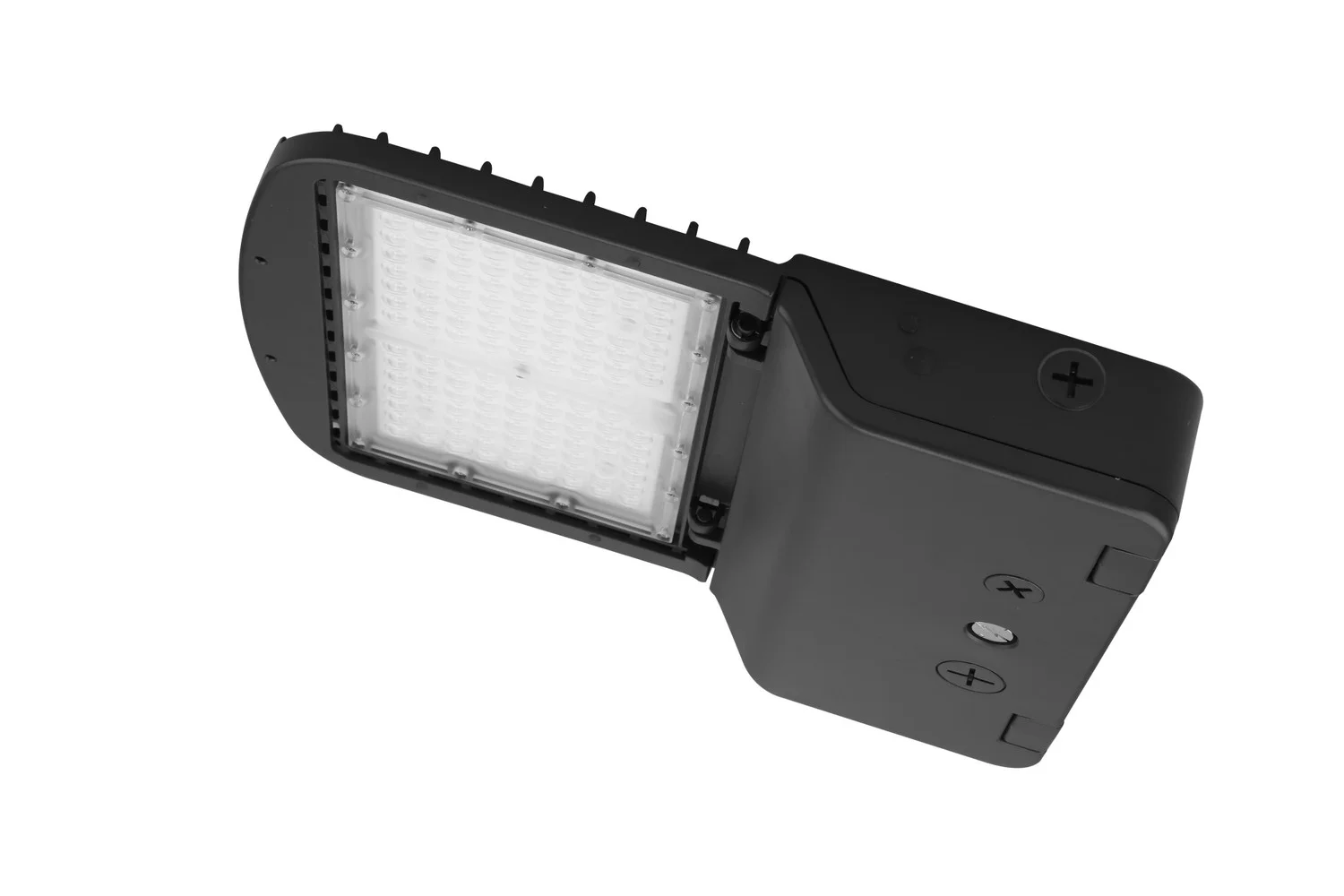

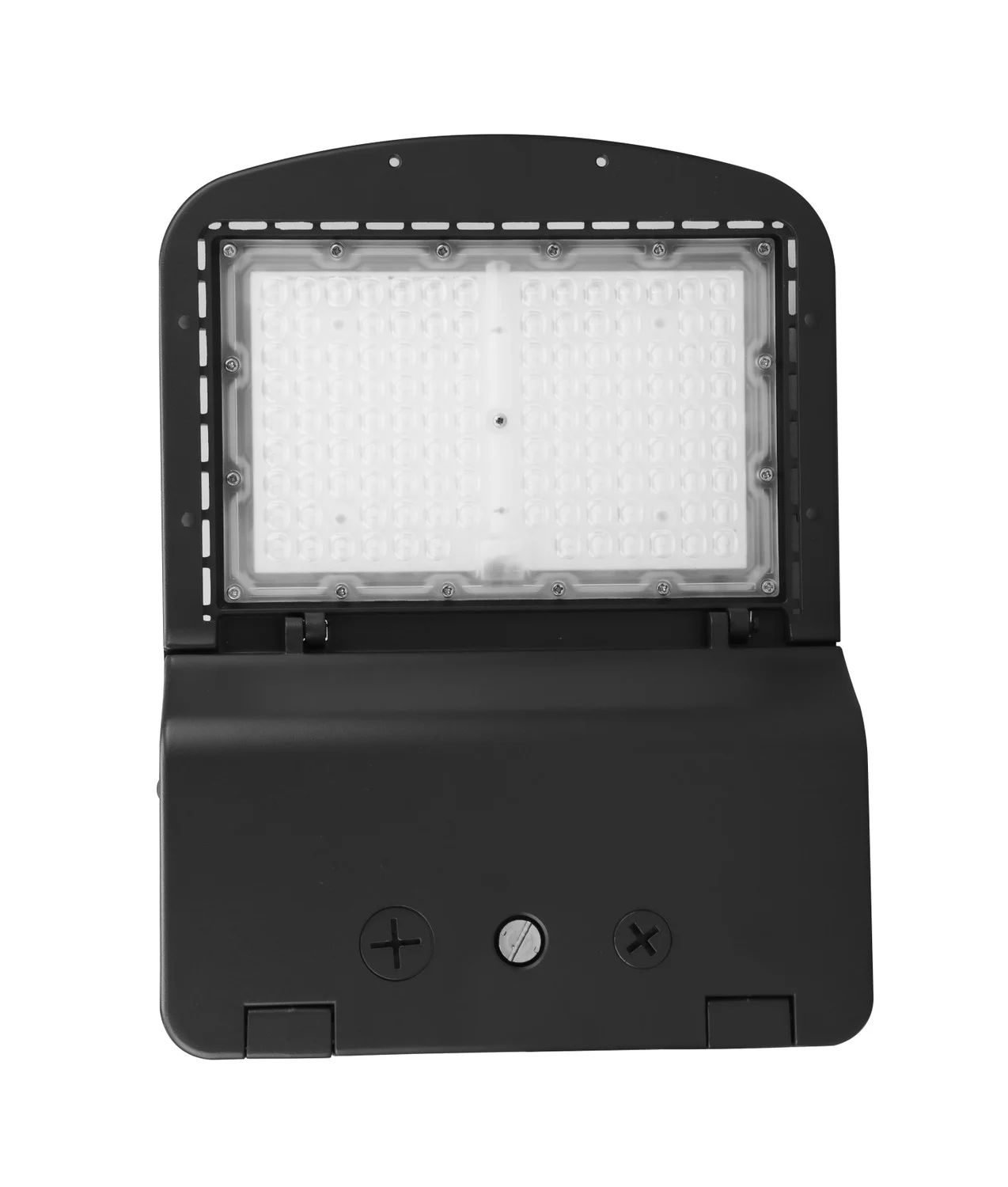

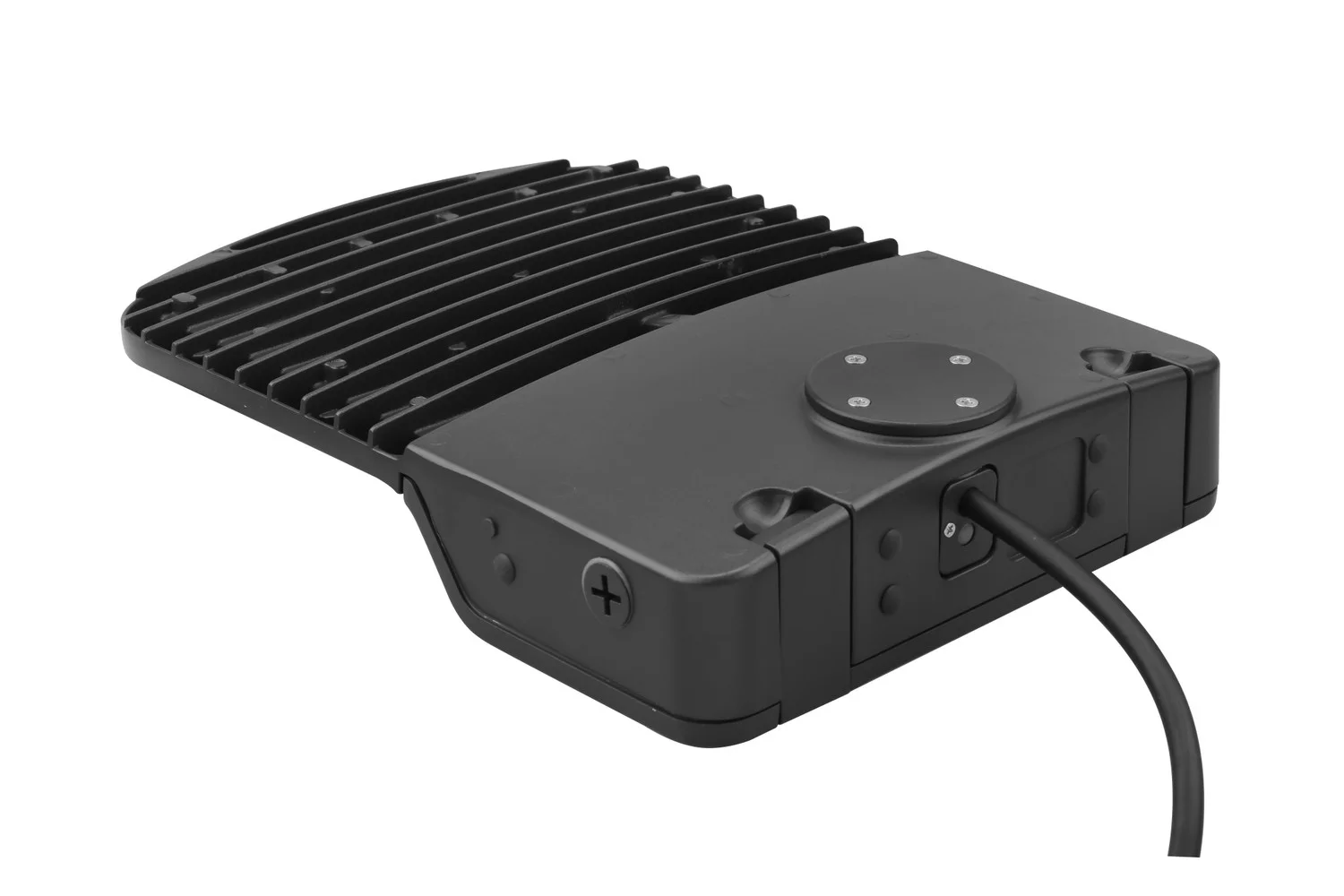

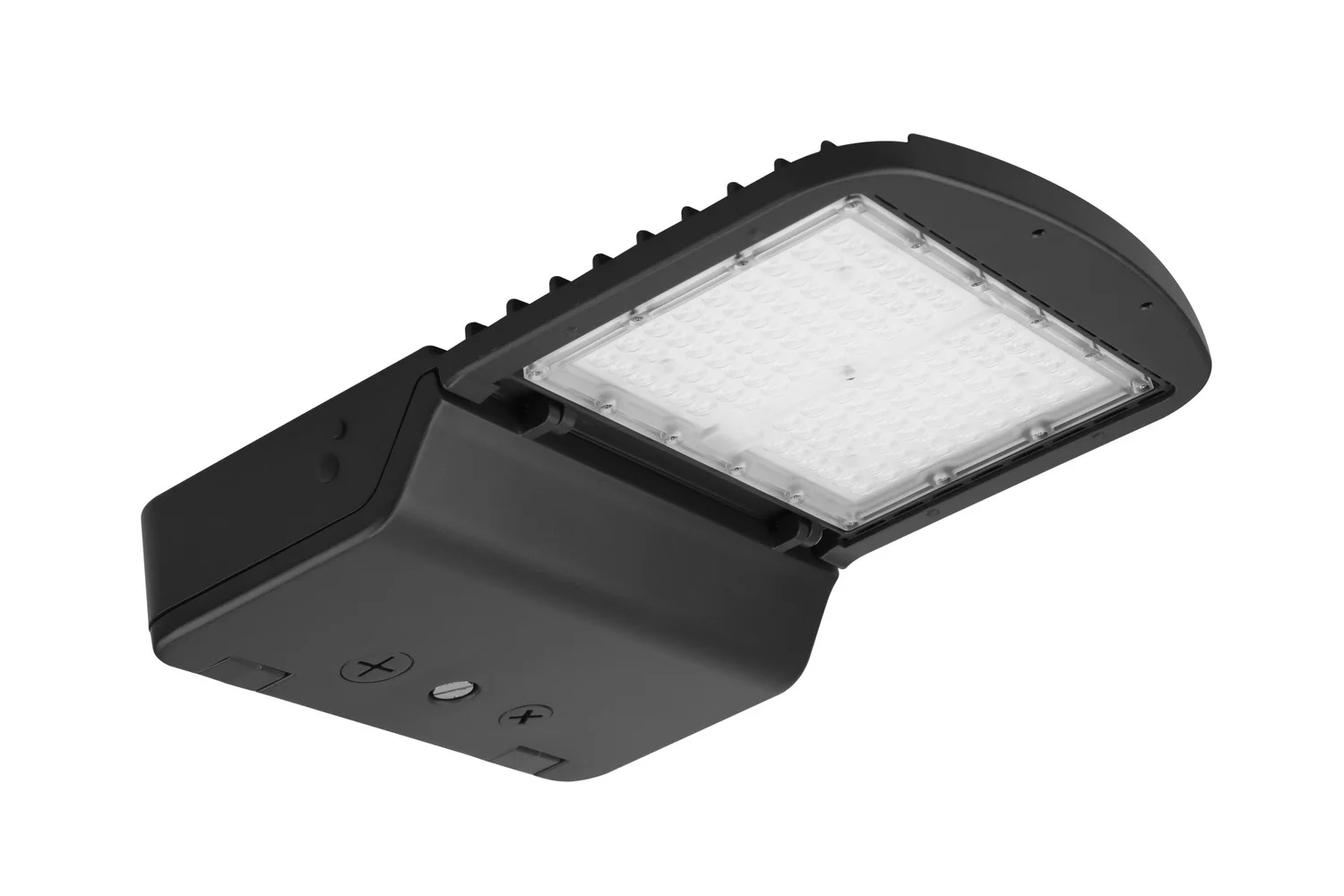

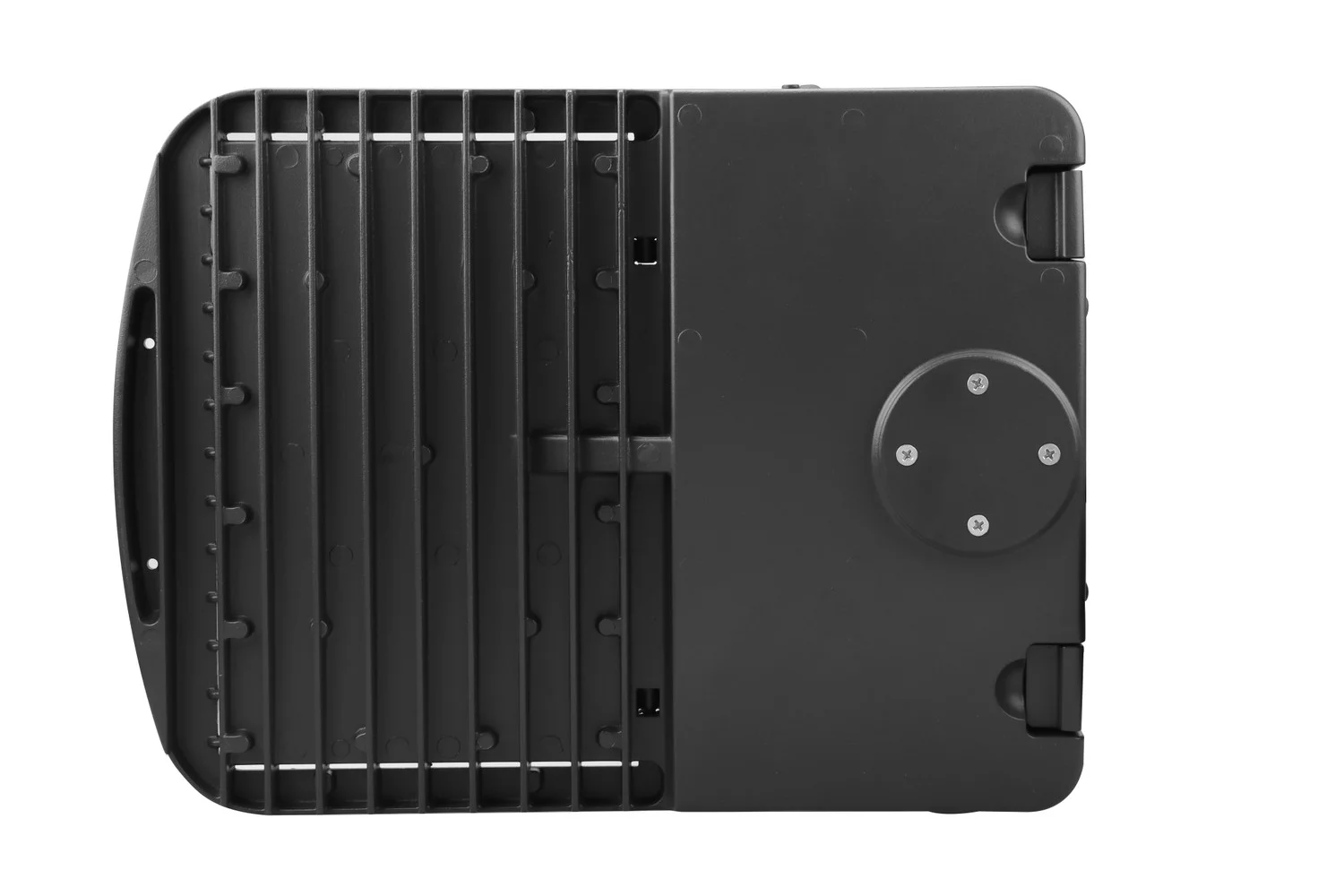

The EiKO AAL1 Series is a high-performance architectural LED area light designed for demanding outdoor site and roadway applications. Built for flexibility, it combines selectable power options, controls-ready functionality, and multiple optical distributions in one robust platform. As part of EiKO’s outdoor lineup, the AAL1 delivers strong efficacy, long life, and dependable operation in harsh environments.
Key Features and Benefits
Controls-ready design with screw-in receptacle simplifies future upgrades to photocells, motion sensors, or networked controls.
Outdoor-tough construction with IP65 ingress protection, IK08 impact rating, and 3G vibration rating for reliable service.
DLC Premium qualified performance supports utility rebate opportunities and high-efficiency project goals.
Certified for broad compliance with UL Listed, FCC, and RoHS standards.
Backed by a 5-year limited warranty for added project confidence.
Specifications
- Lumen Output: 14000
- Wattage: 100W
- Voltage: 120-277V
- Color Temperature: 4000K|5000K
- CRI: 80
- Dimming Type: 0-10V
- Power Factor: 0.9
- THD: 20
- Efficacy (lm/W): 140
- Rated Life (70 Hours): 100000
- Distribution Type: Type II|Type IV
- Max Ambient Temperature: 50°C
- Housing Material: Die-cast aluminum
- Lens Material: Polycarbonate
- Finish / Color: Bronze
- IP Rating: IP65
- IK Rating: IK08
Common Uses
Ideal for parking areas, campuses, roadways, streetscapes, airports, automotive dealerships, building facades, entryways, signage, and general area security lighting.
