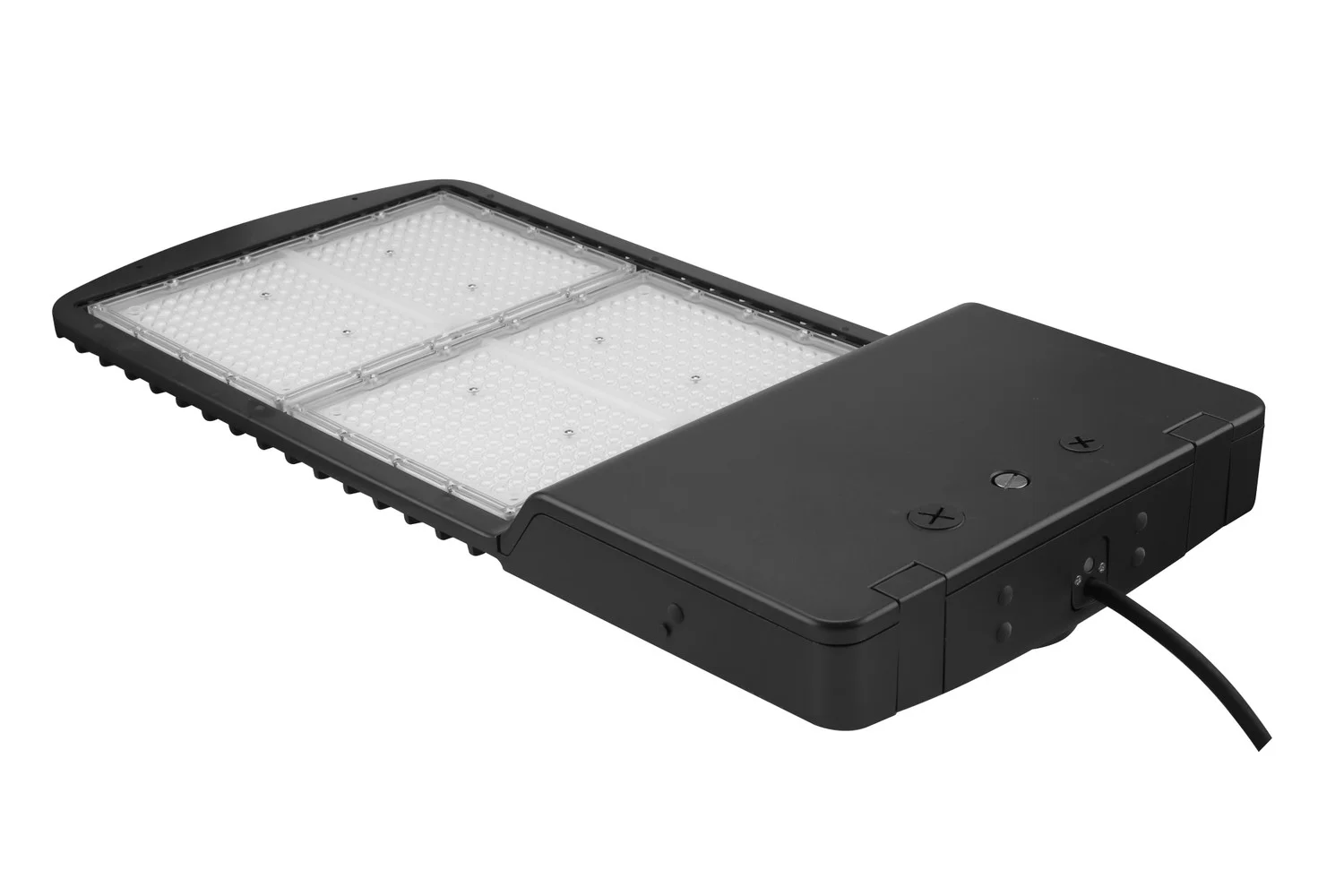

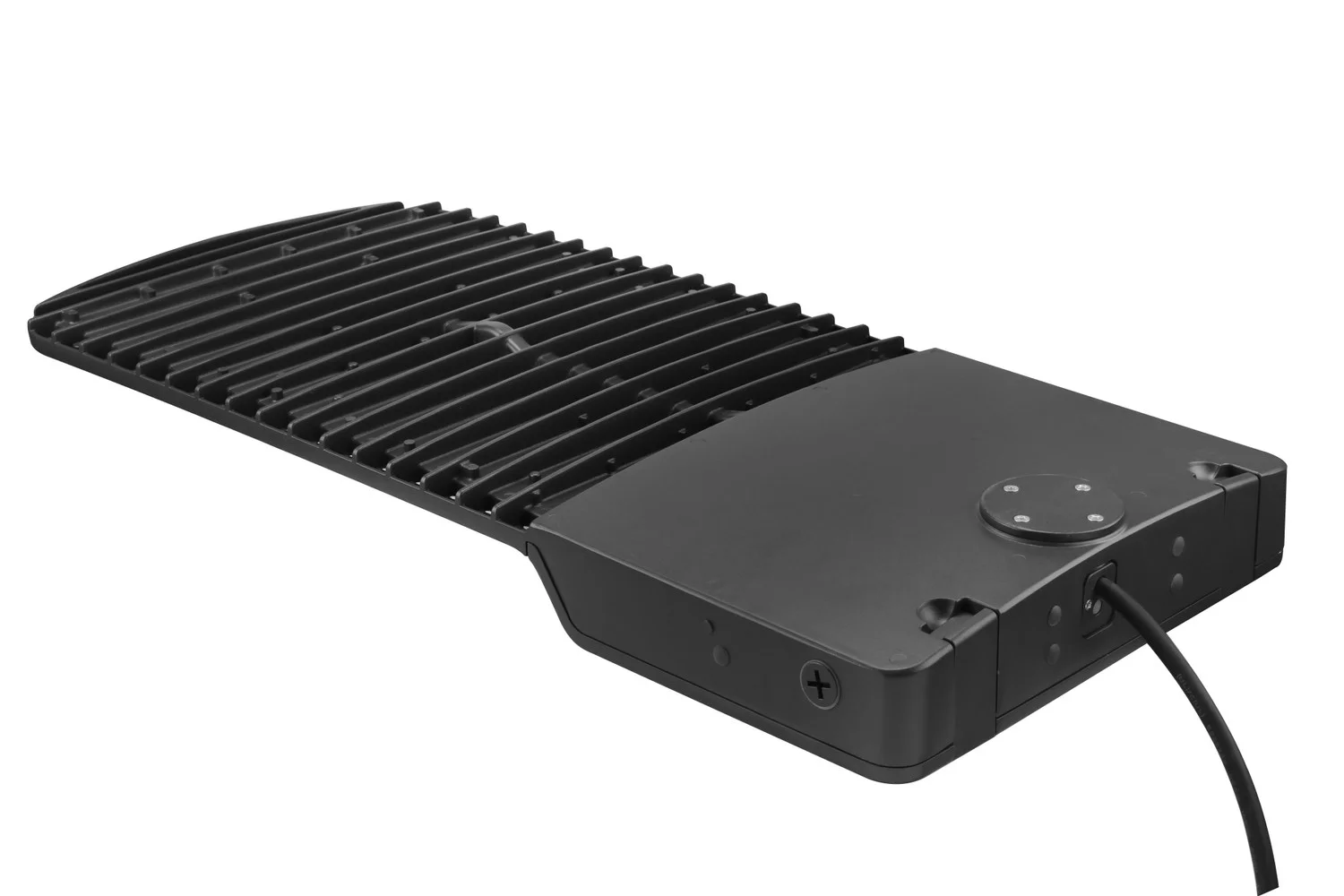

The EiKO AAL1 Area Light is a high-performance architectural outdoor fixture designed for demanding area and site lighting applications. As part of EiKO’s premium area lighting lineup, it combines high lumen output, selectable power, and controls-ready flexibility to simplify specification and long-term operation.
Key Features and Benefits
- PowerSet technology enables field-selectable wattage (450W/400W/350W) to fine-tune light levels and energy use.
- Controls-ready design with screw-in receptacle supports easy integration of standalone or networked controls.
- Rugged outdoor construction with IP65 and IK08 ratings helps withstand harsh weather and impact-prone environments.
- DLC Premium qualification supports utility rebate opportunities and high efficacy performance.
- Certified for broad project compliance with UL Listed, RoHS, FCC, and ICES-005 standards.
- Backed by a 5-year limited warranty for added project confidence.
Specifications
- Lumen Output: 63000/56000/49000
- Wattage: 450W/400W/350W
- Voltage: 120-277V
- Color Temperature: 4000K
- CRI: >80
- Dimming Type: 0-10V (dim-to-off)
- Distribution Type: Type IV
- Efficacy: 140 lm/W
- Rated Life (L70): 100000 hours
- Operating Temperature: -40b0C to 50b0C
- Housing: Bronze powder-coated die-cast aluminum
- Lens: Impact and UV-resistant polycarbonate
Common Uses
Ideal for parking areas, roadways, campuses, airports, automotive dealerships, streetscapes, building facades, entryways, signage, and perimeter security lighting.
