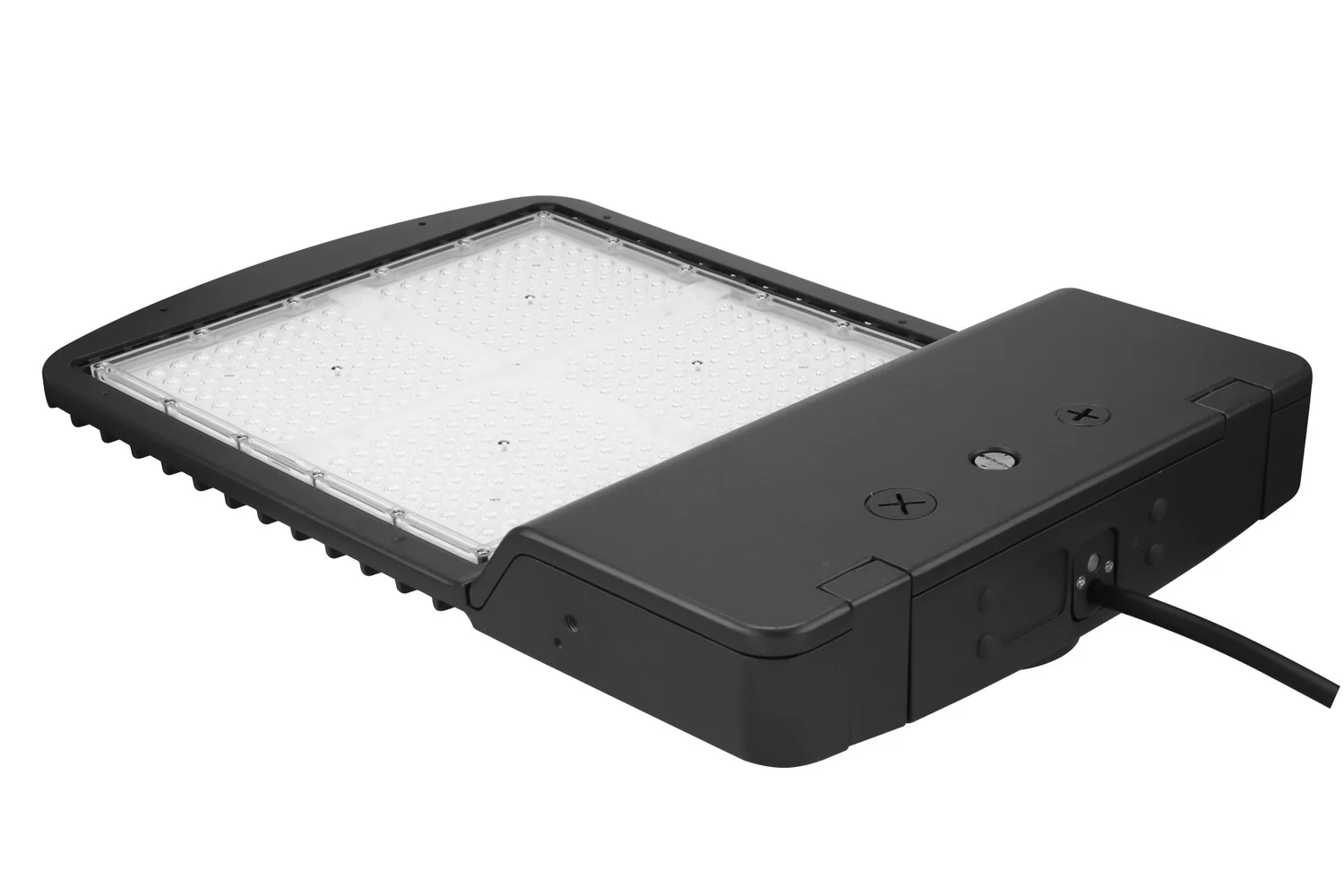

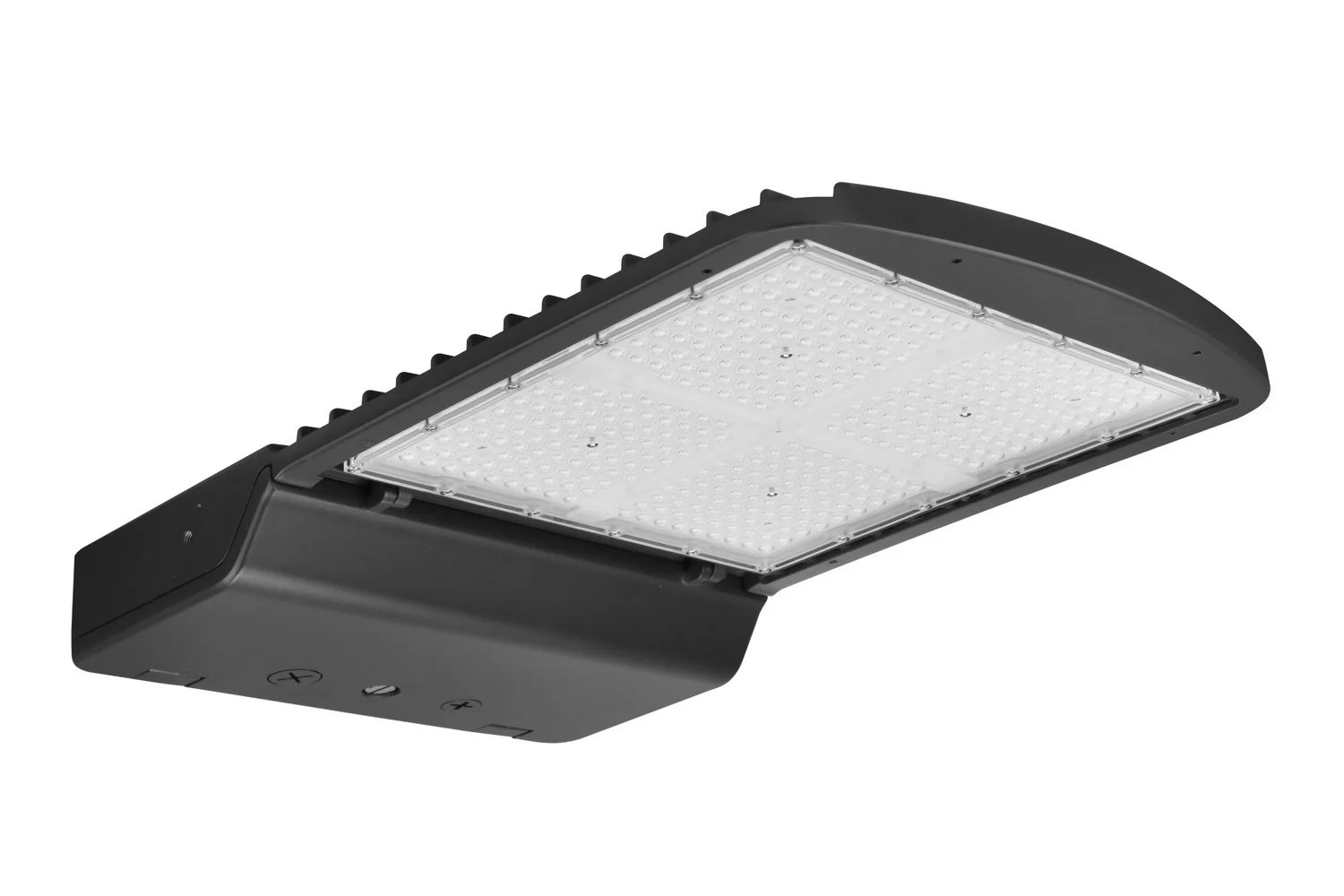

The EiKO AAL1-300 Series is a high-performance architectural LED area light designed for demanding outdoor site and roadway applications. As part of EiKO’s premium AAL1 lineup, it combines high efficacy, robust environmental protection, and flexible optical and control options to simplify both new installations and retrofits.
Key Features and Benefits
- Controls-ready platform with screw-in receptacle supports fast integration of standalone or networked lighting controls.
- PowerSet and FieldCCeT options across the series provide flexible lumen and CCT tuning from one fixture family.
- Rugged outdoor construction with IP65 ingress protection, IK08 impact resistance, and 3G vibration rating for long-term reliability.
- DLC Premium qualification plus UL, FCC, RoHS, and ICES-005 compliance supports rebate eligibility and code confidence.
- Toolless hinged junction box and pre-installed 3.3′ power cord help reduce installation time.
- Backed by a 5-year limited warranty for dependable commercial operation.
Specifications
- Lumen Output: 42,000
- Wattage: 300W
- Voltage: 120-277V or 277-480V
- Color Temperature: 4000K or 5000K
- CRI: >80
- Dimming: 0-10V, dim-to-off
- Efficacy: 140 lm/W
- Distribution Type: Type II, Type III, Type IV, Type V
- Rated Life (L70): 100,000 hours
- Operating Temperature: -40b0C to 50b0C
- Surge Protection: 10kV standard, 20kV optional
- Housing: Bronze powder-coated die-cast aluminum
- Lens: Impact and UV-resistant polycarbonate
Common Uses
Ideal for parking areas, campuses, roadways, streetscapes, airports, automotive dealerships, building facades, entryways, signage, and perimeter security lighting where high output and durable outdoor performance are required.
