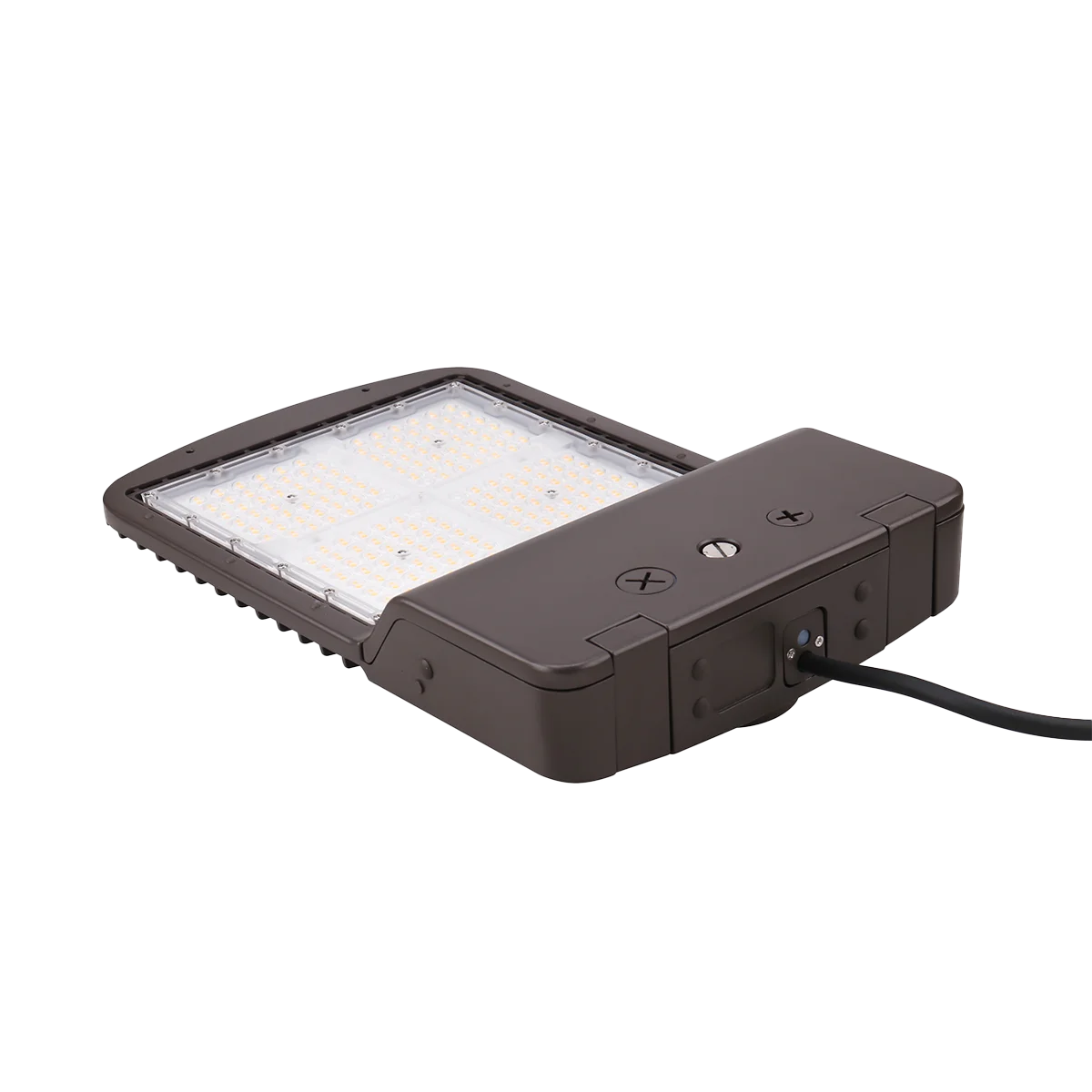

The EiKO AAL1 Series is a high-performance architectural area light designed for demanding outdoor applications where efficiency, durability, and control readiness are essential. Positioned as a versatile site-lighting solution in EiKO’s lineup, it combines robust construction with flexible optical and control options for modern projects.
Key Features and Benefits
- Controls-ready design with screw-in receptacle simplifies future sensor or networked control upgrades.
- DLC Premium qualified performance helps maximize utility rebates and long-term energy savings.
- Outdoor-tough build with IP65 ingress protection, IK08 impact rating, and 3G vibration rating for reliable operation.
- 0-10V dim-to-off capability supports advanced lighting control strategies and reduced operating costs.
- 5-year limited warranty provides added confidence for commercial and municipal installations.
Specifications
- Lumen Output: 21000
- Wattage: 150W
- Voltage: 120-277V, 277-480V
- Color Temperature: 4000K
- CRI: 80+
- Distribution Type: Type V
- Efficacy: 140 lm/W
- Rated Life (L70): 100000 hours
- Power Factor: >0.9
- THD: <20%
- Operating Temperature: -40b0C to 50b0C
- Dimming: 0-10V, dim-to-off
- Surge Protection: 10kV standard (20kV optional)
- Housing: Bronze powder-coated die-cast aluminum
- Lens: Impact and UV-resistant polycarbonate
Common Uses
Ideal for parking areas, roadways, campuses, airports, automotive dealerships, streetscapes, building facades, entryways, signage, and general area security lighting.
