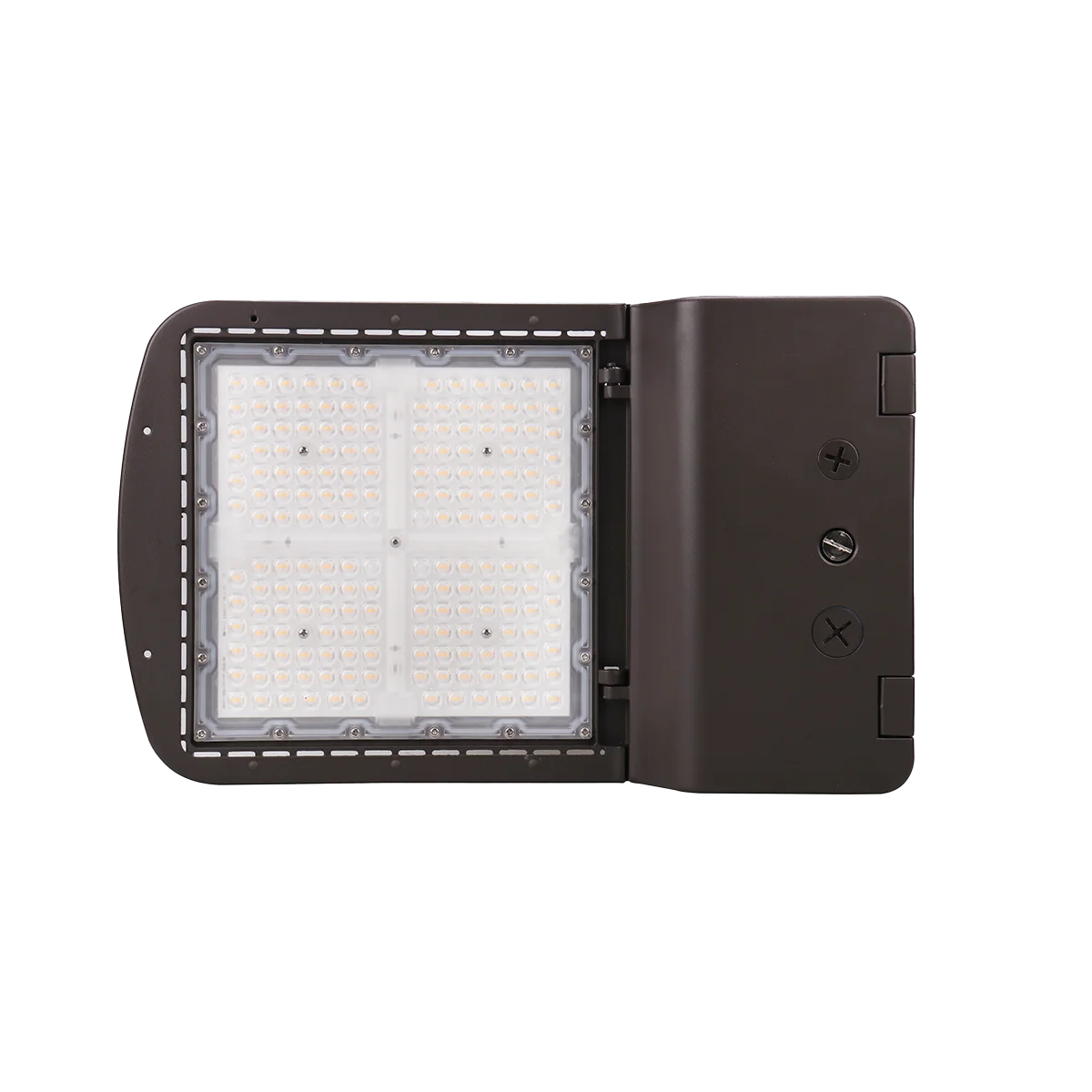

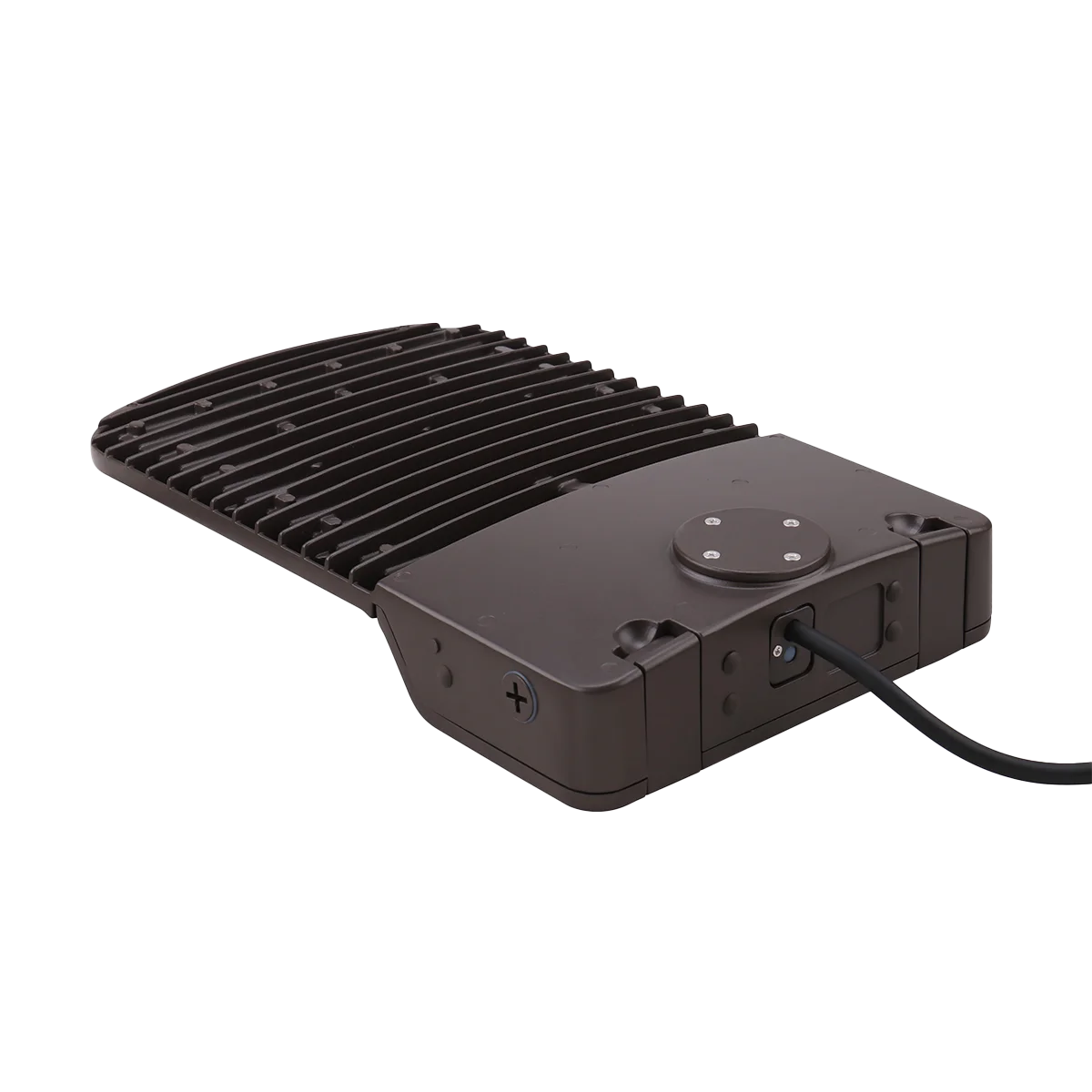

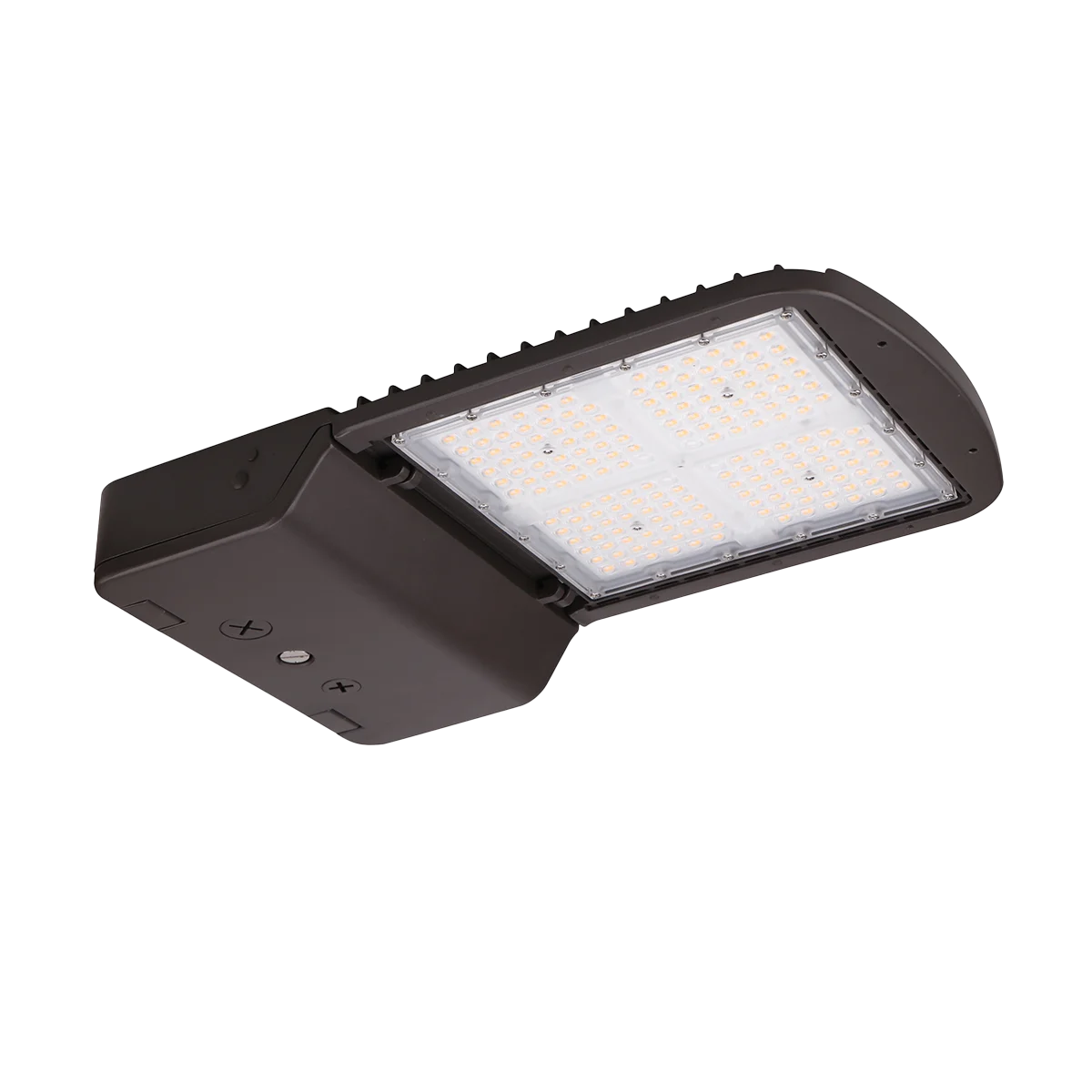

The EiKO AAL1 series is a high-performance architectural area light designed for demanding outdoor site lighting. Built for flexibility, it combines selectable power options, robust environmental protection, and controls-ready functionality in a slim-profile form factor. In EiKO’s lineup, the AAL1 stands out as a versatile solution for both retrofit and new construction projects.
Key Features and Benefits
- PowerSet technology enables field selection of 150W, 130W, or 100W to match light levels and reduce energy use.
- Controls-ready design with screw-in receptacle simplifies future upgrades to photocell or networked controls.
- Durable outdoor construction with IP65 ingress protection and IK08 impact resistance for long-term reliability.
- High efficacy performance up to 140 lm/W helps lower operating costs while maintaining strong illumination.
- Certified for broad project acceptance: UL Listed, DLC Premium, FCC, and RoHS compliant.
- Backed by a 5-year limited warranty for added project confidence.
Specifications
- Lumen Output: 21000|18200|14000
- Wattage: 150W|130W|100W
- Voltage: 120-277V
- Color Temperature: 3000K
- CRI: 80
- Dimming Type: 0-10V
- Frequency (Hz): 50/60
- Power Factor: 0.9
- THD: 20
- Distribution Type: Type V
- Rated Life (70 Hours): 100000
- Max Ambient Temperature: 50°C
- Housing Material: Die-cast aluminum
- Lens Material: Polycarbonate
- Finish / Color: Bronze
- IP Rating: IP65
- IK Rating: IK08
Common Uses
Ideal for parking areas, roadways, campuses, automotive dealerships, airports, streetscapes, building facades, entryways, and general area security lighting where dependable, high-output illumination is required.
