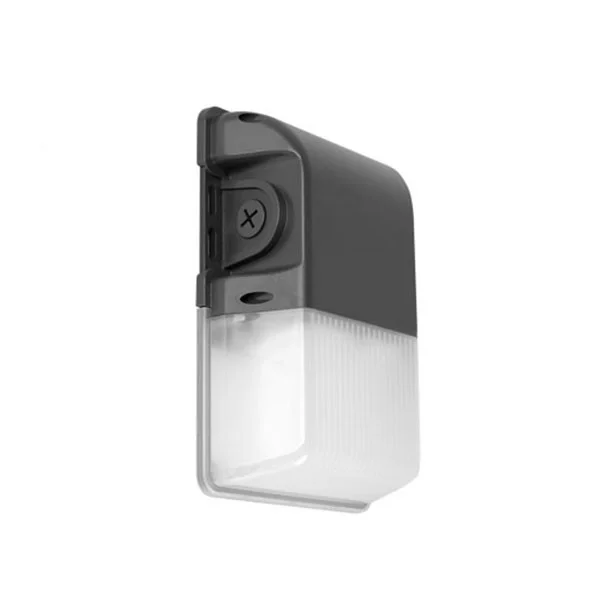

Economy Wall Pack with selectable color temperatures of 3000K, 4000K, and 5000K, providing adjustable lumen outputs ranging from 1,900 to 3,300 lumens.
Key Features and Benefits
- cULus listed for wet locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F).
- IP65 rated for ingress protection.
- DLC premium approved.
- Complies with FCC Part 15, class B.
- Surge protection = 4kV.
- 5-year warranty on all electronics and housing.
- LED color maintenance <0.003 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- Provides a range of 1,900 to 3,300 nominal lumens and 126 to 145 nominal lumens per watt (lm/W).
- 0-10vdc dimming drivers are standard.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index (Ra) > 80.
- Integral photocell is standard.
- Cast aluminum housing with dark bronze, powder coat finish.
- Diffused polycarbonate lens.
- One ½” NPT threaded opening.
- Easy installation in new construction or retrofit applications.
Specifications
- Selectable color temperatures: 3000K, 4000K, 5000K
- Lumen outputs: 1,900 to 3,300 lumens
- Efficacy: 126 to 145 lm/W
- Power factor: > 0.90
- Total harmonic distortion: < 20%
- Color rendering index (Ra): > 80
- Voltage: 120-277 AC (50-60Hz)
- Weight: 1.5 lbs
Common Uses
Ideal for outdoor wall-mounted applications, including building perimeters, entrances, and pathways.
