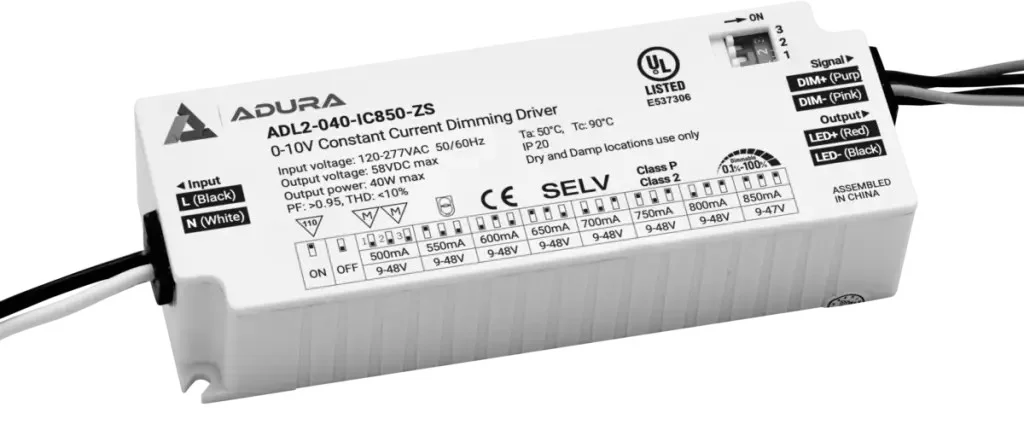

40W Constant Current Isolated LED Driver with selectable 500-850mA, 120-277VAC input, 0-10V/PWM dimming, and multiple protections.
Key Features and Benefits
- Single channel isolated output with current selectable by DIP switch
- 3-in-1 dimming mode: 0-10V active signal, adjustable resistance, PWM
- Universal input voltage of 120~277VAC
- High PF with correction
- Short circuit, overload, over-voltage protections
- MCU dimming control for better dimming performance
- Multiple output current selection for better compatibility
- Convenient form factor with small dimensions and lightweight
- 5 years warranty
Specifications
- Input Voltage: 120-277 V
- Frequency: 50/60Hz
- Output Type: Constant Current
- Output Power (max): 40 W
- Output Current: 500-850 mA
- Output Voltage: 9-48 V
- Dimensions: 4.76×1.73×1.04”
- Dimming: 0-10V / PWM
- IP Rating: IP20
Common Uses
Ideal for commercial and residential lighting applications requiring efficient and reliable LED driver solutions.
