CDL 10″ Low Wattage, Field Adjustable

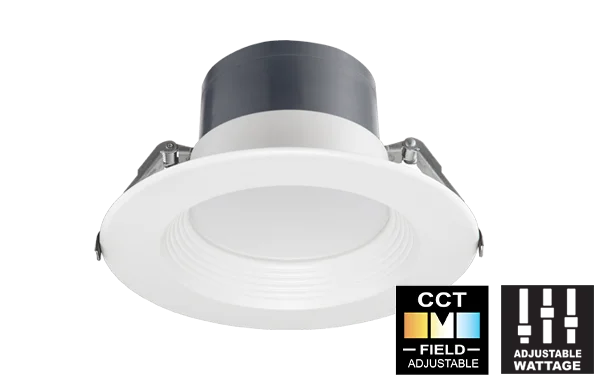

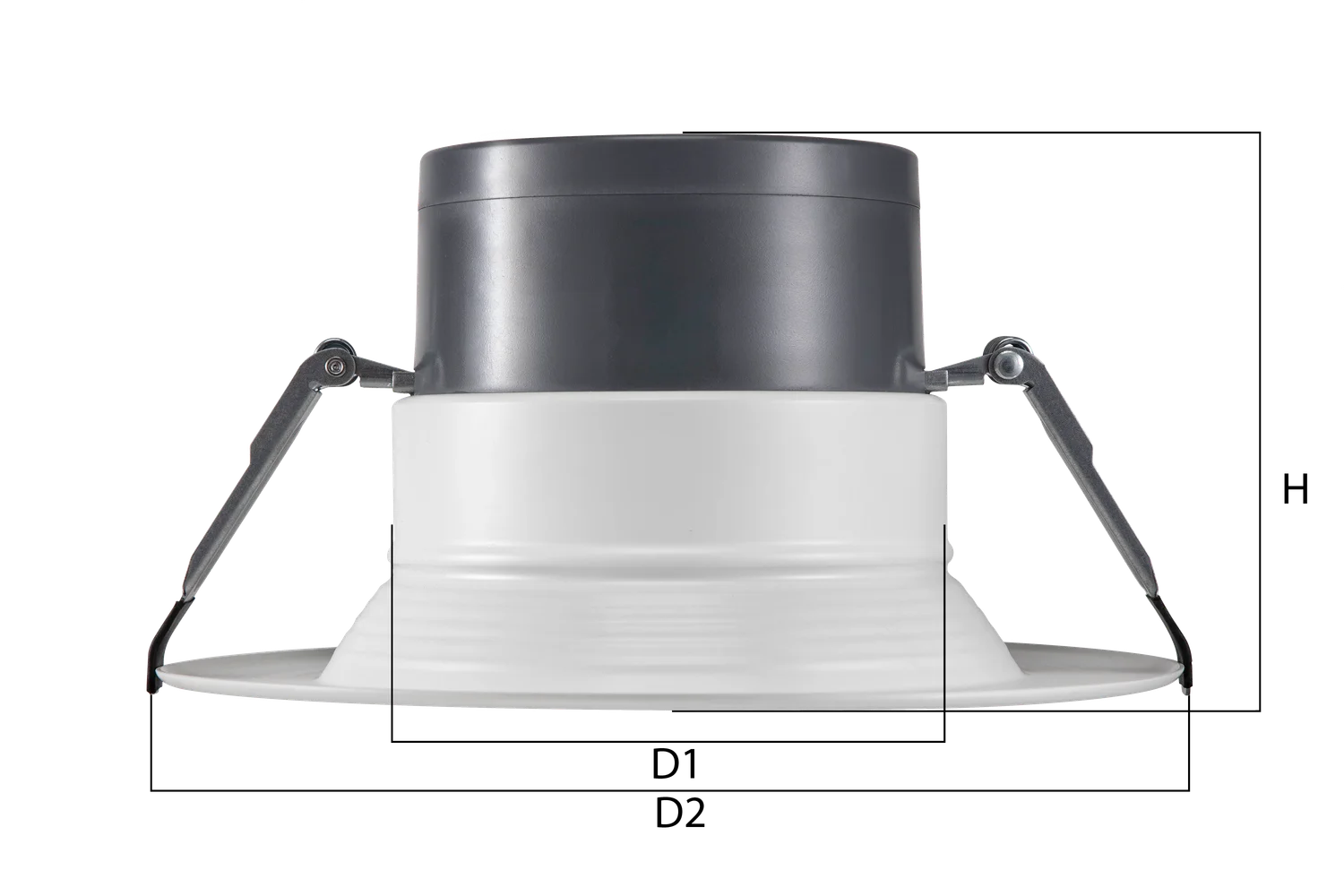

The CDL Series by Aleo Lighting is a versatile and energy-efficient solution for commercial downlight applications. Featuring the CDL-10LE-UX/9CT model, this recessed downlight offers field-adjustable lumen output and color temperature, eliminating the need for a can during installation. It is ideal for both new construction and retrofit projects, replacing traditional CFL and HID downlights.

Key Features and Benefits

• Field Adjustable lumen output and color temperature
• Integrated driver with selectable lumen and CCT
• Spring-action clips and flex conduit for easy installation
• ETL Listed and ENERGY STAR certified
• Continuous 0-10V dimming
• Universal voltage input (120V-277V)
• Rated life of 50,000 hours with a 7-year limited warranty

Specifications

• Input Voltage: 120V-277V
• Wattage: 21W, 30W, 38W
• Delivered Lumens: 2000lm to 3200lm
• Color Temperature: 3000K, 3500K, 4000K
• CRI: 90+
• Efficacy: 88-100 lm/W

Common Uses

Perfect for commercial, retail, educational, hospitality settings, and covered outdoor ceilings. Suitable for both retrofit/remodel and new construction projects.
