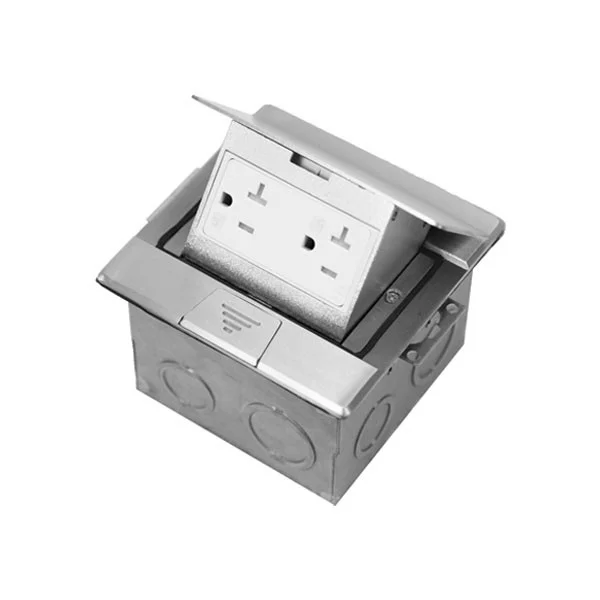

Brass Square Pop-up Floor Box Assembly

Brass square  pop-up floor box assembly with 20A tamper-weather-resistant decorator receptacle, available in brass or nickel-plated brass finish, for use with carpet and wood fl oors. also great for counter-top applications, 2 years limited warranty.
Minimum order qty. of 10 pcs.
DESCRIPTION
The Pop-up Floor Box Assembly with 20A Decorator Duplex T&WR Receptacle is used for carpet and wood floors. Pop-up covers provide easy access to power and can be snapped closed when not in use. Kit assembly includes a metal fl oor box, a decorator duplex T&WR receptacle and a cover.
FEATURES

20A 125V Decorator Duplex Tamper & Weather Resistant Receptacles.
For use with carpet and wood fl oors. Also great for counter-top applications.
Steel floor box must be fl ush with sub-wood or carpeted floor.
Easy connection wiring accepts #12-10 AWG stranded and solid copper wire.

TESTING & CODE COMPLIANCE

2011 NEC Article 406.12 for tamper-resistant receptacles.
2011 NEC Article 314.27 for fl oor boxes.
All receptacles are UL listed.

SPECIFICATIONS
COVER
Cover Material: Brass(C) or Nickel-Plated Brass(S)Cover Type: Square
COVER SIZE
961241: 4-3/4” (120mm) x 4-3/4” (120mm)Receptacle Rating: 20A 125VAC
BOX
Box Type: FB-09 1-Gang Box (4”x4”x3”)Box Material: Pre-Galvanized SteelKnockout Size: ½” and ¾”Adjustable Height: Up to 1” depthWarranty: 2 Years
