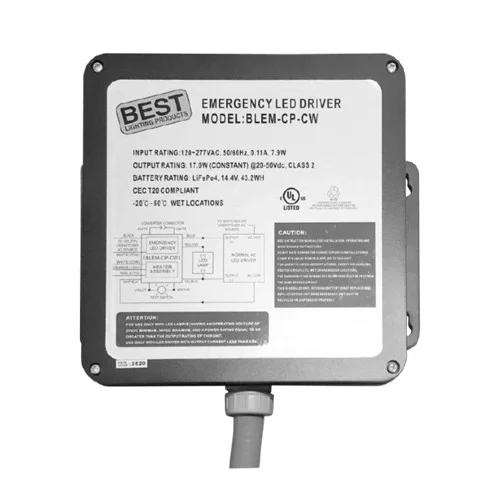

17-watt outdoor-rated emergency LED driver with selectable color temperature, designed for canopy lights, garage lights, and other outdoor fixtures.
Key Features and Benefits
- Works with or without an AC Driver to convert new or existing LED fixtures into unobtrusive emergency lighting.
- Provides constant power output to the load during emergency mode operation.
- Can be operated as NORMALLY-ON, NORMALLY-OFF or SWITCHED LOAD.
- Ideal for use with canopy lights, garage lights, and any outdoor fixture that needs emergency lighting.
- Universal 120-277V, 50/60 Hz input.
- Charge/Power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- Long-life, maintenance-free, rechargeable NiCad battery.
- Output short/overcurrent protection: Electronic limiting, with normal operation resuming upon removal of fault.
- 90-minute minimum emergency operating time over full temperature range.
- Output classification: Class 2 Compliant.
- Surge protection: Per C62.41 (TVS).
- Input overcurrent protection: Fusible link.
- 24-hour maximum battery recharge time.
- Low-profile, unobtrusive design.
- LED illuminated and remote-mounted test switch.
- Sealed and gasketed, powder-coated, die-cast aluminum housing.
- Provided with 2-ft flex conduit and conduit hub.
- Suitable for installation as top, or side mount of the LED fixture.
Specifications
- Output Power: 17.0 Watts
- Input Voltage: 120-277V, 50/60 Hz
- UL Listed for factory or field installation.
- Suitable for wet locations (-20°C – 50°C).
- Five-year warranty on all electronics and housing.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State codes.
- Certified to CEC under Title 20 regulations.
Common Uses
Ideal for use with canopy lights, garage lights, and any outdoor fixture that needs emergency lighting.
