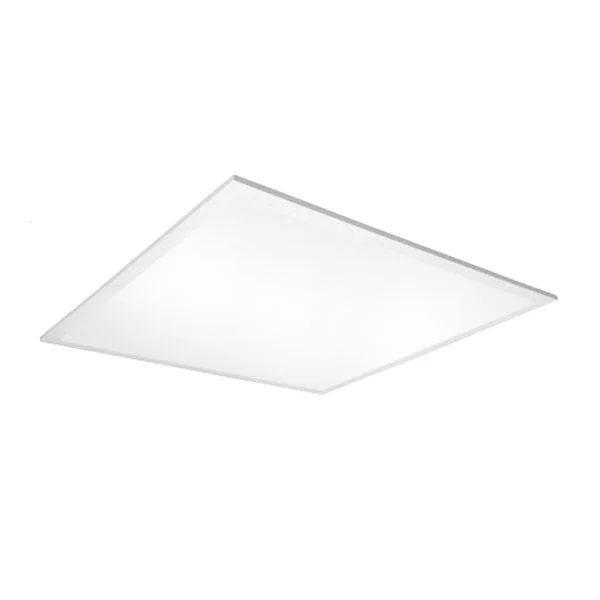

2×2 back-lit LED panel with selectable color temperatures (3500K, 4000K, 5000K) and adjustable lumen outputs (up to 4000 lumens). Includes emergency driver with 650 lumens.
Key Features and Benefits
- Field selectable 3500K, 4000K, and 5000K color temperatures
- Selectable lumen outputs ranging from 2,700 to 4,000 nominal lumens
- Long-life LEDs provide 144,000 hours of operation (L70) and 44,000 hours (L90)
- Flicker-free per IEEE1789-2015
- Surge immunity protection = 1kV
- 5-year warranty on all electronics and housing
- Universal 120-277 AC voltage (50-60Hz)
- 0-10vdc dimming drivers
- Power factor > 90
- Total harmonic distortion < 20%
- Color rendering index > 80
- Aluminum frame and steel housing backplate
- PMMA LED lenses for optimal light distribution, efficiency, and longevity
- Easy installation in new construction or retrofit
- Standard earthquake clips for secure installation in grid ceilings
- Surface mount, flange, and cable mounting kits
- Emergency driver with 650 lumens
Specifications
- Weight: 4 lbs
- Dimensions: 23.7″ x 23.7″ x 1.5″
- Efficacy: 130 lm/W
- Input Wattage: 32W
- DLC premium approved
- FCC Part 15, class B compliance
- Suitable for ambient temperatures from -20°C to 40°C (-4°F to 104°F)
- cULus for damp locations and insulated ceilings (Type IC-rated)
Common Uses
Ideal for office spaces, retail environments, educational facilities, and other commercial settings where uniform illumination and energy efficiency are crucial.
