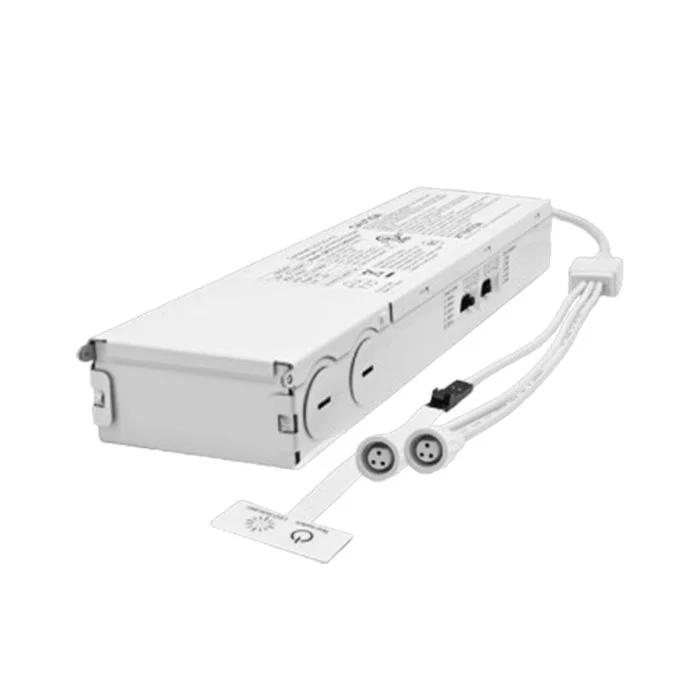

The ATG Emergency Driver Series model EMCTO3-18-MS5C5-D1 is a compact emergency backup solution designed for remote J-box downlights. It combines normal driver support and emergency conversion in one unit to keep critical spaces illuminated during outages. Built for commercial reliability, it delivers dependable 90-minute emergency operation with automatic recharge.
Key Features and Benefits
- 2-in-1 emergency converter and driver support simplifies fixture integration and wiring.
- Maintains lighting for at least 90 minutes during power loss for life-safety readiness.
- Supports both Triac and 0-10V dimming systems for broad control compatibility.
- Long-life LiFePO4 battery chemistry with automatic return to charging mode after power restoration.
- Visual red status indicator provides quick charging/discharge condition checks.
- UL certified design with a 5-year warranty for dependable commercial performance.
Specifications
- Input Voltage: 120-347V
- Frequency: 50/60Hz
- Input Power (Charging): <2.5W
- Battery Capacity: 1600mAh
- Emergency Time: 90 minutes
- Initial Charge Time: 24 hours
- Emergency Power: 3.5W
- Adaptive Power: 24W Max
- Output Current: 160mA|200mA|240mA|280mA|320mA
- Output Voltage Range: 30-50V
- CCT Compatibility: 2700K|3000K|3500K|4000K|5000K
- Operating Temperature: 0b0C to 50b0C (32b0F to 122b0F)
- Dimensions: 9.72″ x 2.76″ x 1.38″
- Net Weight: 0.6kg
Common Uses
Ideal for hospitals, offices, schools, universities, shopping malls, and other public or commercial buildings using remote J-box downlights in dry or damp locations.
