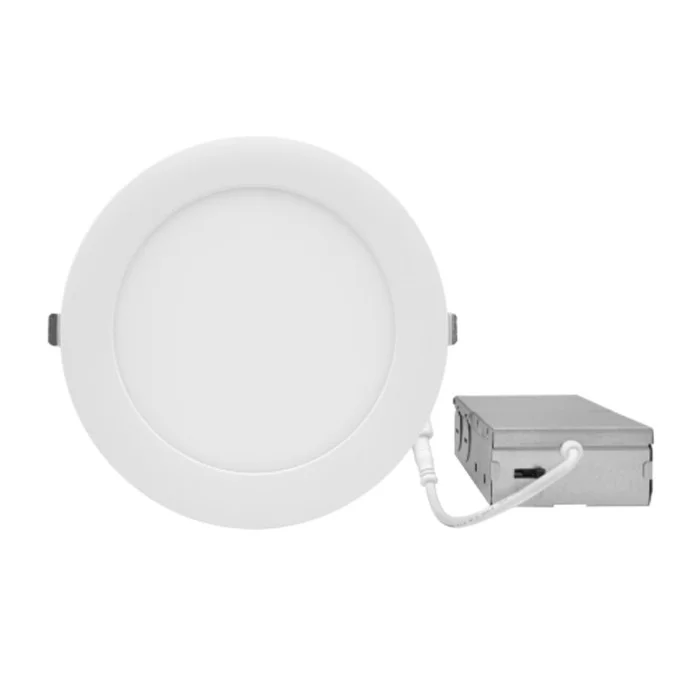

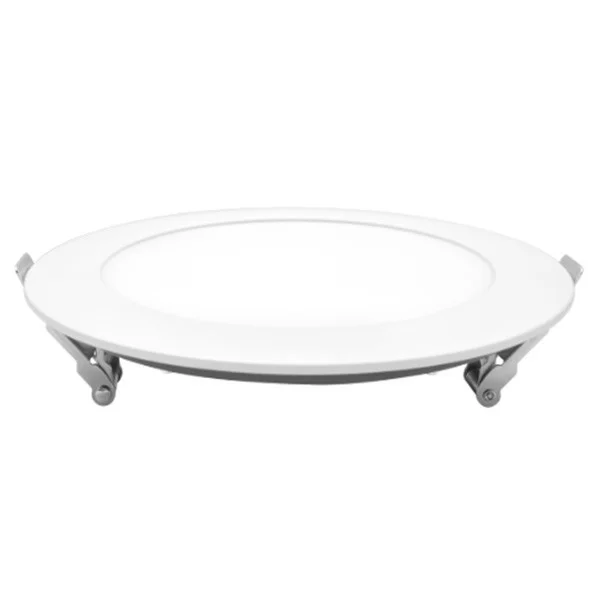

The ATG Electronics EDF6-15W-T1 is a 6-inch fire rated LED recessed downlight designed for safety, versatility, and high performance. As part of ATG’s eLucent series, this fixture stands out for its ultra-thin edge-lit design and selectable color temperature, making it a flexible solution for modern lighting needs.
Key Features and Benefits
- Selectable color temperature: 2700K, 3000K, 3500K, 4000K, or 5000K for tailored ambiance
- Adjustable lumen outputs up to 1,650lm for optimal brightness
- Ultra-thin edge-lit construction for low-profile installations
- Durable steel housing with 2-hour fire resistance (UL 263 certified)
- High color rendering (90+ CRI) for vibrant, true-to-life colors
- Dimmable to 5% with TRIAC dimmers for precise lighting control
- IC-rated and air-tight for direct contact with insulation
- Wet location rated, EnergyStar listed, and CA Title 24 compliant
- L70 lifetime over 100,000 hours for long-lasting performance

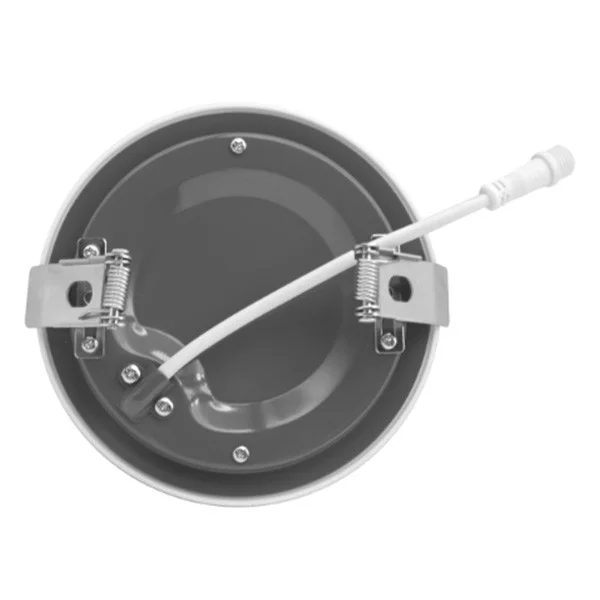

- Easy installation with spring-loaded retention tabs and remote driver box
Specifications
- Wattage: 15W
- Lumens: 1,365lm (2700K) | 1,395lm (3000K) | 1,545lm (3500K) | 1,650lm (4000K) | 1620lm (5000K)
- Voltage: 120V
- Color Temperature: 2700K|3000K|3500K|4000K|5000K (selectable)
- CRI: >90
- Finish: White trim, red fire-rated backside
- Dimensions: 6″ aperture
Common Uses
Ideal for multi-residential buildings, classrooms, offices, lobbies, restrooms, retail spaces, medical facilities, libraries, meeting rooms, dining areas, airports, dealerships, hallways, and stairwells.
