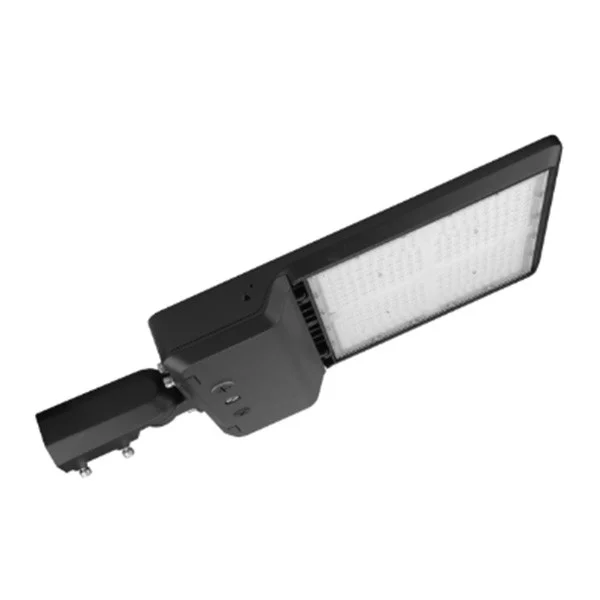

The ATG Electronics ARCHER G2 (AR2 series) is a high-performance architectural area light and floodlight combination designed for demanding outdoor applications. This configurable fixture combines selectable power and CCT in one platform, making it a versatile solution across parking, roadway, and site lighting projects. As part of ATG’s premium outdoor lineup, it delivers strong efficacy, robust construction, and advanced control readiness.
Key Features and Benefits
- Selectable output platform supports 300W, 240W, or 200W settings for flexible light levels from one fixture.
- Field-adjustable CCT options (3000K/4000K/5000K) simplify inventory and on-site tuning.
- Durable die-cast aluminum housing with corrosion-resistant finish supports long-term outdoor reliability.
- 0-10V dimming (0-100%) with 12V AUX tap enables advanced control integration.
- Pre-installed sensor receptacle supports plug-and-play occupancy sensors and photocell options.
- Certified for demanding projects with UL Listed, DLC Premium, and Title 24 compliance; backed by a 10-year warranty.
Specifications
- Lumen Output: 45227
- Wattage: 300W|240W|200W
- Voltage: 347-480V
- Color Temperature: 4000K
- Distribution Type: Type III
- Efficacy (lm/W): 149
- Operating Temperature: -30°C to 50°C
- IP Rating: IP65
- BUG Rating: B5-U3-G5|B4-U3-G4|B3-U3-G3
- Fixture Dimensions: 18.8″ x 13.1″ x 2.99″
Common Uses
Ideal for walkways, roadways, parking lots, auto dealerships, recreational venues, and general commercial outdoor areas requiring dependable, high-output illumination with configurable optics and controls.
