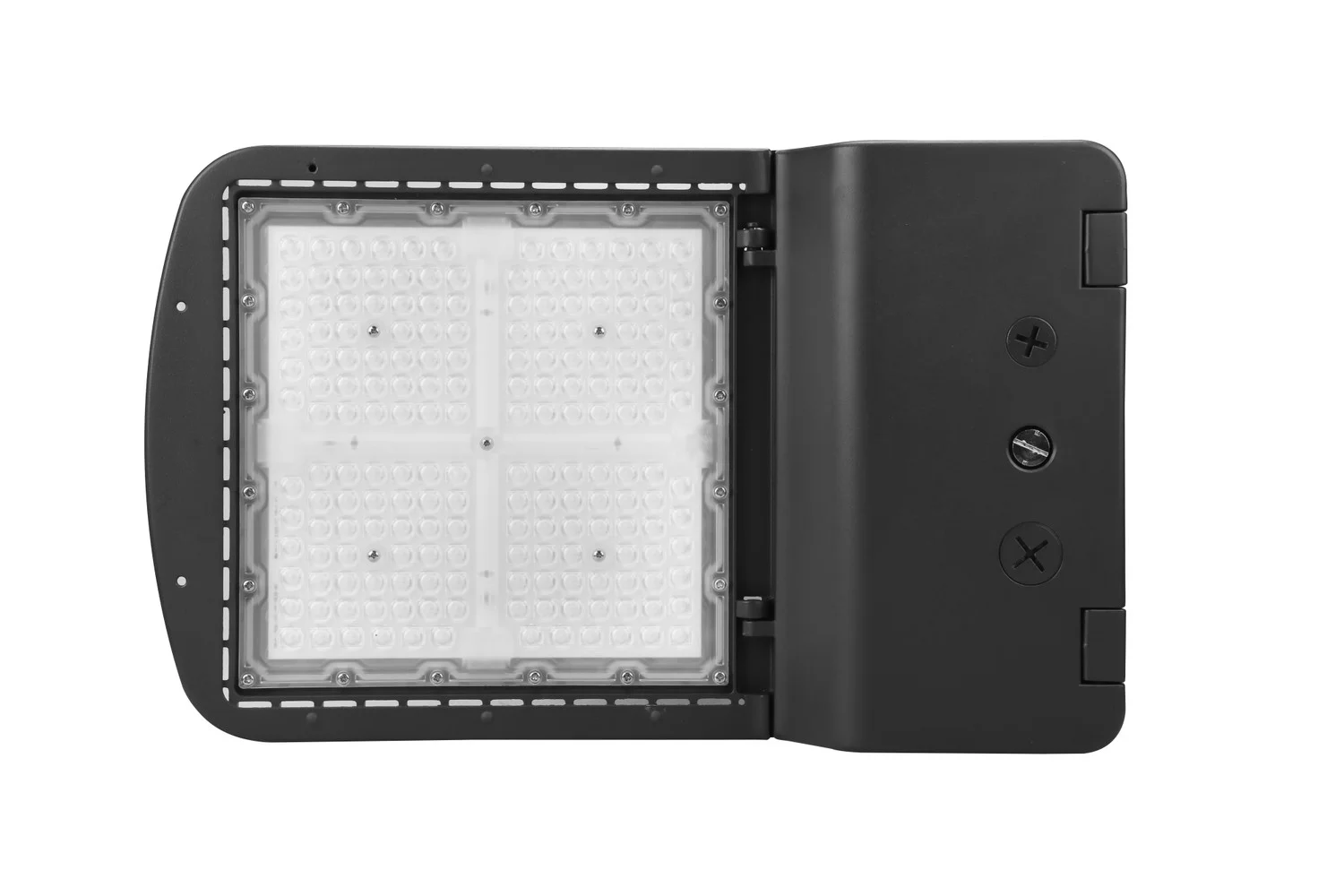

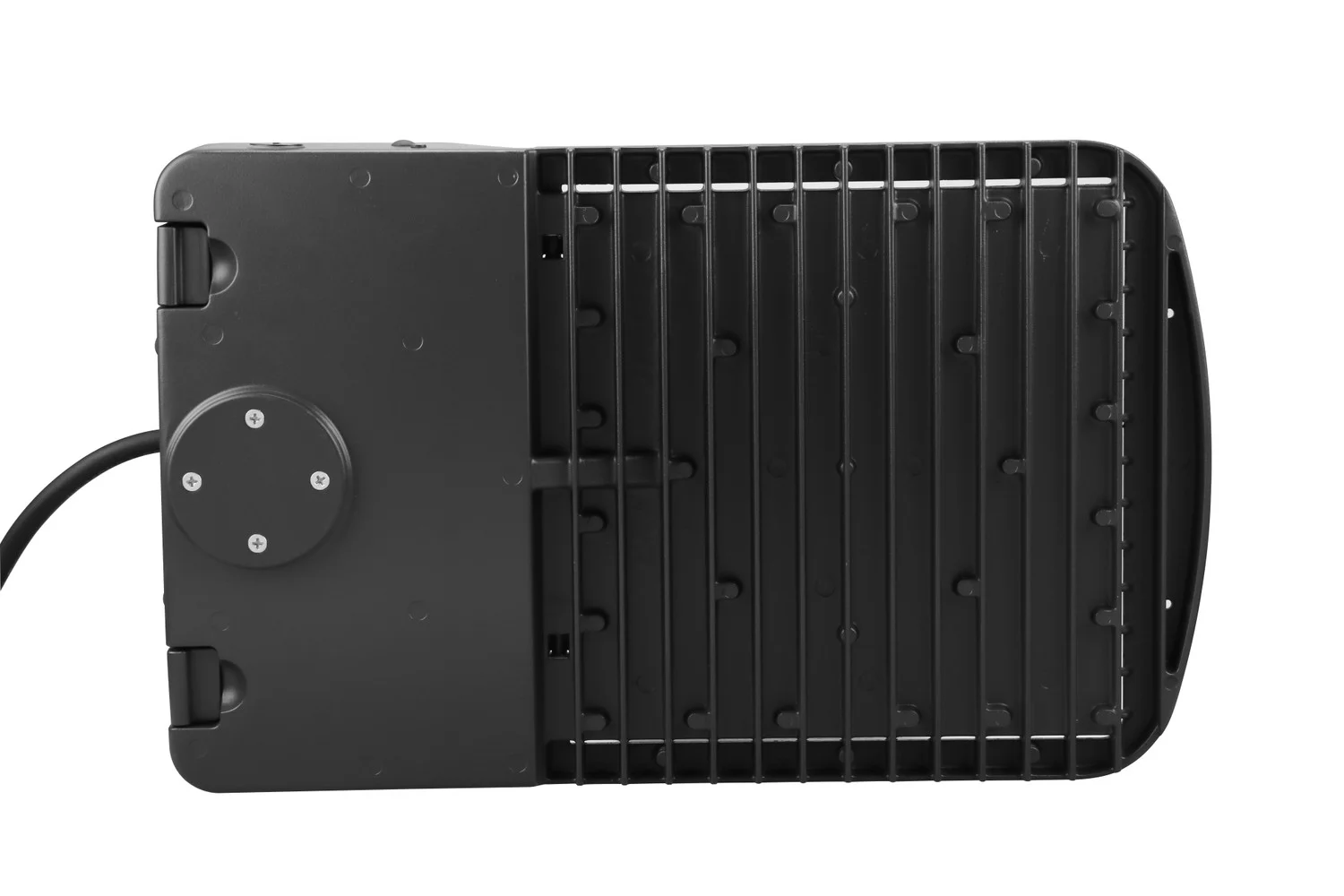

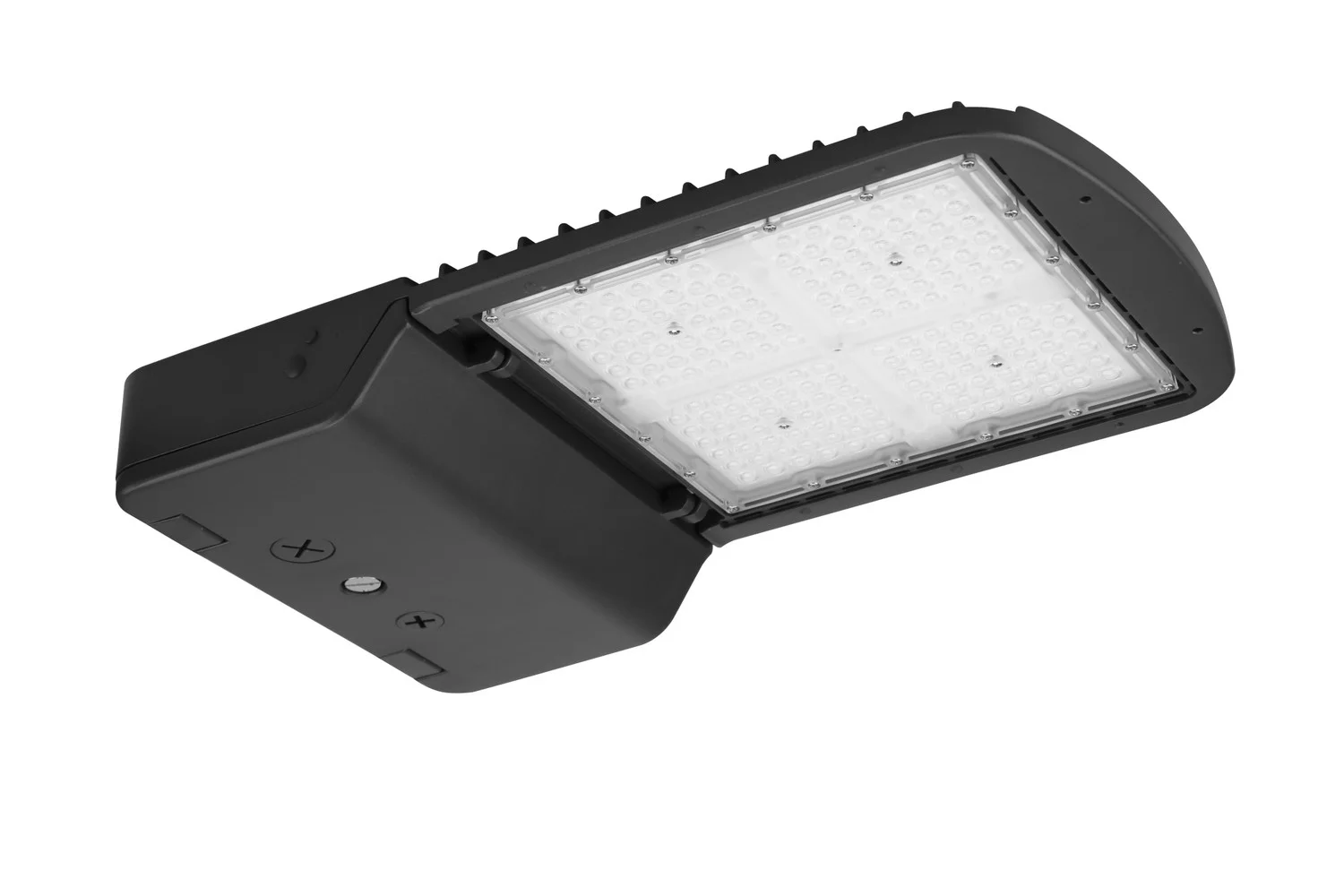

A versatile area light with selectable 100/80/60W power and 4000K color temperature, offering up to 14,000 lumens.
Key Features and Benefits
- Architectural thin profile for area light applications
- Controls Ready with screw-in receptacle for standalone sensors or networked lighting controls
- NEMA 7-pin photocell receptacle available by factory modification
- Multiple mounting options for versatile use
- Hinged toolless access junction box for easy installation and maintenance
- Pre-installed 3.3ft (1m) power cord
- PowerSet feature allows for multiple lumen stops out of the box
- FieldCCeT feature provides multiple color temperature settings in one fixture
Specifications
- High Efficacy: up to 140 lm/W
- Available in fixed wattage models: 150, 200, 240, 300W and PowerSet models: power-selectable 100/80/60W
- CRI: >80
- Distribution Types: T2, T3, T4, T5
- Estimated L70: 100,000 Hours
- Input voltage: 120-277V
- 0-10V dimming, dim-to-off
- Surge Protection: 10kV included, 20kV (optional)
- Power factor: >0.9
- THD: <20%
Common Uses
Parking Areas, Automotive Dealerships, Roadways, Campuses, Streetscapes, Airports, Area security lighting, Building facades, Signs, Entryways
