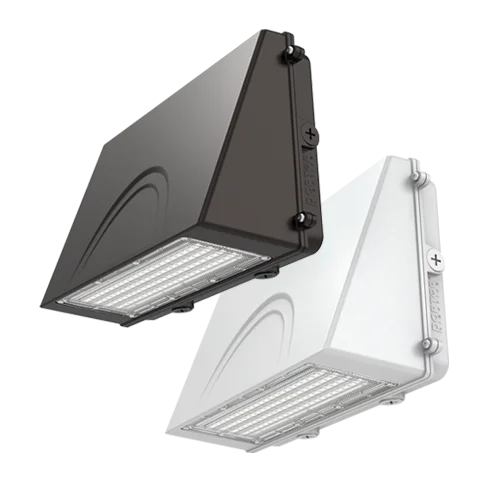

The Portor PT-WPF Series is a full cut-off wall mounted luminaire designed with a slim profile that blends seamlessly into its environment. This series is significant in Portor’s lineup for its stylish finish and optimal lighting performance, available in power selectable sizes with wattages from 36W to 120W and integrated CCT selectable technology.
Key Features and Benefits
- Slim profile design with stylish finish
- Selectable color temperature: 3000K, 4000K, 5000K
- Adjustable lumen outputs up to 8856 lm at 60W
- High efficacy of 157 lm/W
- Durable die-cast aluminum housing with powder coating
- Weather and dust resistant with IP65 rating
- 0-10V dimmable with universal voltage (120V-277V)
- Energy savings over 50% compared to traditional fluorescent fixtures
- UL Listed, DLC Premium Listed
- 5-year limited warranty, 50,000 hours lifespan
- Includes EM battery for emergency lighting
Specifications
- Wattage: 60W
- Delivered Lumens: 8856 lm
- Efficacy: 157 lm/W
- Voltage: 120V-277V
- Color Temperature: 3000K/4000K/5000K
- CRI: 82
- Dimmable: 0-10V
- IP Rating: IP65 Wet Location
- Working Temperature: -40°F ~ 113°F
- EM Working Temperature: -32°F ~ 122°F (with EM option)
Common Uses
Ideal for warehouses, walkways, building entryways, parking lots, retail exteriors, and shopping malls.
