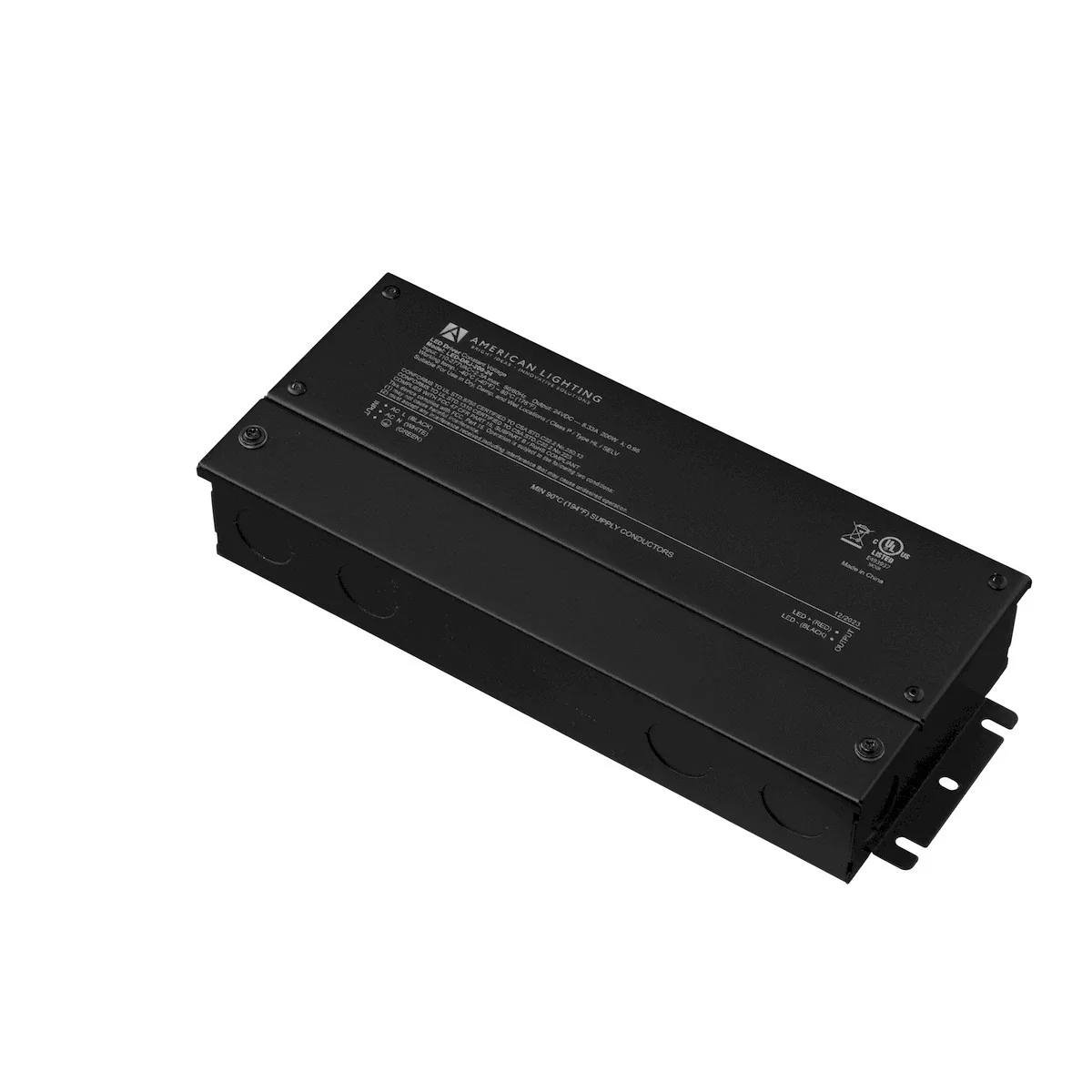

The American Lighting LED-DRJ Series 200W Constant Voltage LED Driver delivers reliable 12V DC power for your LED lighting systems. Designed for both indoor and outdoor use, this non-dimmable driver features a slim, compact aluminum housing with integrated junction box and wet location rating, making it a robust choice for demanding environments.
Key Features and Benefits
- Delivers up to 200W of constant 12V DC output for high-power LED applications
- Universal 100-277VAC input for versatile installation
- Non-dimmable design, perfect for installations where primary side dimming isn’t required
- Integrated protections against short circuit, over-current, over-voltage, and over-temperature

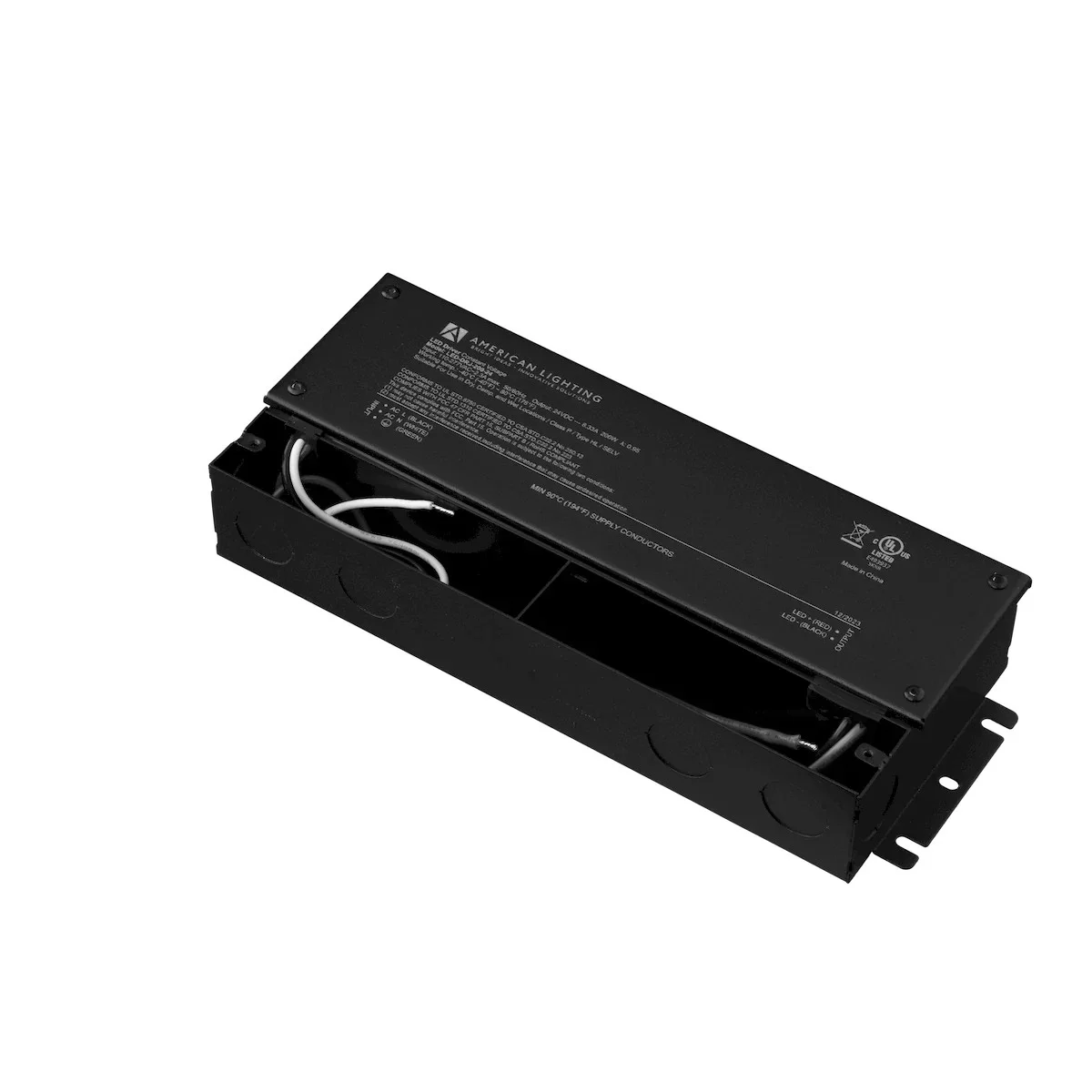

- Durable, slim aluminum housing with integrated wiring compartment for easy installation
- Wet location rated for reliable outdoor or indoor use
- High efficiency (>88%) and power factor (0.95) for energy savings
- cULus Listed, Class 1, Class P, Type HL, FCC compliant
Specifications
- Input Voltage: 100-277VAC
- Output Voltage: 12VDC
- Max Load: 200W
- Minimum Load: 30W
- Rated Current: 16.66A @ 12VDC
- Efficiency: >88%
- Power Factor: 0.95
- Dimensions: 10.26″ L x 4.17″ W x 1.93″ H
- Operating Temp: -40°F to 140°F (-40°C to 60°C)
- Wet location rated
Common Uses
Ideal for powering LED tape lights, linear lighting, signage, architectural lighting, and other 12V DC LED systems in both indoor and outdoor environments.
