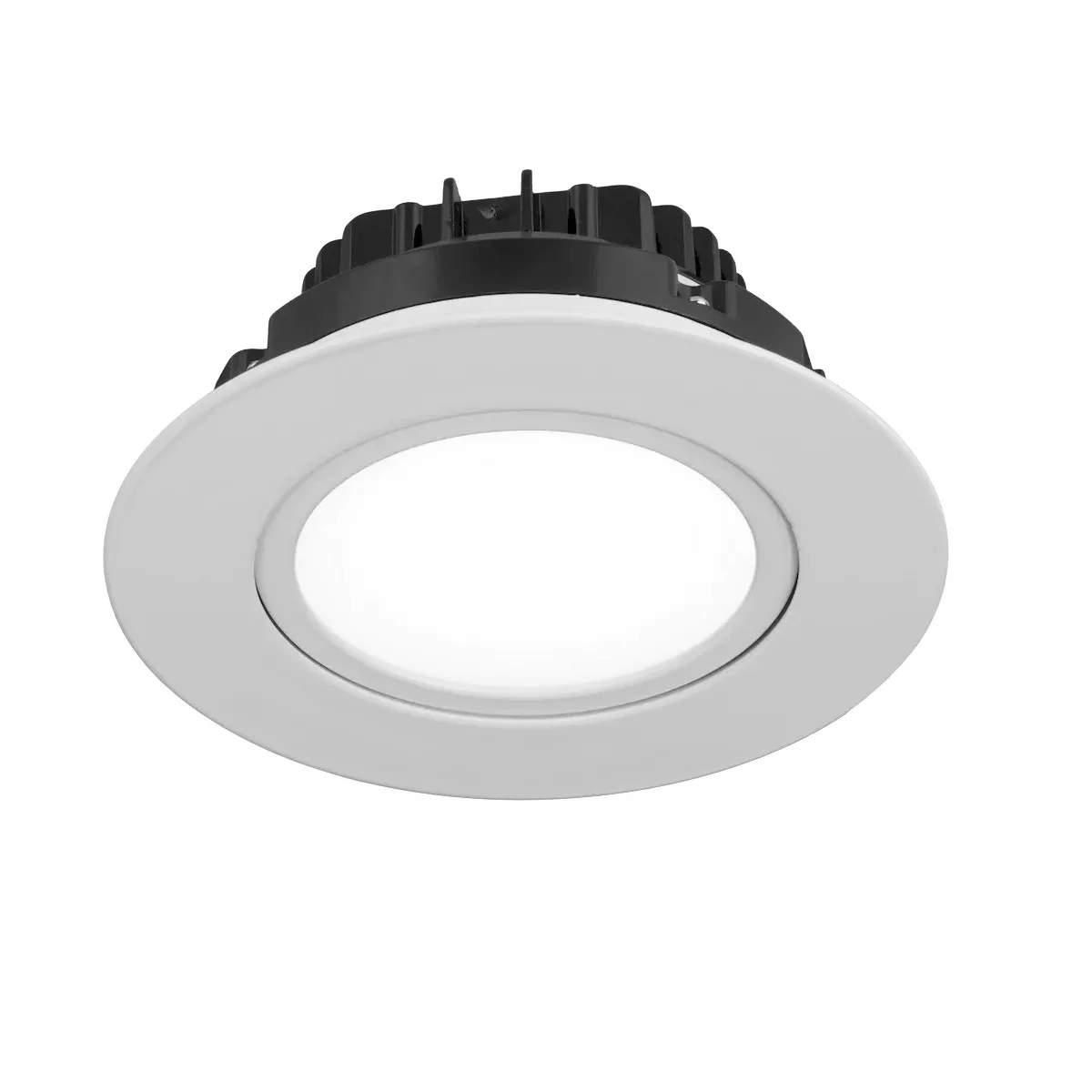

The American Lighting DIP 360 Gimbal is a versatile recessed downlight designed for directional accent and general illumination in one compact fixture. As part of the DIP gimbal series, it combines field-selectable color temperature with smooth aiming flexibility, making it a practical choice for both new construction and remodel projects.
Key Features and Benefits

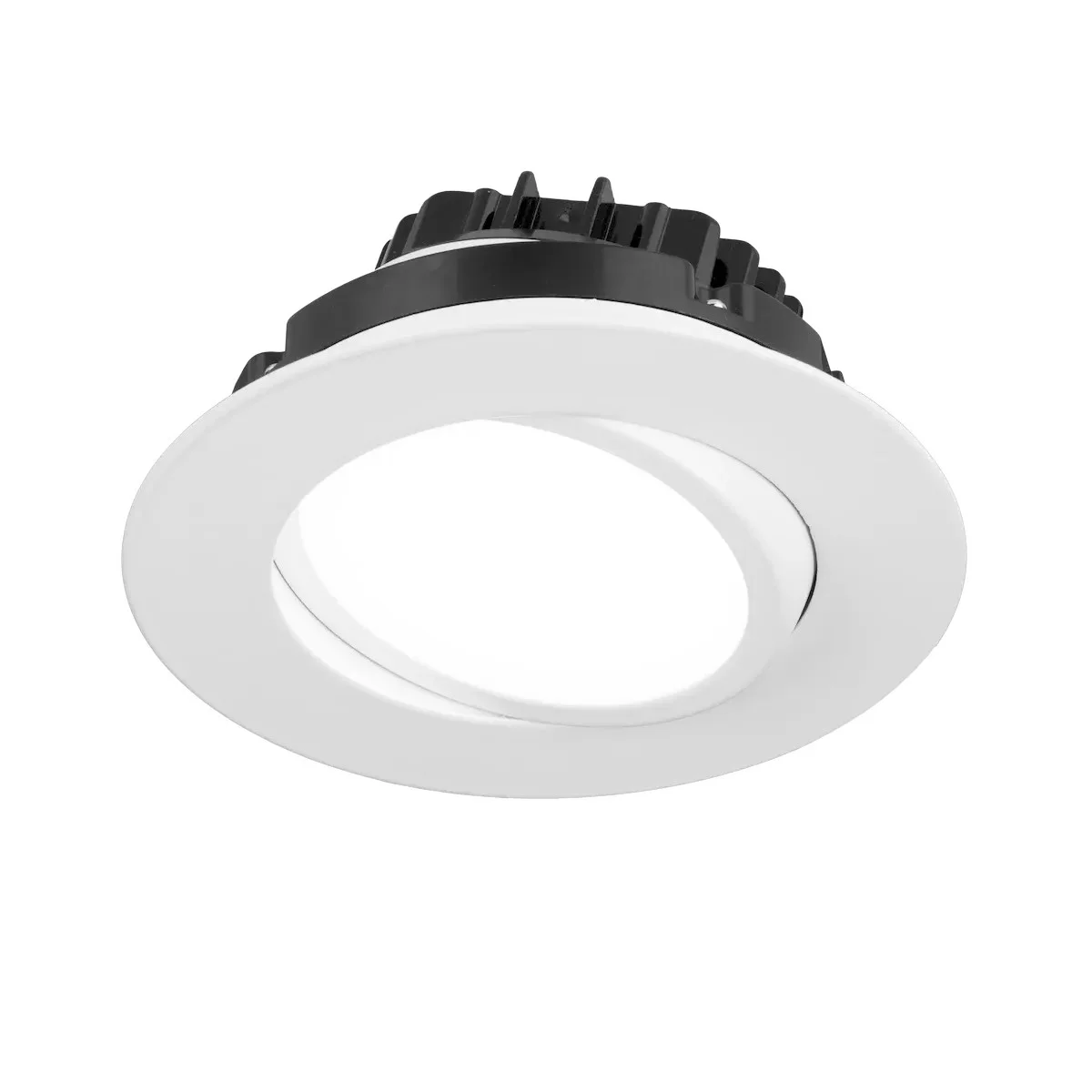

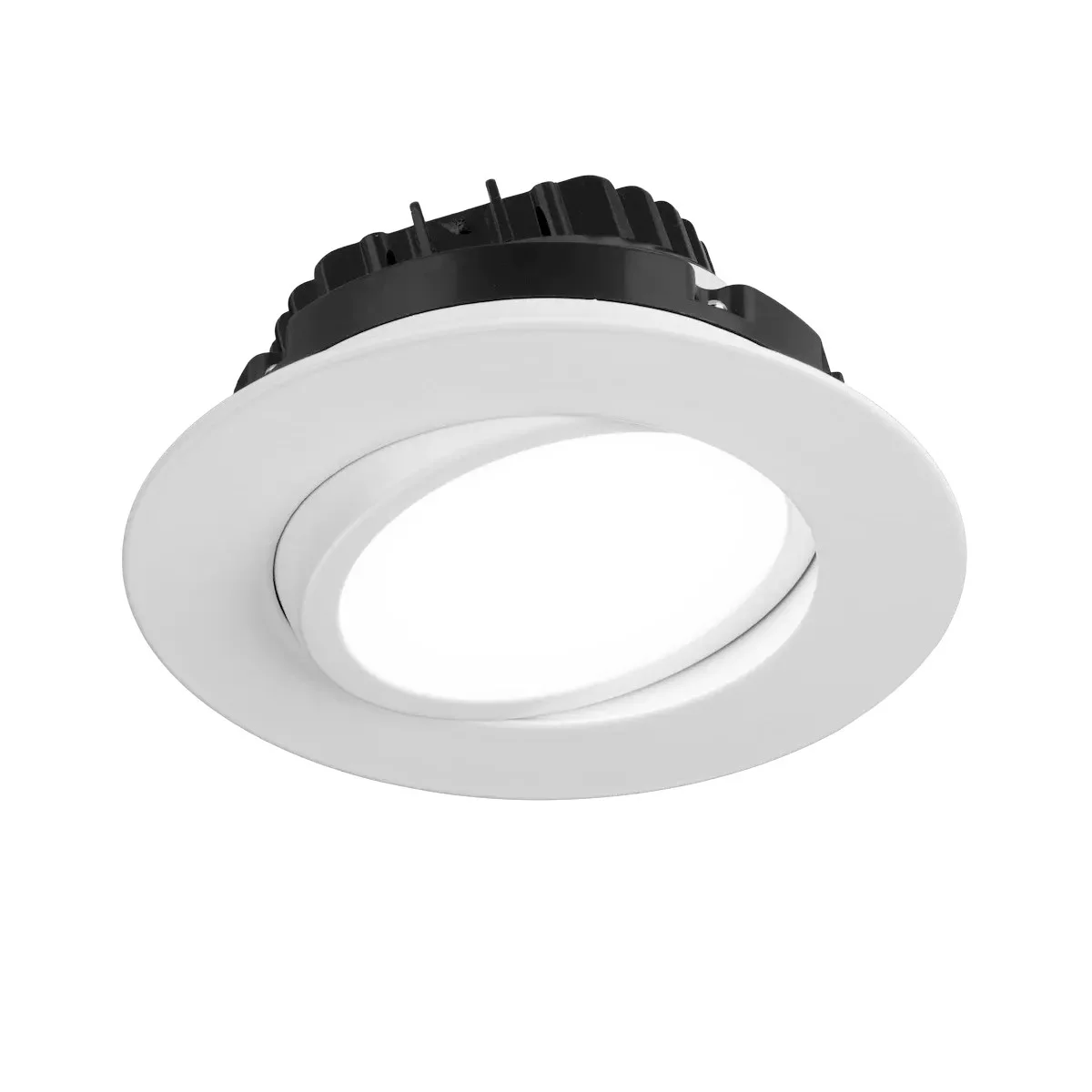

- 360° gimbal aiming helps direct light exactly where it is needed for task, accent, or ambient lighting.
- Selectable 5CCT tuning (2700K to 5000K) allows quick in-field color adjustment to match changing interiors.
- TRIAC dimming compatibility supports smooth light control for comfort and energy savings.
- Type IC construction and wet-location listing expand installation options in insulated ceilings and moisture-prone areas.
- ENERGY STAR and JA8 compliant design supports code-driven and efficiency-focused projects.
- Backed by a 5-year limited warranty for added long-term confidence.
Specifications
- Size: 6″
- Input Voltage: 120V AC
- Power: 20W
- Lumen Output: 1320|1365|1395|1500|1440
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- CRI: 90+
- Beam Angle: 110°
- Operating Temperature: -20°C to 40°C
- Rated Life (L70): 50000 hours
- Mounting: Recessed with spring-loaded clips
- Finish: White
Common Uses
Ideal for residential living areas, kitchens, hallways, bathrooms, and covered outdoor or wet-location applications, as well as light commercial hospitality and retail spaces requiring adjustable recessed lighting.
