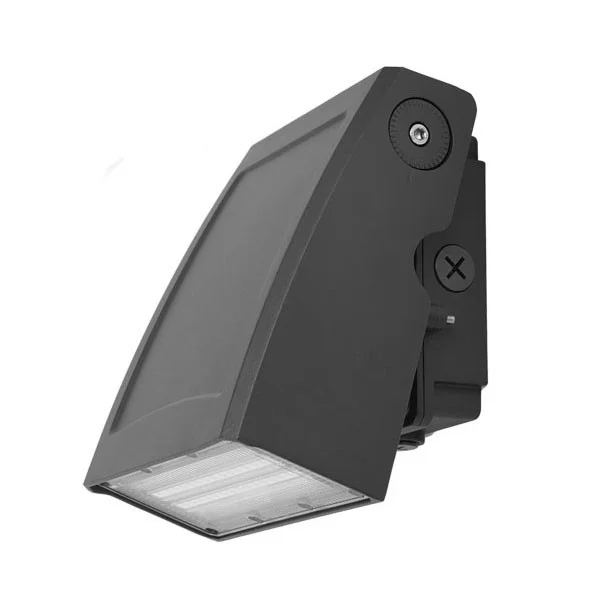

Adjustable Wall Pack with selectable color temperatures (3000K, 4000K, 5000K) and adjustable lumen outputs from 3,000 to 10,700 lumens.
Key Features and Benefits
- Field selectable 3000K (warm white), 4000K (neutral white), and 5000K (cool white) color temperatures.
- Adjustable housing up to 90°.
- Long-life LEDs provide at least 70% of initial lumen output (L70) for >146,000 hours of operation, and at least 90% of initial lumen output (L90) for >44,000 hours of operation.
- LED chromaticity based on <5-step ANSI quadrangles.
- LED color maintenance <0.003 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- Provides a range of 3,000 to 10,700 nominal lumens and 132 to 154 nominal lumens per watt (lm/W).
- 0-10vdc dimming drivers are standard.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index (Ra) > 80.
- Cast aluminum housing with dark bronze, powder coat finish.
- Polycarbonate lens.
- Three ½” NPT threaded openings.
- Easy installation in new construction or retrofit applications.
Specifications
- cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
- IP65 rated for ingress protection.
- DLC premium approved.
- Complies with FCC Part 15, class B.
- Surge protection = 4kV.
- 5-year warranty on all electronics and housing.
Common Uses
Ideal for outdoor wall-mounted applications, such as building perimeters, entrances, loading docks, and other areas requiring adjustable lighting solutions with selectable color temperatures and lumen outputs.
