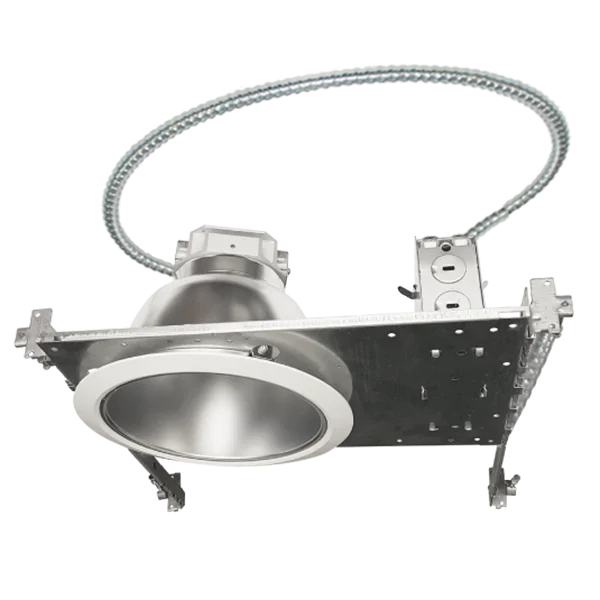

An ideal solution for efficiency, safety, and flexible design aesthetics. The 8125H housing – frame/module/trim combo balances power, efficiency and cost to bring you the options needed to complete a variety of residential or commercial projects with a reliable and modern LED down light solution.
DESIGN FEATURES
ELECTRICAL
- 120V-277V Universal Voltage
- Triac & 0-10V dimming with integral driver
- Suitable for use in damp locations, wet locations
- 50,000 hour projected life
- Beam angle 60º
- 23W, 1950lms | 30W, 2720lms | 45W, 3640lms
- Available in 3000K, 3500K, 4000K
HOUSING
- 23W, 30W, or 43W power options
- Sturdy aluminum construction
- Suitable for use in new construction applications
- 7-11/16” height allows for use in 2” x 8” joist construction
JUNCTION BOX
- Listed for through branch circuit wiring and includes five (5) 3/4” knockouts
- Easy access plate for quick wiring
BAR HANGER
- Included heavy-guage captive bar hanger allow the housing to be secured to both joist or suspended “T” bar construction
- Adjustable to position the housing at any point within a 24” joist span or grid section
- 4 captive nails for quick placement

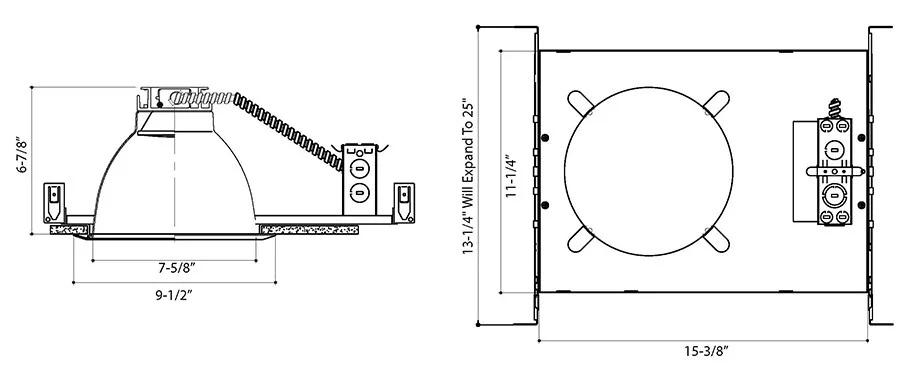

DIMENSIONS
- Size: 15-3/8” x 11-5/16” x 7-11/16”
- Aperture: 7-5/8”
CERTIFICATIONS
- Energy Star – 3000K & 4000K Only
- cCSAus
- 5 year limited warranty
