An ideal solution for efficiency, safety, and flexible design aesthetics. The 8120H housing – frame/module/trim combo balances power, efficiency and cost to bring you the options needed to complete a variety of residential or commercial projects with a reliable and modern LED down light solution.
DESIGN FEATURES
ELECTRICAL
- 120V-277V Universal Voltage
- Triac & 0-10V dimming with integral driver
- Suitable for use in damp locations, wet locations
- 50,000 hour projected life
- Beam angle 60º
- 14W, 1150lms | 23W, 1950lms
- Available in 3000K, 3500K, 4000K
HOUSING
- 14W or 23W power options
- Sturdy aluminum construction
- Suitable for use in new construction applications
- 4-7/8” height allows for use in 2” x 6” joist construction
JUNCTION BOX
- Listed for through branch circuit wiring and includes five (5) 3/4” knockouts
- Easy access plate for quick wiring
BAR HANGER
- Included heavy-guage captive bar hanger allow the housing to be secured to ceiling joist or suspended “T” bar construction
- Adjustable to position the housing at any point within a 24” joist span or grid section
- 4 captive nails for quick placement

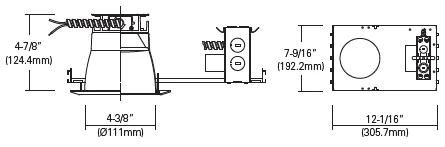

DIMENSIONS
- 12-1/16” x 7-9/16” x 4-7/8”
- Aperture: 4-3/8”
CERTIFICATIONS
- Energy Star – 3000K & 4000K Only
- cCSAus
- 5 year limited warranty
