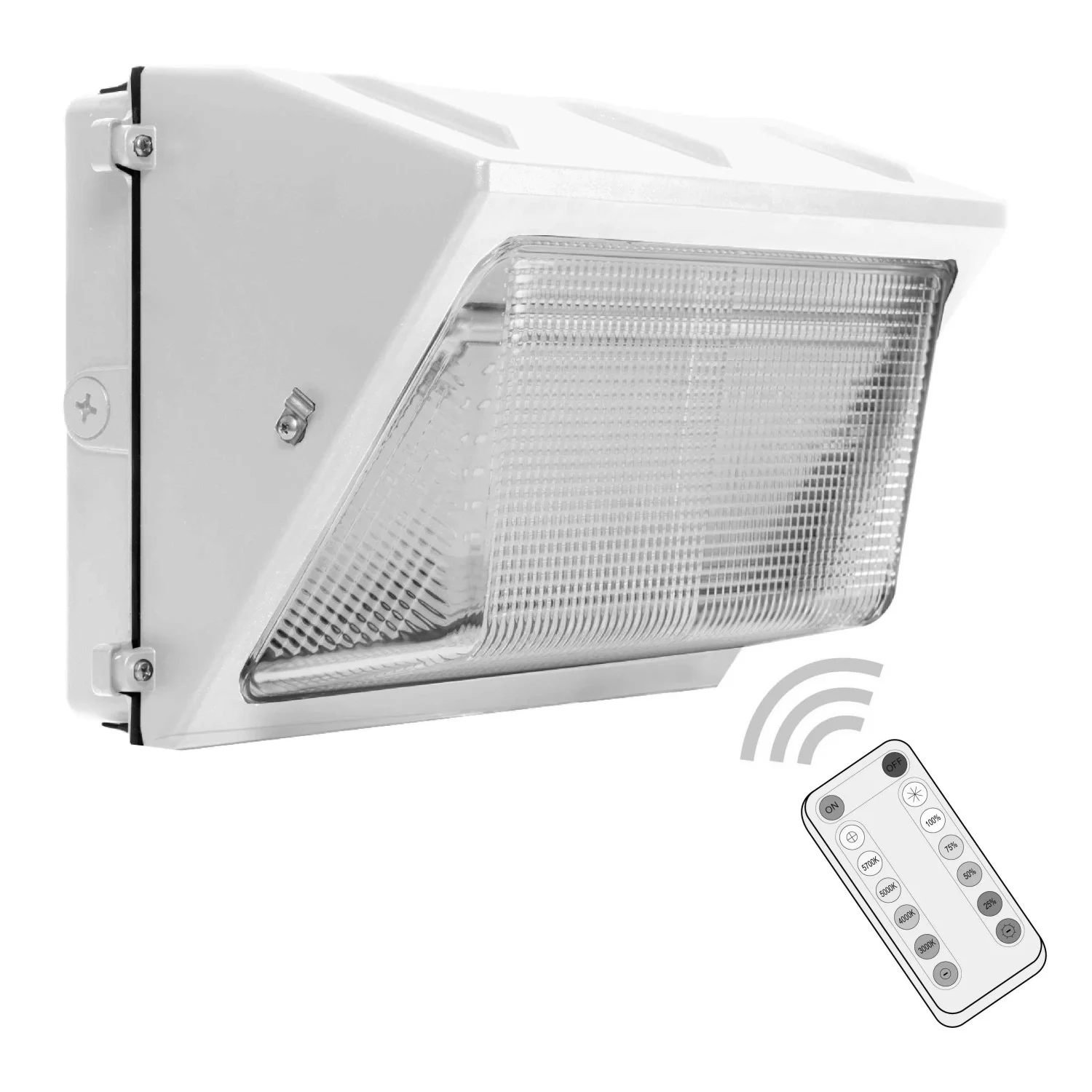

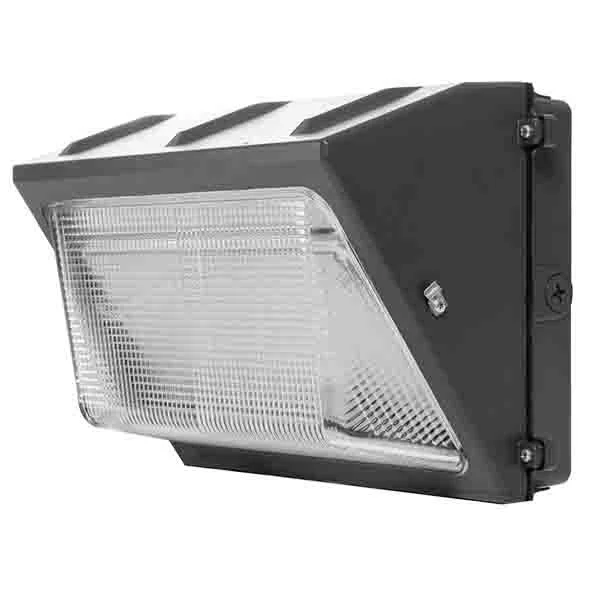

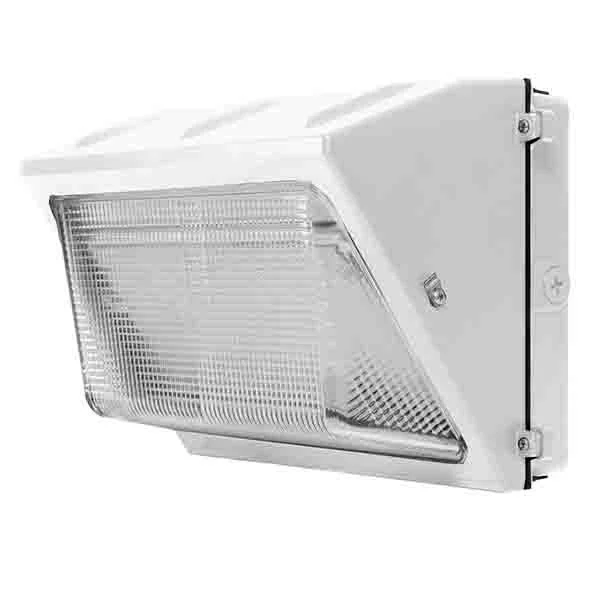

Enhance visibility and security with our innovative 80W Max Non-Cutoff Wall Pack, perfect for various applications including general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Delivering crisp, directional light, this wall pack is designed for optimal performance and longevity.
Electrical Specifications
- Input Wattage: 80W Max
- Input Voltage: 120-277VAC 50/60Hz
- Power Factor: >0.95
- Efficacy: 110LM/W
Housing Specifications
- Material: Die-cast aluminum with powder coat finish (Dark Bronze/White)

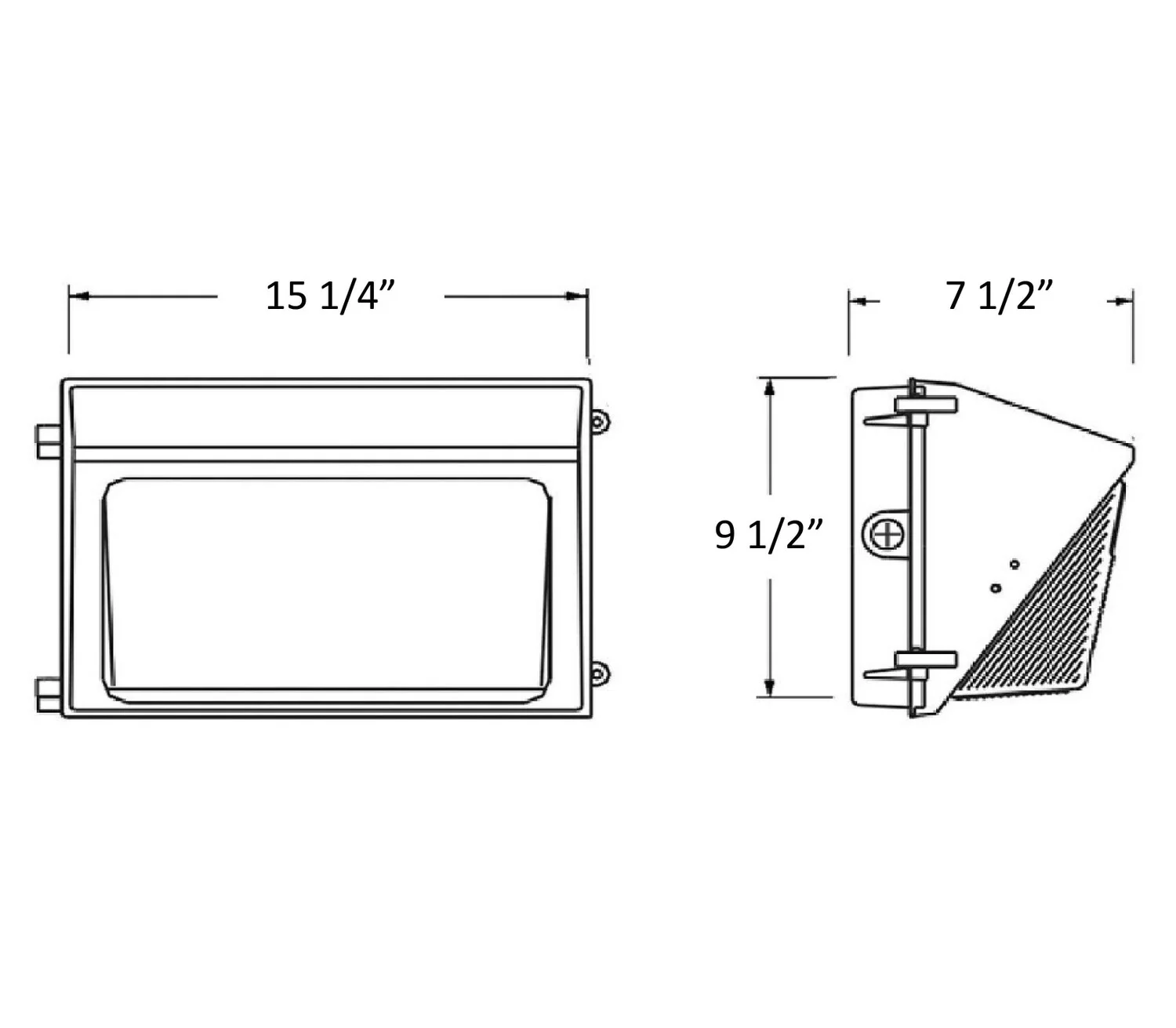

- Design: Same footprint as traditional HID wall packs
- Installation: Wall Mounting with four 1/2” hubs: 1 top, 1 on each side, 1 rear
- Operating Temperature: -4°F ~ 104°F
- Lifespan: 70000 hours
Lighting Specifications
- Dimming Capabilities: 0~10V Dimmable
- Lens: Prismatic borosilicate glass lens
- Light Source: LUMILEDS LED
- Total Lumens: 9000LM Max
- Color Temperature: 3000K~5700K
- Color Rendering Index (CRI): >80
