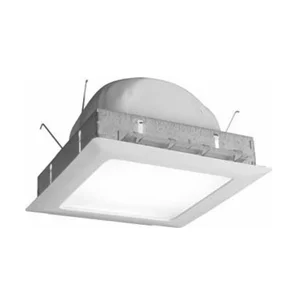

8″ LED Square Recessed Downlight, 22W, 120-277VAC, Triac/ELV Dimming

The LT-LEDH-S8-G2-22-XXX-UTD Series is an 8″ square LED recessed downlight, providing accent lighting with solid-state LED technology. It features an aluminum cast heat sink and a concealed reflector for optimized light distribution and longevity.

Key Features and Benefits

• Selectable color temperatures: 2700K, 3000K, 3500K, 4000K
• Adjustable lumen output up to 1,980 lumens
• High efficacy and energy-efficient operation
• Long lifespan of 50,000 hours
• ENERGY STAR qualified and California Title 24 compliant
• Compatible with various dimming systems including Triac/ELV and 0-10V

Specifications

• Wattage: 22W
• Voltage: 120-277VAC
• CRI: 90
• Beam Angle: 120°
• Damp location rated

Common Uses

Ideal for residential, commercial, and accent lighting applications where adjustable lighting is required.
