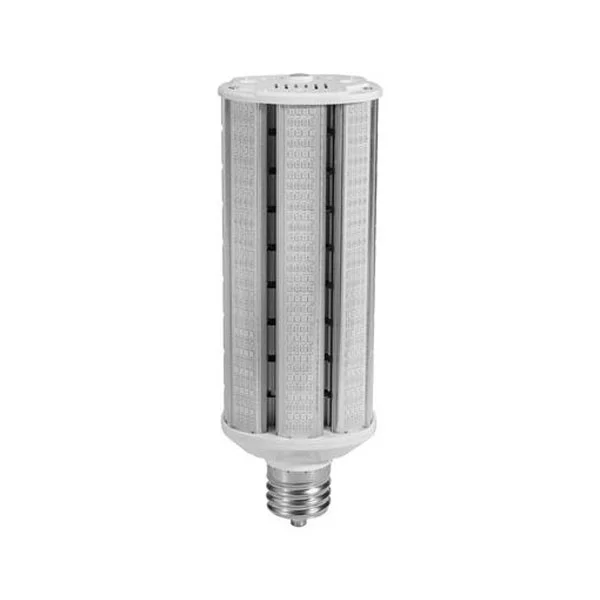

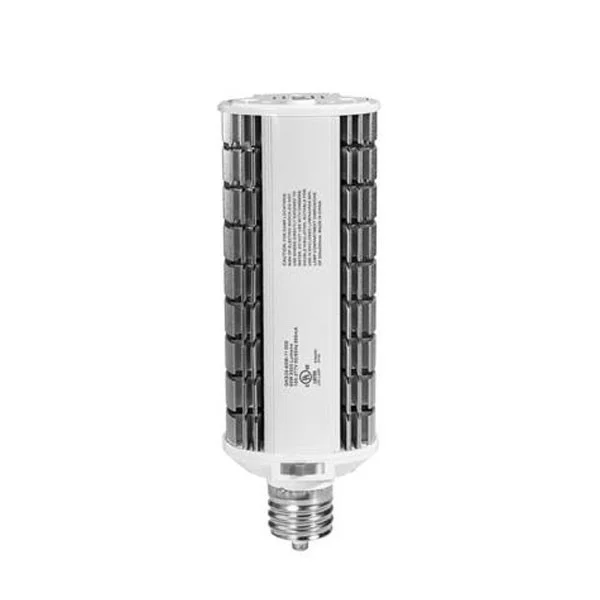

60 W LED Wall Pack, EX39 – Power and CCT Adjustable

LED wall pack, 20/ 40/ 60 power selectable, 9,600 lumens, available in 3000K/ 4000K/ 5000K CCT adjustable, up to 50,000 hours rated life, suitable for damp locations, 5 years limited warranty.
SUGGESTED APPLICATIONS

For use in wall pack retrofit applications, parking lot shoe box style luminaires, garages/canopies

FEATURES

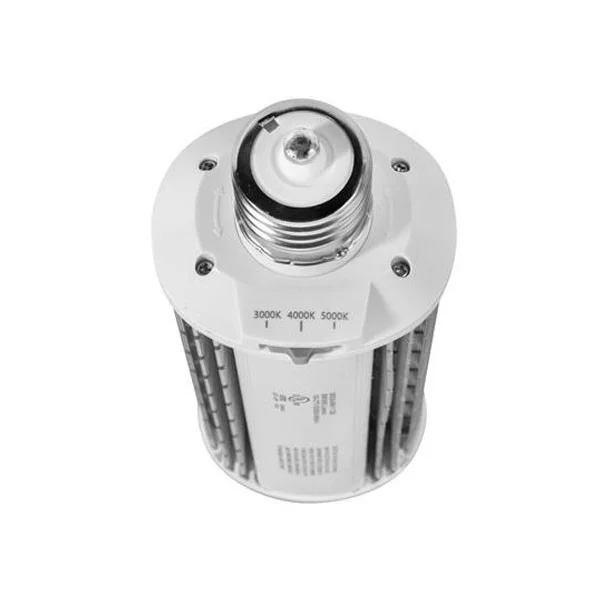

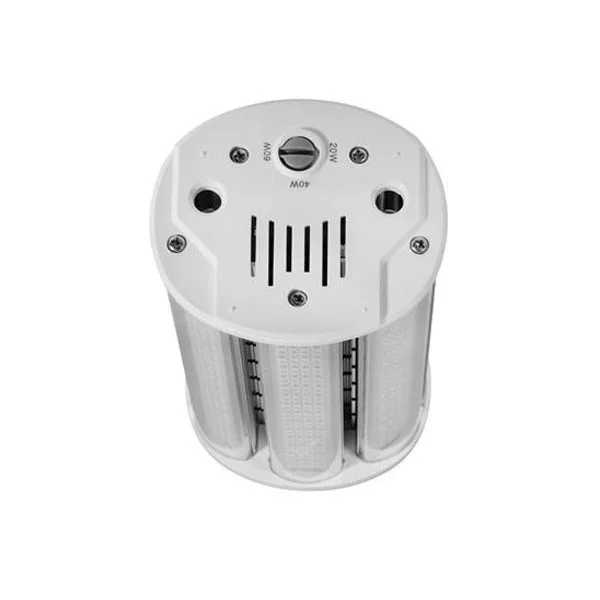

Choose wattage and color temperature at installation for up to nine possible configurations
Ballast bypass operation¹ – no ballast or external driver required
Internal thermal sensor reduces lamp power to 70%when operating in extreme high temperatures
350° rotatable base allows light to be aimed where it is needed most
Base up/base down/horizontal operating positions
Available in E26 and EX39 bases

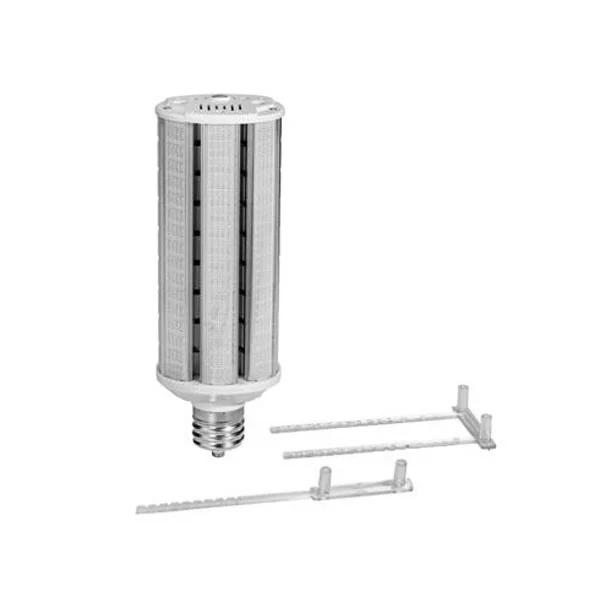

Support brace included

GENERAL SPECIFICATIONS

Input Voltage, Frequency: 120-277V, 60Hz
Power Factor, THD %: >0.9, <20%
Efficacy: 150 LPW
Functional Life (L70): 50,000 Hours
Minimum CRI: 85
Location Rating: Damp
Suitable for enlosed fixtures
Ambient Operating Temperature:
Open fixture: -20°F to 140°F
Enclosed fixture: -22°F to 113°F
Housing Construction: Aluminum heatsink
