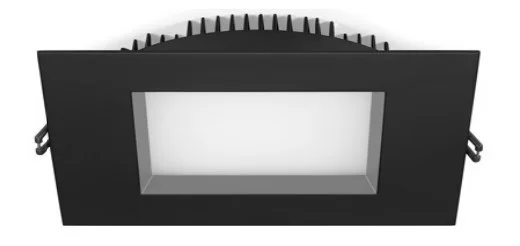

6-Inch Square 18 W Regressed 2nd Generation Plenum

6-inch square regressed 2nd generation plenum, 18 watts, 1,100-1,250 lumens, available in 2700K, 3000K or 4000K color temperature (CCT), white or black finish, up to 50,000 hours rated life, 10 years warranty residential/5 years warranty commercial.
DESCRIPTION

6″ Square Recessed LED With Integral Driver In Connection Box Commercial Grade Quality With Architectural Design

FEATURES & BENEFITS

2 1/4″ Deep- Install Where Ceiling Space Is Limited
Type IC Rated – No Housing Required
CRI 90+ for True Colo Rendering
Fast & Easy To Install- Save On Labor
Driver Inside Connection Box- No Junction Box Needed
Armored Cable & Metal Connectors – Open Plenum Rated

MOUNTING

Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips. Ceiling Clearance Required: 2 1/2″

SPECIFICATION

Application: Recessed Ceiling Mount
Energy Used: 18 W
Color Temperature: 2700K | 3000K | 4000K
Light Output: 1100lm | 1200lm | 1250lm
Beam Angle: 90°
CRI: 90+
Default Driver Input: 120V AC Triac Dimmable
Optional Driver Input: 120V-347V AC 0-10V Dimmable
Junction Box Wire Capacity: Max 5 No 12 AWG Or 8 No 14 AWG
Power Factor: 0.98
Approved Location: Insulated Ceiling, Open Plenum, Wet
IP Rating: IP 54
Air Tight: Yes
Ambient Temperature: -40°F (-40°C) to +104°F(+40°C)
Projected Life: 70% Light Output at 50,000 Hours
Certification: cULus, Energy Star
Warranty: 10 Year Residential/ 5 Year Commercial
