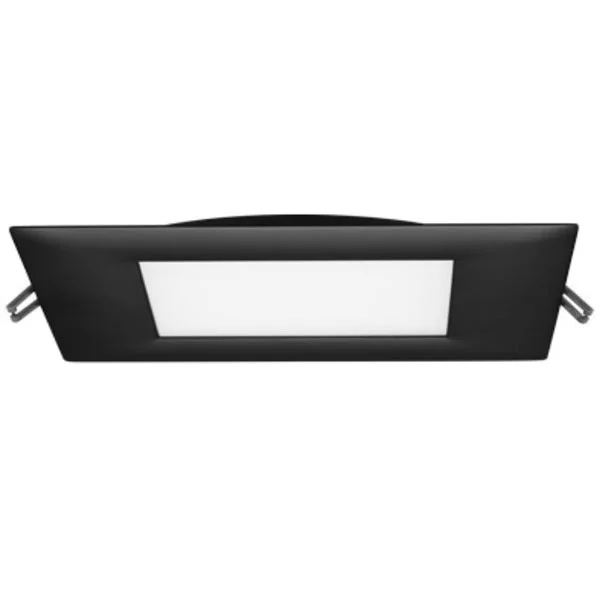

6-inch square LED super thin recessed, 17 Watts, 1,000-1,100 lumens, available in 2700K, 3000K or 4000K color temperature (CCT), white or black finish, up to 50,000hours rated life, 5 years warranty on commercial applications.
DESCRIPTION
6″ Square Recessed LED With Integral Driver In Connection Box Fits Where No Other Recessed Fixture CAn
FEATURES & BENEFITS
1/2″ Deep – Install Directly Under Joists, Maximum Layout Flexibility
Driver Inside Connection Box – No Junction Box Needed
Fast & Easy To Install – Save On Labor
Type IC Rated – No Housing Required
MOUNTING
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips. Ceiling Clearance Required For Driver: 1 1/2″
SPECIFICATION
Applications: Recessed Ceiling, Showers & Soffits
Energy Used: 17 W
Colour Temperature: 2700K | 3000K | 4000K
Light Output: 1000lm | 1050lm | 1100lm
Beam Angle: 110°
CRI: 80
Default Driver Input: 120V AC Triac Dimmable
Optional Driver Input: 120V-347V AC 0-10V Dimmable
Junction Box Wire Capacit: Max 5 No 12 AWG or 8 No 14 AWG
Power Factor: 0.95
Approved Location: Insulated Ceiling, Wet & Damp Locations
IP Rating: IP 54
Air Tight: Yes
Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
Projected Life: 70% Light Output at 50,000 Hours
Certification: cULus, Energy Star
Warranty: 5 Year on Commercial Applications
