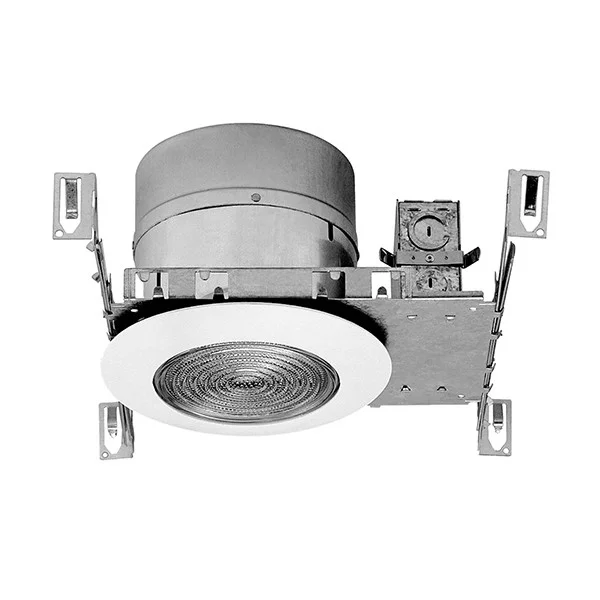

6-Inch Shallow Incandescent IC Rated Housing for New Construction

From the Royal Pacific Lighting, this 6” Shallow Incandescent IC Rated Housing for New Construction is cULus certified for damp location with 1 year limited warranty.

AVAILABLE TRIMS

DESIGN FEATURES

• Connectors: 3 part quick connectors pre installed in all J Boxes
• Construction: New Construction
• Thermal Protection: Protected against misuse of insulation and improper wiring.
• IC Rating: IC rated for direct contact with non cellulose type insulation.
• J Box: Listed for feed through wiring (4 in, 4 out) and seven 1/2″ knockouts
• Bar hangers: Pre installed allowing for position at any point w/in a 24″ joist span. Can be turned 90° on plaster frame, & to fit T-bar spine w/out additional clamps for use in drop ceilings.
• Nails: Pre installed captive nails on bar hangers
• Wattage: Up to 75W
• Voltage: 120V-60Hz
• Warranty: 1 year limited warranty

LISTING

• ETL/UL: cULus certified for damp location
• Meets Washington’s State energy code for restricted airflow

ADDITIONAL INFORMATION

• Socket is adjustable for proper positioning of different lamps types.
• Adjusts to fit up to 1-1/4″ ceiling thickness.
• 5-1/2″ height allows use in 2″ x 6″ joist construction.
