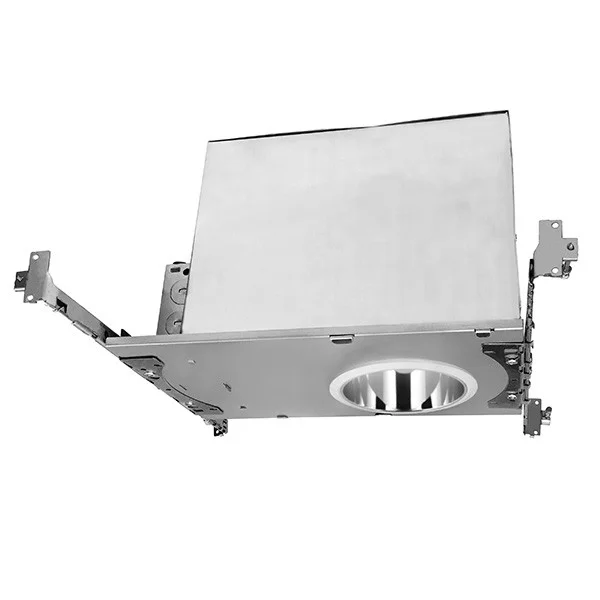

An ideal solution for efficiency, safety, and flexible design aesthetics. 8122HIC – a 6″ LED IC Airtight FrameIn balances power, efficiency and cost to bring you the options needed to complete a variety of residential or commercial projects with a reliable and modern LED down light solution.
DESIGN FEATURES
ELECTRICAL
- 120V-277V Universal Voltage
- Triac & 0-10V dimming with integral driver
- Suitable for use in damp locations, wet locations
- 50,000 hour projected life
- Beam angle 60º
- 14W, 1150lms
- 23W, 1950lms
- 30W, 2720lms
- Available in 3000K, 3500K, 4000K
HOUSING
- Galvanized steel construction
- IC Rated for direct contact with batt type fiberglass insulation
- Aluminum extruded heat sink designed to facilitate heat dissipation to reduce LED junction temperature to maintain constant light output, color and life.
- Heavy gauge aluminum reflector anodized in haze finish with smooth coating.
- Driver mounts externally to the module allowing for easy access for future replacement.
JUNCTION BOX
- Listed for through branch circuit wiring and includes five (5) 1/2” knockouts
- Easy access plate for quick wiring
BAR HANGER
- Included heavy-guage captive bar hanger allow the housing to be secured to ceiling joist or suspended “T” bar construction
- Adjustable to position the housing at any point within a 24” joist span or grid section
- 4 captive nails for quick placement

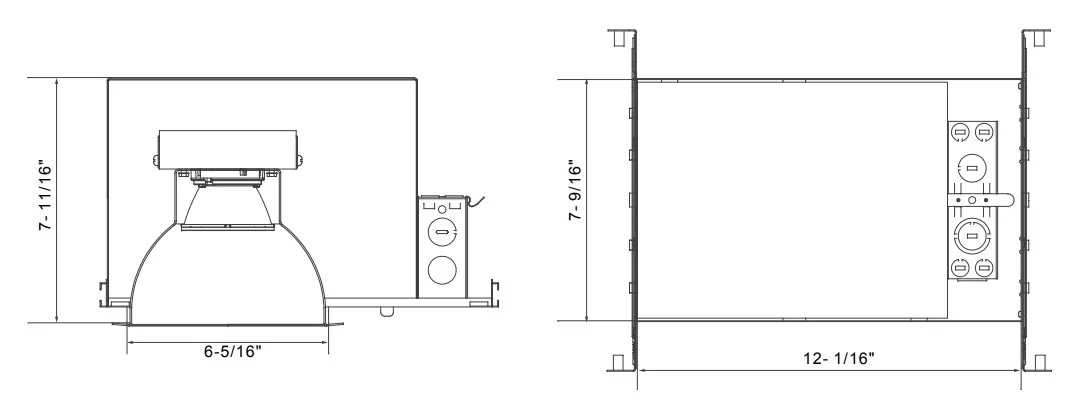

DIMENSIONS
- Size: 12-1/16” x 7-11/16” x 7-9/16”
- Aperture: 6-5/16”
CERTIFICATIONS
- cCSAus
- Energy Star
- 5 year limited warranty
