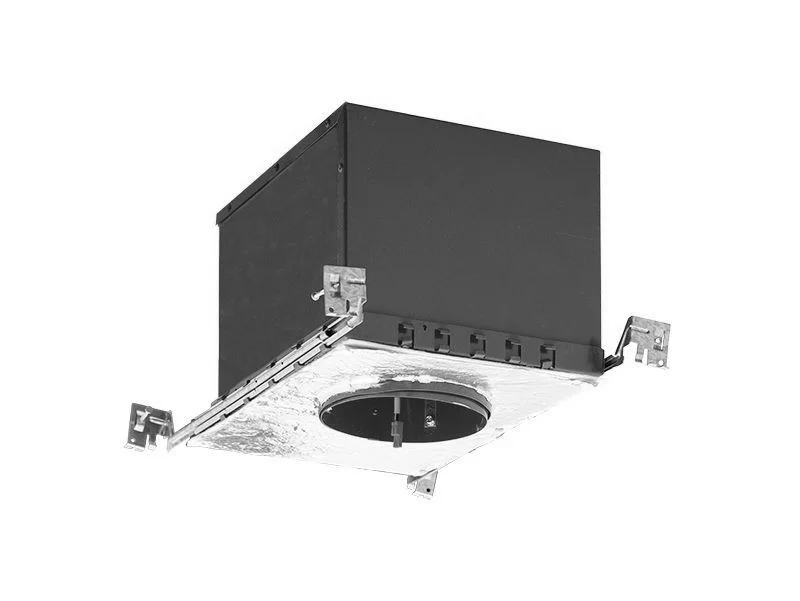

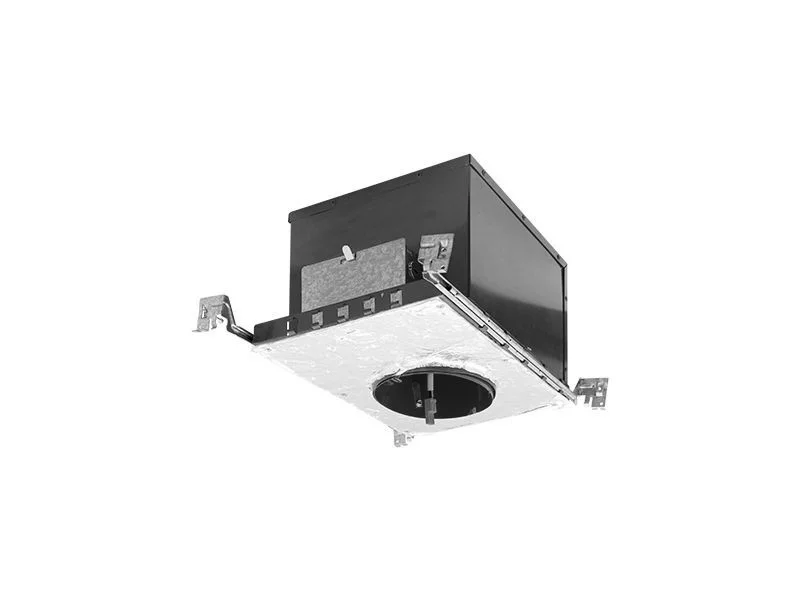

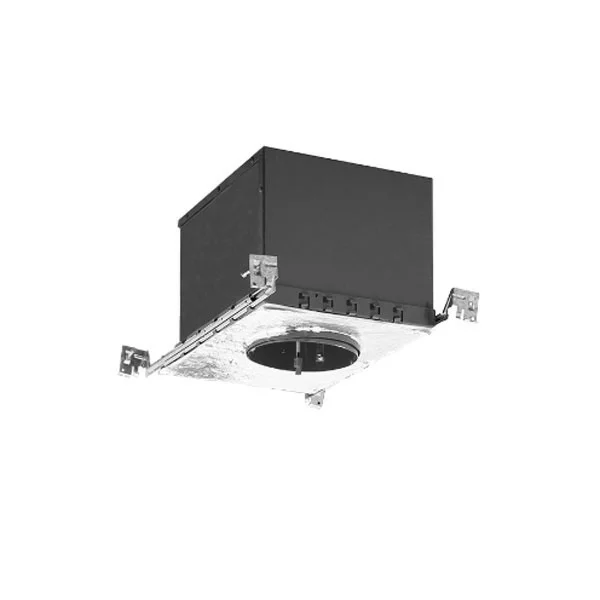

6-Inch Airtight Fire-Rated LED Recessed Light Housing

6-Inch Type IC Fire-Rated New Construction LED Housing
Our 6-Inch Type IC Fire-Rated New Construction LED Housing is an exceptional choice for your lighting needs. This housing is compatible with LED lamps featuring a quick connector, ensuring seamless installation and compatibility. certified for 2-hour fire-resistance and airtight properties, making it a durable and reliable solution for residential and commercial settings.
FEATURES

Compliant with UL 1598 standards for luminaires, making it Type IC rated for direct contact with insulation.
ETL listed for 2-hour fire resistance, exceeding stringent UL 263 safety codes.
Meets Title 24 requirements, ensuring energy efficiency.
Includes an LED quick connector for easy setup.
ETL ASTM E283/E283M-19 airtight certified to minimize airflow and ensure energy efficiency.
Integrated non-combustible insulation acts as a sound barrier, reducing sound transfer between floors.
Trims and inserts are sold separately to cater to specific design requirements.

ELECTRICAL

Operates at either 120V or 277V.
Consumes 22W of power, efficient for various applications.

MECHANICAL

Double wall IC rated for direct contact with insulation, usable in both IC and non-IC conditions.
Adjustable housing frame to accommodate ceilings up to 1-1/2” thick.
Airtight housing comes with a gasket to restrict airflow as per ASTM E-283 airtight requirements.
Suitable for damp locations, expanding the range of application environments.

JUNCTION BOX

Pre-wired #21 gauge galvanized steel junction box with (7) 1/2” knockouts and (4) Romex® knockouts along with removable plates.

HANGER BARS

Pre-installed hanger bars with True Nail® for easy installation in regular, engineered, and laminated lumber.
Includes integral T-bar slots for effortless T-bar installations, spanning up to 24” and can be repositioned 90°.
Score lines enable tool-free hanger bar size reduction, and the integral leveling flange facilitates single-person installation while aligning housings with joists.

APPLICATIONS

Ideal for ceiling plenums with 2×8 joists or taller structures.
High-strength hanger bars can easily be nailed to joists for secure installation.
Suitable for T-grid and drop ceiling applications, offering versatile installation options.
Refer to the installation sheet for detailed instructions and guidelines.
