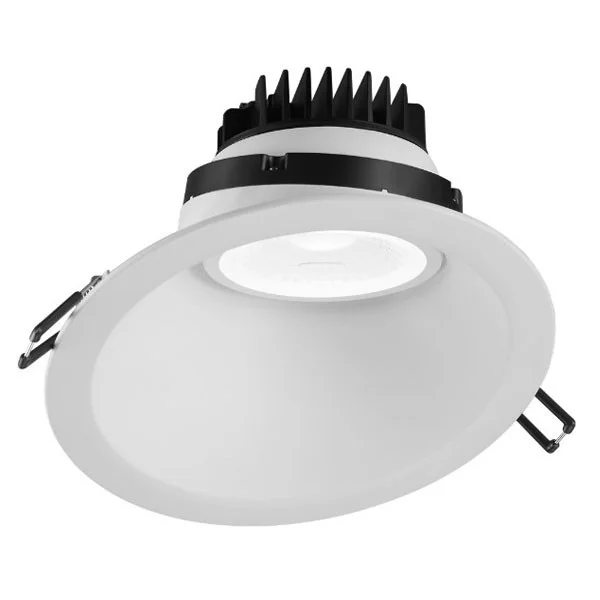

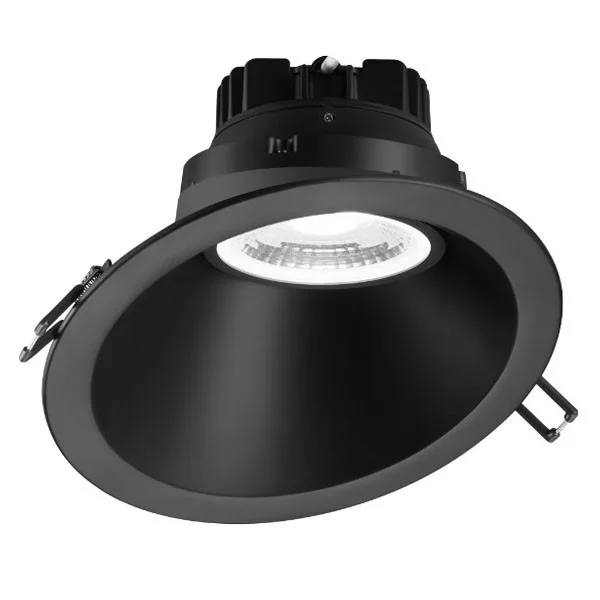

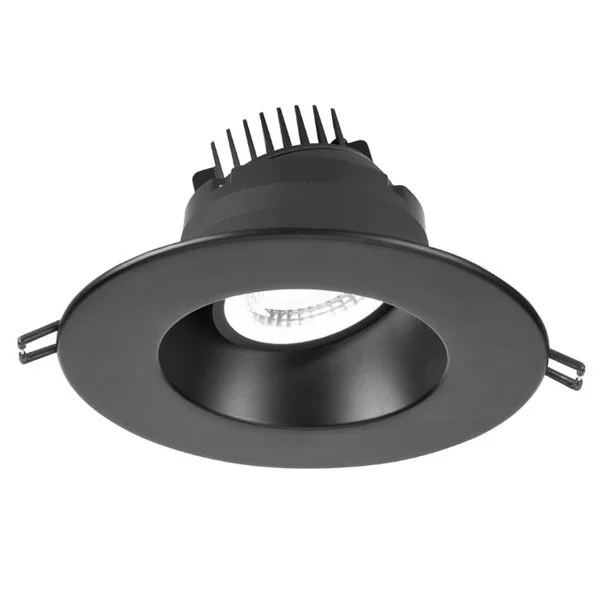

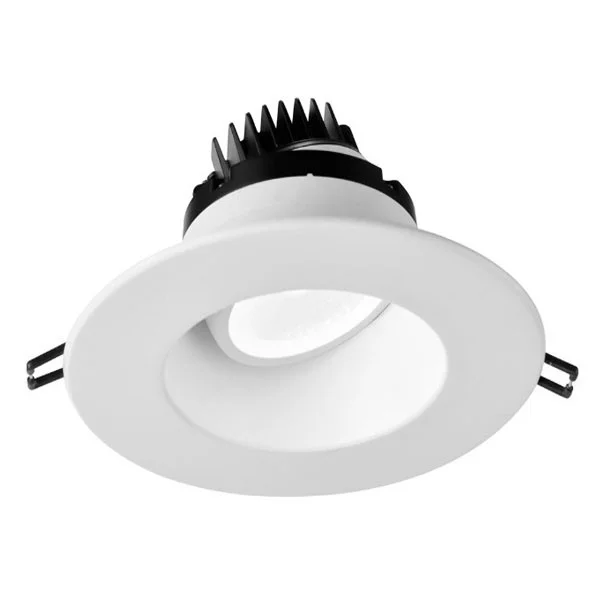

6-Inch 15 W Round Regressed LED Gimbal

6-inch round LED regressed gimbal, 15 watts, 900-1,400 lumens, available in dim to warm color temperature (CCT), suitable insulated ceiling for wet locations, up to 50,000 hours rated life, 10 year residential/5 year commercial.
DESCRIPTION
6″ Round Regressed Gimbal LED 15W With Integral Driver In Connection Box Adjustable Yet Air-Tight Without Housing Needed
FEATURES & BENEFITS

3 1/2″ Deep – Install Where Ceiling Space Is Limited
Type IC Rated – No Housing Required
Driver Inside Connection Box – No Junction Box Needed
Directional Beam – Great for Sloped Ceilings and Artwork
CRI 90+ for True Color Rendering
Available in single CCT, Dim to Warm 30-20K & 30-18K, & 5CCT

MOUNTING

Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips. Ceiling Clearance Required: 3 1/2″

SPECIFICATION

Applications: Sloped Ceilings up to 20°, General Lighting
Energy Used: 15 W
Color Temperature: DTW 30-20
Light Output:900lm, 980lm, 1100lm, 1200lm, 1250lm, 1300lm, 1400lm
Beam Angle: 38° wide beam with 20° tilt and 360° rotation
CRI: 90 +
Default Driver Input: 120V AC Triac Dimmable
Optional Driver Input: 120V-347V AC 0-10V Dimmable
Junction Box Wire Capacity: Max 5 No 12 AWG or 8 No 14 AWG
Power Factor: 0.95
Approved Location: Insulated Ceiling & Wet Locations
IP Rating: IP 54
Air Tight: Yes
Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
Projected Life: 70% Light Output at 50,000 Hours
Certification: cULus, Energy Star (except DTW & 5CCT), T24
Warranty: 10 Year Residential / 5 Year Commercial
