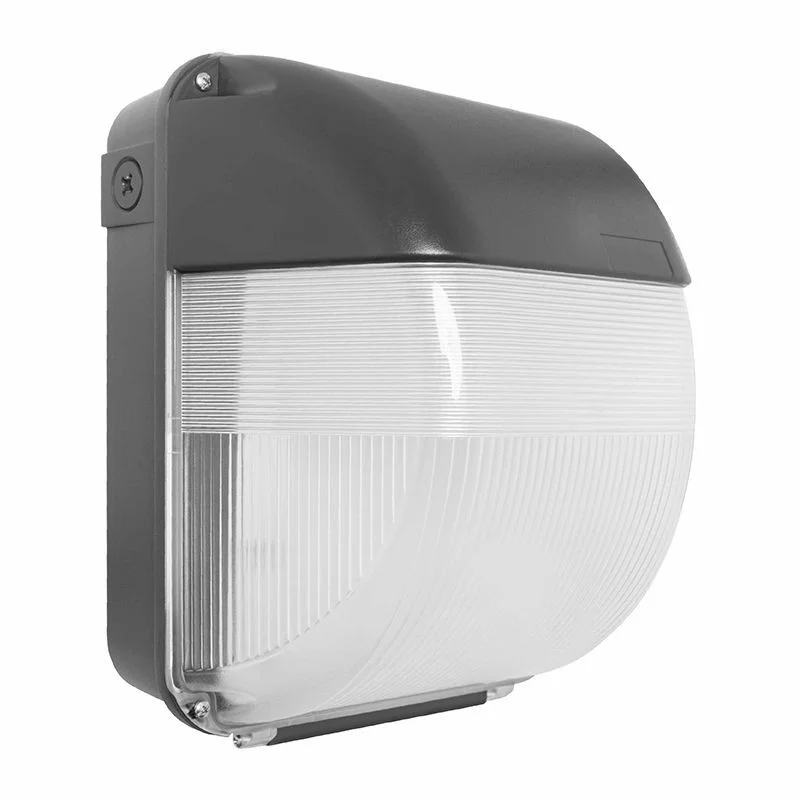

Versatile LED Wall Pack for Various Applications
The WM-LTW-50 LED Wall Pack is an ideal solution for site lighting, alleys, loading docks, doorways, pathways, and interior halls. Combining reliable performance with energy efficiency, this wall pack delivers outstanding illumination tailored to a variety of settings.
Electrical Specifications
- Voltage: 120/277V AC
- Wattage: LED Consumption: 50W
- Power Factor: 95%
Lighting Specifications
- LED Type: Philips Lumileds LEDs
- Total Lumens: 4489lm (CW) / 4300lm (WW)
- Color Temperature: 5000K (CW) / 3000K (WW)
- Color Rendering Index: >82
Durable Housing
- Constructed with die-cast aluminum and a powder coat finish
- Finished in dark bronze for a sleek look
- Equipped with 4 1/2″ KO’s: 1 on the top, 1 on each side, 1 in the rear
- Features a prismatic borosilicate glass lens
Mounting and Installation
- Comes with mounting hardware
- Driver and LED board feature quick disconnects for quick and easy replacements
- Operating temperature range: -20°C (-4°F) to 40°C (104°F)
Certifications and Warranty
- UL/cUL certified
- IP54 rated, making it suitable for wet locations
- Includes a 7-year warranty
- 70,000-hour rated life
