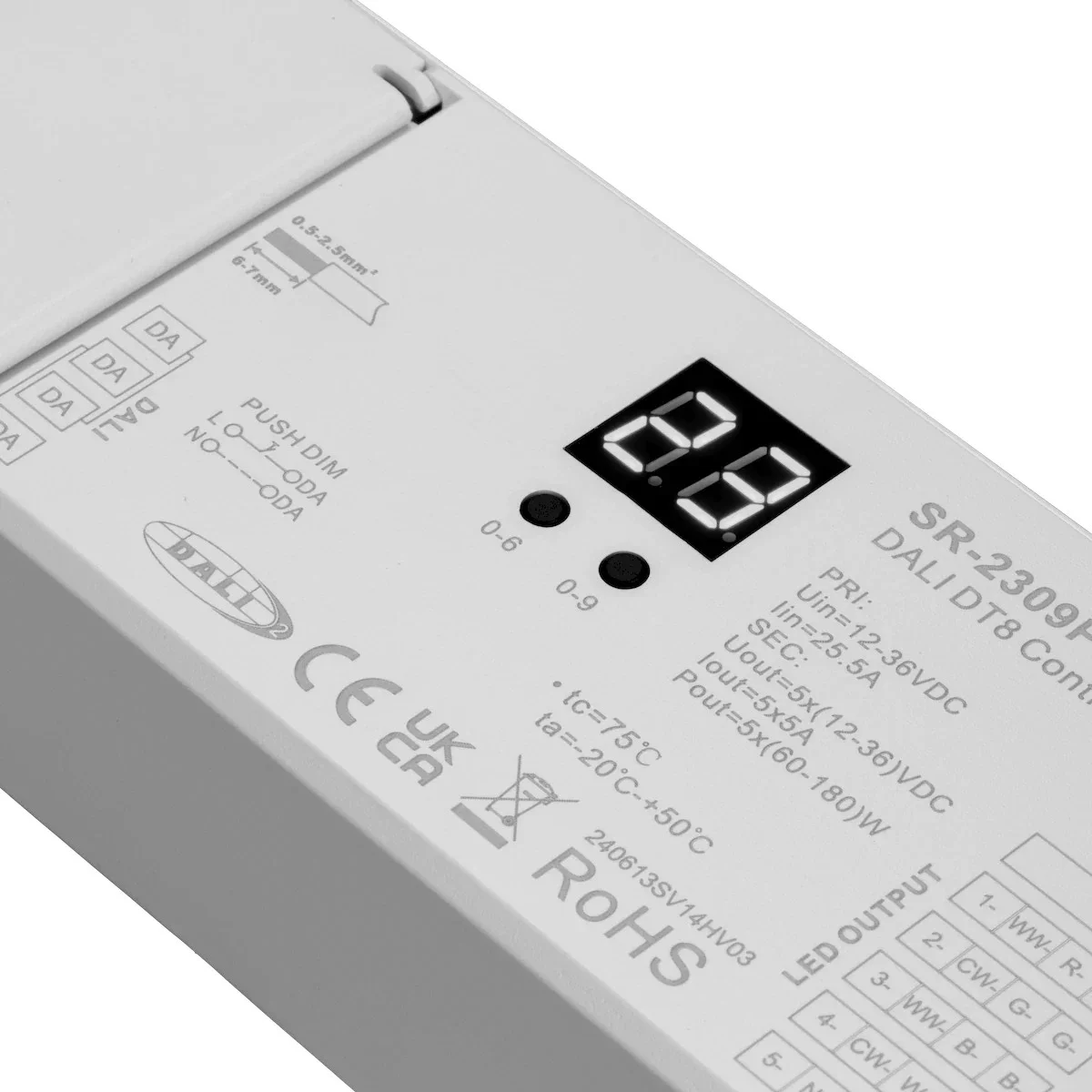

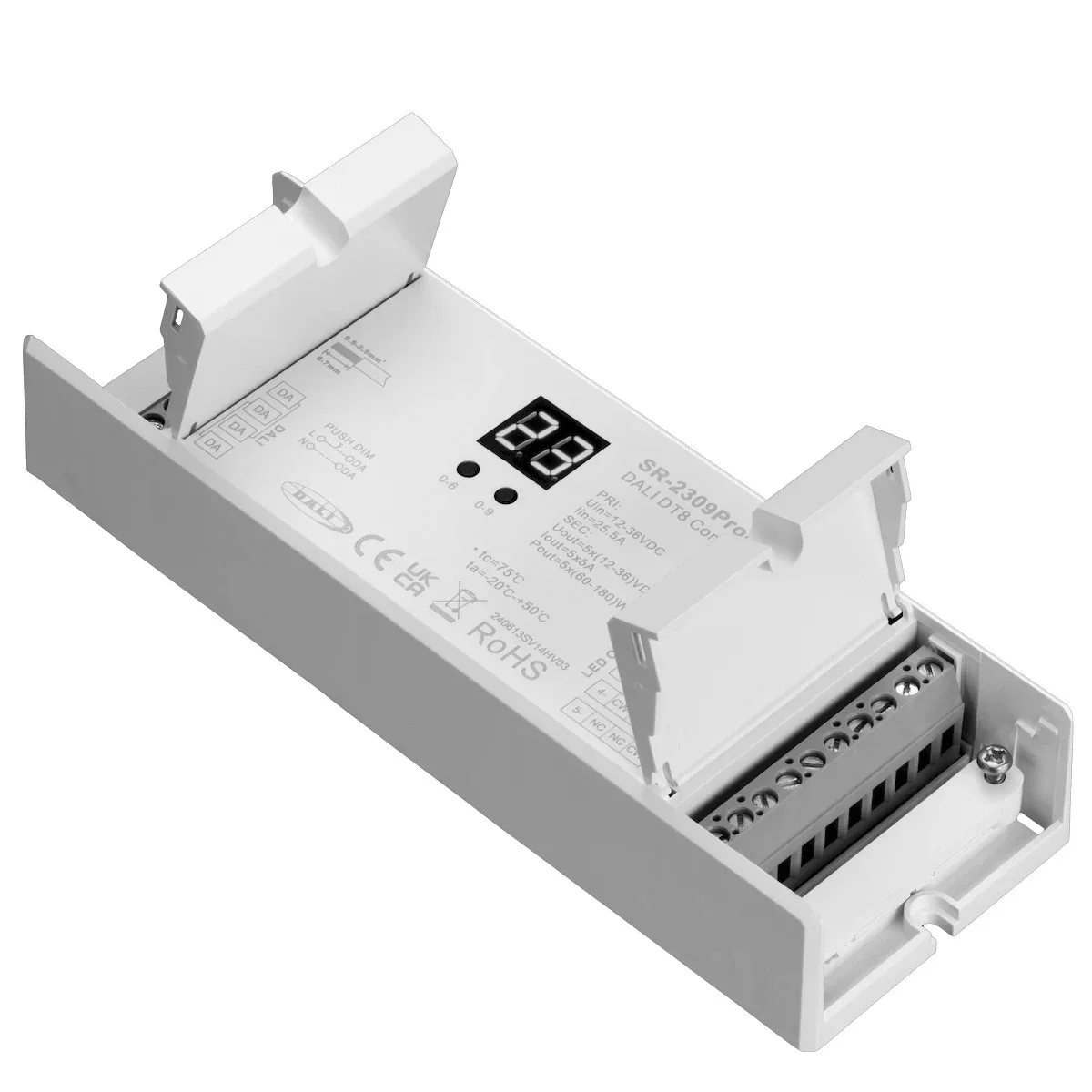

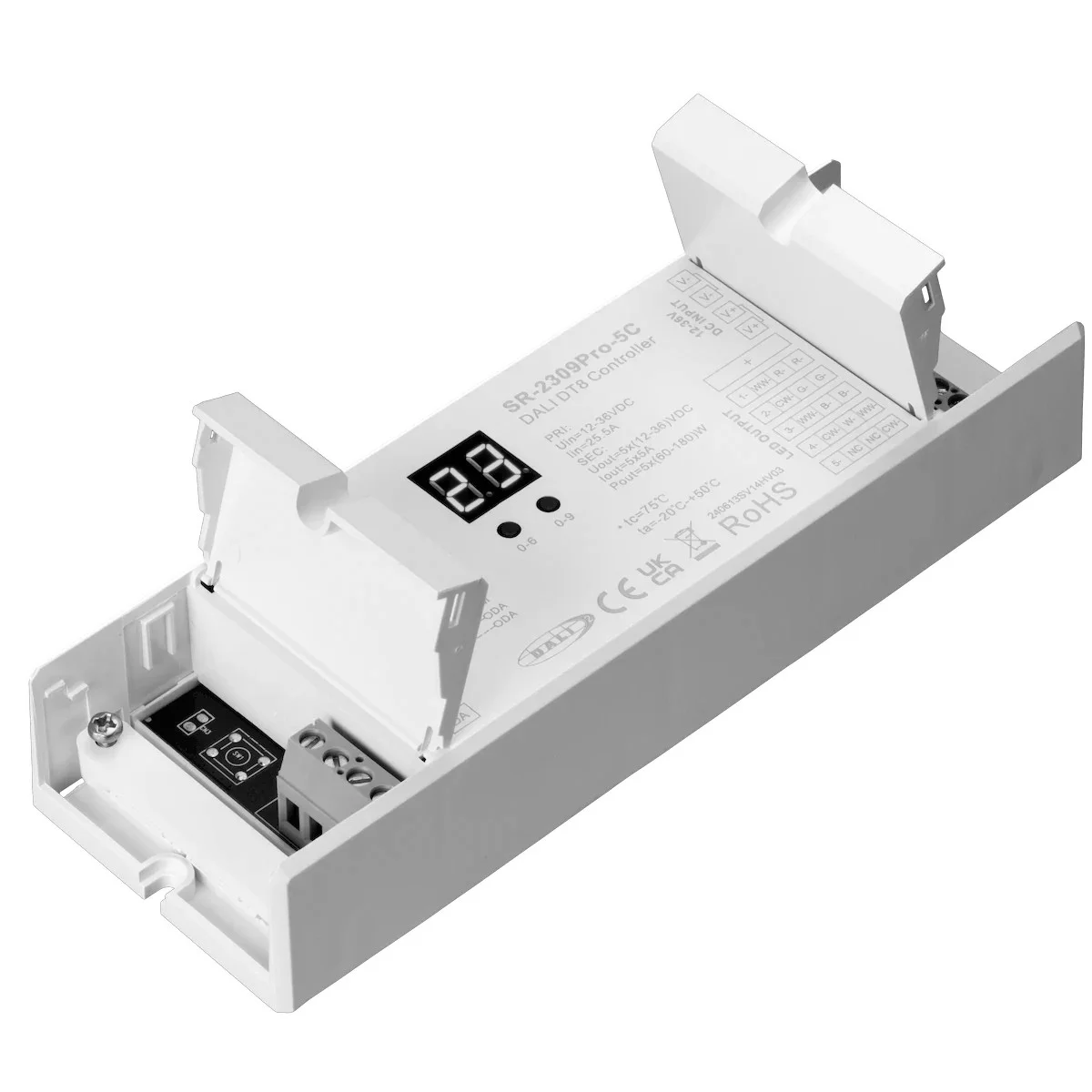

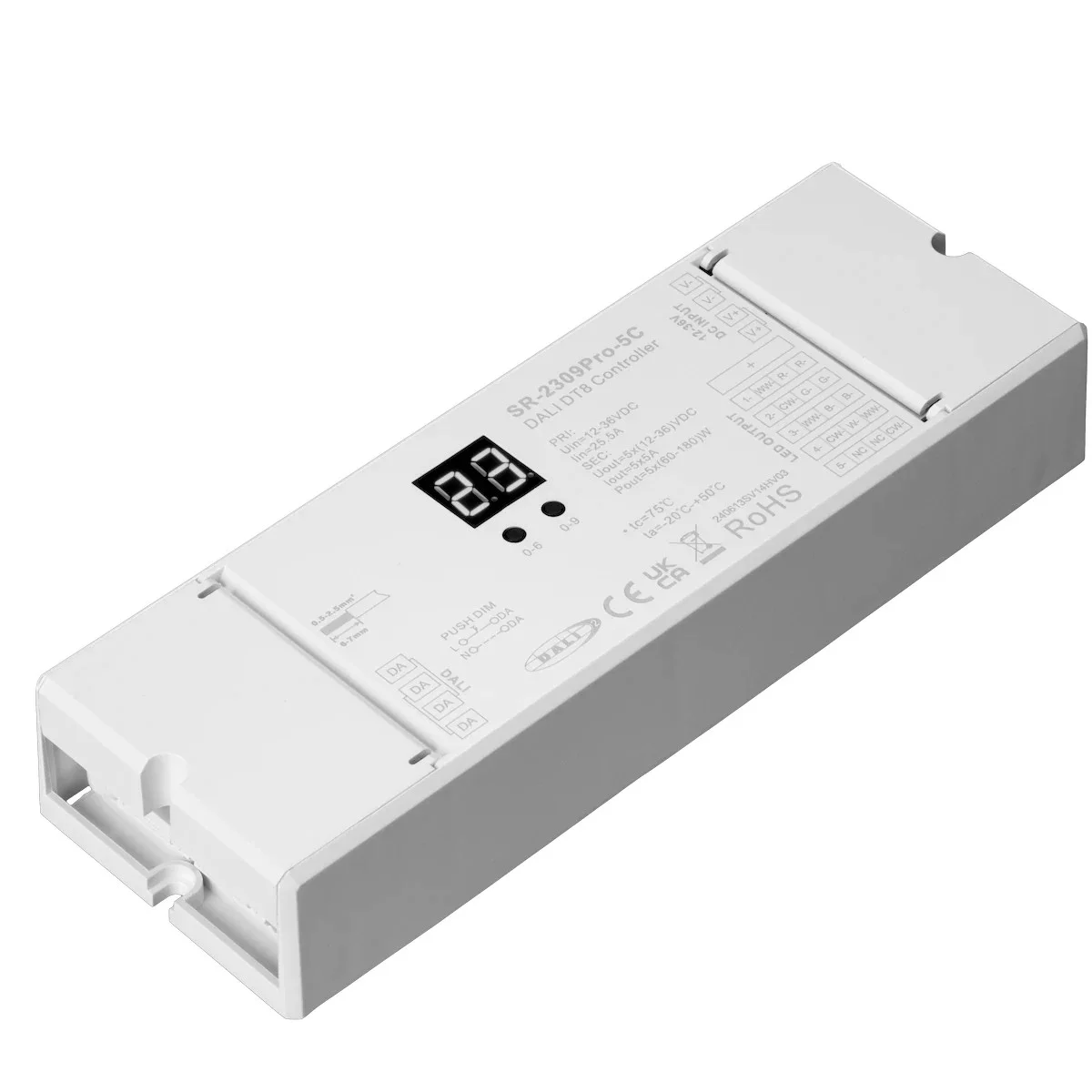

5-Channel LED DALI Decoder for controlling tunable white, RGB, RGBW & RGB+TW luminaires with selectable color temperature and adjustable lumen outputs.
Key Features and Benefits
- Built-in DALI-2 interface, DALI DT8 multi-address enabled control gear
- Numeric digital display for configuration settings and manual DALI addressing
- 5 channels of PWM constant voltage output via DT8 device commands
- Supports both DT6 and DT8 device commands
- Multi-functional, 7-in-1 color types: Tc, RGBWAF, XY, 2*Tc, XY+W (DT6)
- Color temperature and RGB color control through stand-alone, push dim mode without DALI control
Specifications
- Input Voltage: 12-36V DC
- Output: 5x 5A PWM
- DALI Consumption: 2mA
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Rating: TUV Listed; RoHS Compliant; IP20 for dry locations, DALI-2 Certified, CE, FCC
Common Uses
Ideal for use in architectural lighting, retail displays, and any application requiring precise LED control with DALI systems.
