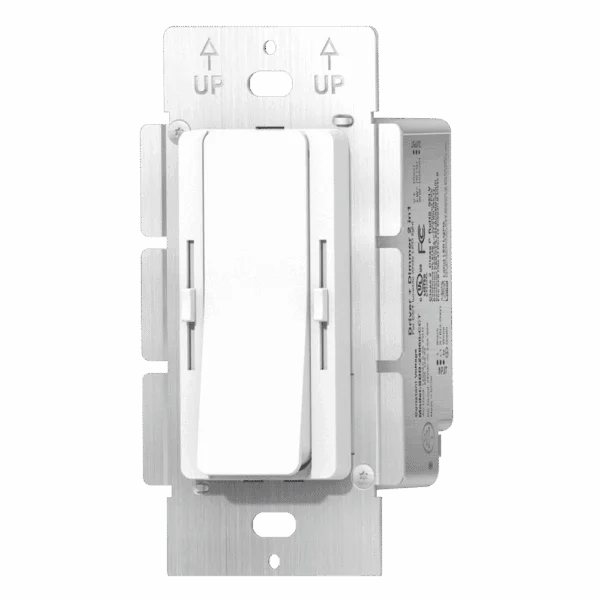

The Lotus LED Lights SDD-24060-CCT is a compact 3-in-1 control solution that combines a constant-voltage LED driver, dimmer, and manual CCT controller in one device. Designed for tunable white 24V tape light systems, it simplifies installation while improving dimmer-to-driver compatibility in commercial and residential projects.
Key Features and Benefits
- All-in-one design reduces component count by integrating driver, dimming, and CCT adjustment.
- Manual slide control enables smooth tunable white adjustment from warm to cool light appearance.
- Supports both single-pole and 3-way wiring for flexible wall-control layouts.
- High electrical performance with strong power factor and low harmonic distortion for stable operation.
- Certified to cULus safety standards and FCC requirements for dependable code-oriented installations.
- Backed by a 5-year warranty for long-term reliability.
Specifications
- Power: 60W
- Input: 120V AC, 60Hz
- Output: 24V DC / 2.5A
- Voltage Adjustment: 24V to 26V (±0.5V)
- Dimming Range: 0.3% to 100%
- Power Factor: >0.99 at full load
- THD: <10% at full load
- Efficiency: 91% at full load
- PWM Frequency: 16kHz
- Operating Temperature: -40°F (-40°C) to +140°F (+60°C)
- Location Rating: Dry and Damp locations
- Protection: Short circuit, over-voltage, over-heat, over-load
- Net Weight: 0.55 lbs
Common Uses
Ideal for tunable white LED tape installations in homes, hospitality spaces, retail displays, and light commercial interiors where wall-box control, smooth dimming, and adjustable white light are required.
