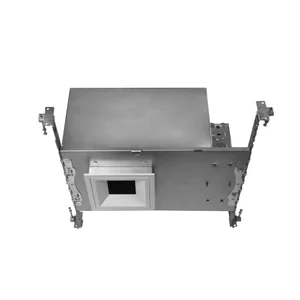

The ICED9541S is a 4″ x 4″ IC airtight rated LED square architectural downlight, designed for energy efficiency and versatility in commercial and residential spaces. This fixture stands out in the manufacturer’s lineup for its robust construction, selectable wattages, and multiple color temperature options, making it a flexible solution for a variety of lighting needs.
Key Features and Benefits
- Color temperature options: 2700K, 3000K, 3500K, or 4000K for customizable ambiance
- High efficacy up to 87.7 LPW and long 50,000-hour rated life
- Available in 80 or 90 CRI for excellent color rendering
- IC rated for direct contact with insulation, suitable for airtight applications
- Standard 0-10V dimming, with optional Lutron drivers for advanced dimming
- Certified to IESNA LM-79 and cETLus listed for safety and performance
- Lightweight aluminum housing with efficient heat dissipation
- Optional wet location lens available
Specifications
- Lumens: 1600lm (23W)
- Wattage: 23W
- Voltage: 120-277VAC
- Color Temperature: 2700K | 3000K | 3500K | 4000K
- CRI: 80 | 90
- Dimming: 0-10V standard, ELV & TRIAC optional
- Beam spreads: 42° (23W)

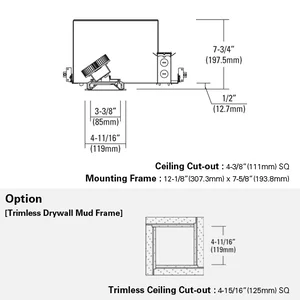

- Mounting: For ceilings up to 1-1/4″ thick
- Certifications: cETLus, LM-79, LM80 compliant
Common Uses
Ideal for offices, retail stores, hospitality, residential, and commercial environments where high-quality, flexible, and energy-efficient recessed lighting is required.
