The RG Series 4″ Regress Gimbal is a compact architectural recessed downlight designed for flexible accent and general illumination. As part of Lum-Tech’s selectable-CCT lineup, it combines high color quality, directional control, and code-friendly performance for modern projects.
Key Features and Benefits
- 5CCT selectable output lets you tune light color from warm to daylight for different spaces.
- Regressed gimbal design helps reduce glare while enabling directional aiming.
- Smooth dimming down to 5% supports layered lighting scenes and energy savings.
- IC rated, wet location listed, and airtight construction for broader installation flexibility.
- Title 24 JA8 compliant with ETL listing and FCC compliance for confidence in code-driven jobs.
Specifications
- Lumen Output: 1100
- Wattage: 14W
- Voltage: 120V
- CRI: 90
- Beam Angle: 40°
- Color Temperature: 2700K|3000K|3500K|4100K|5000K

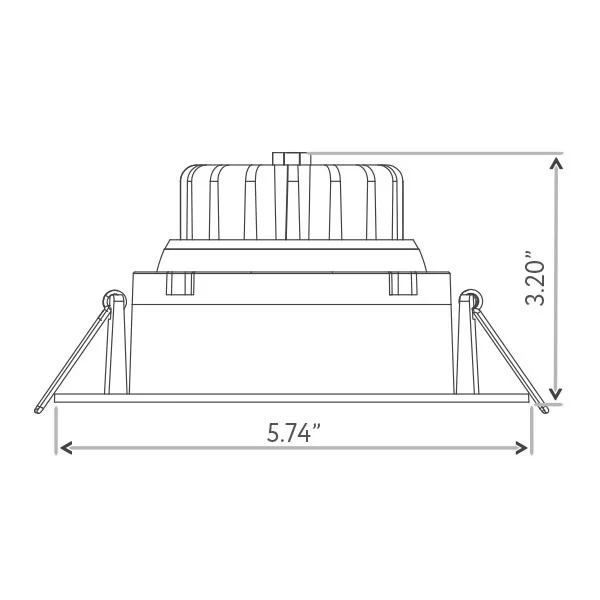

- Cut Out: 4.55″
- Trim Size: 5.74″
- Height: 3.20″
- Lens: Clear (default), changeable 40° or 60° options
Common Uses
Ideal for residential living areas, kitchens, bathrooms, soffits, and covered outdoor zones, as well as hospitality and light commercial interiors requiring adjustable recessed lighting with high visual comfort.
