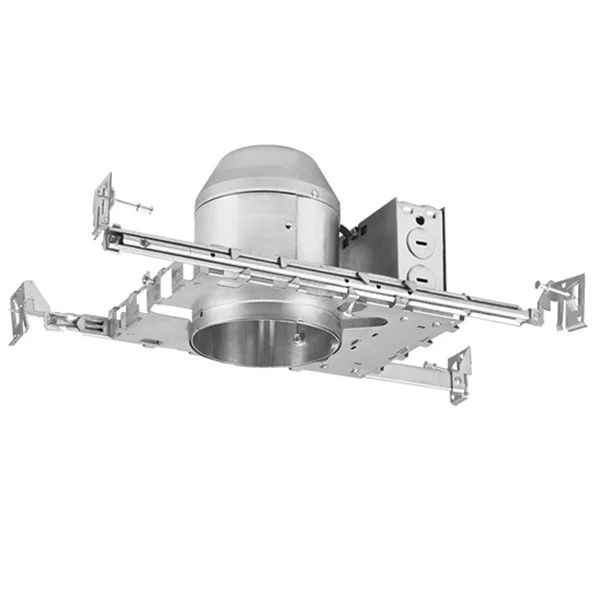

4-Inch Universal Line Voltage Airtight Frame-In Recessed Housing

This 8201HA Series is designed for quick and easy installation in existing ceilings. The housing is suitable for residential and commercial applications. Features thermal protector guards, adjustable hangar bars for easy installation.

AVAILALBE TRIMS

ELECTRICAL

• 120V
• Incandescent, 50W Max

HOUSING

• Sturdy aluminum construction
• Non-IC
• Thermally protected against misuse of insulation and improper lamping
• Adjusts to accommodate up to 1” ceiling thickness
• 5-1/2” height allows use in 2” x 6” joist construction
• Adjustable socket bracket plate for proper positioning of different lamp types

JUNCTION BOX

• J-box is listed for through-branch circuit wiring, (4in-4out) and seven 1/2” knockouts
• 3-port quick connectors pre-installed in all J-boxes

BAR HANGER

• Pre-installed bar hangers allow the housing to be positioned at any point within 24” joist span
• Pre-installed captive nails on bar hangers
• Bar hangers can be turned 90° on the plaster frame
• Bar hangers are designed to fit T-bar spine without additional clamps for use in drop ceilings

DIMENSIONS

• H 5-1/2” x L 7-3/4” x W 5-3/4”
• Aperture: 4-1/4”

LAMP

• R20
• PAR30

CERTIFICATIONS

• cETLus listed for damp location and feed through wiring
• Meets Washington’s State energy code for restricted airflow
• 1 year limited warranty
