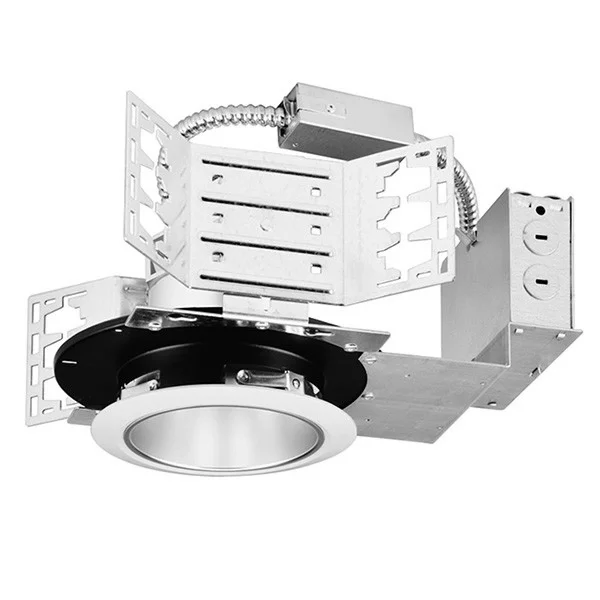

An ideal solution for efficiency, safety, and flexible design aesthetics. The 8121H housing – frame/module/trim combo balances power, efficiency and cost to bring you the options needed to complete a variety of residential or commercial projects with a reliable and modern LED down light solution.
DESIGN FEATURES
HOUSING
- 14W or 23W power options
- Sturdy aluminum construction
- Suitable for use in new construction applications
- 4 7/8” height allows for use in 2” x 6” joist construction
JUNCTION BOX
- Listed for through branch circuit wiring and includes several 3/4” knockouts
- Easy access plate for quick wiring
ARCHITECTURAL FRAME
- Heavy-gauge butterfly brackets provide flexible mounting options including EMT conduit, C-channel, and hanger bars
- Allows for precise placement of fixture

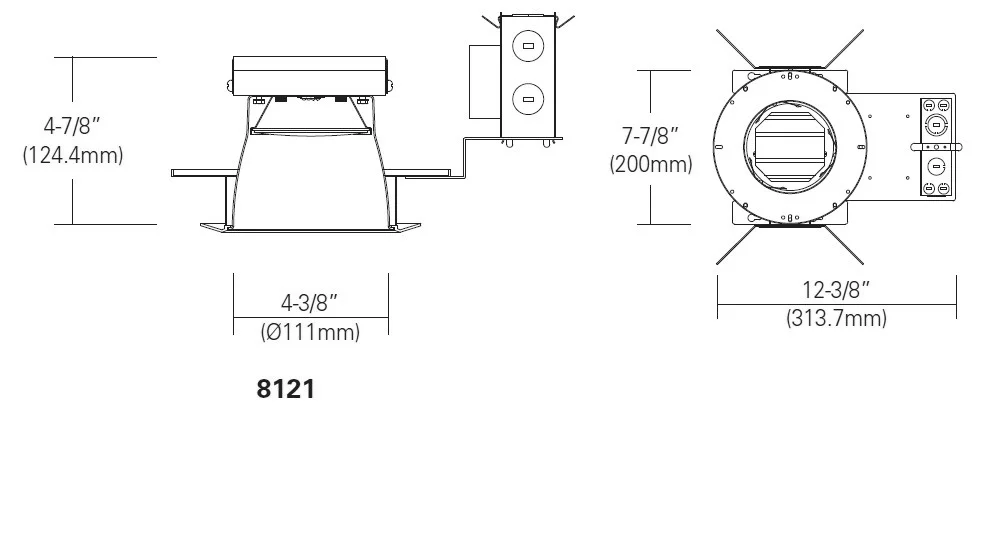

DIMENSIONS
12-3/8” x 7-7/8” x 4-7/8”
ELECTRICAL
- Universal voltage: 120V-277V
- Triac & 0-10V dimming with integral driver
- Suitable for use in damp locations
- 50,000 hour projected life
- 14W | 1150Lm | 82.14Lm/W | CRI 83 Power Factor: 0.98
- 23W | 1950Lm | 84.78Lm/W | CRI 85 Power Factor: 0.97
- Available in 3000K, 3500K or 4000K
CERTIFICATIONS
- Energy Star – 3000K & 4000K Only
- cCSAus
- 5 year limited warranty
