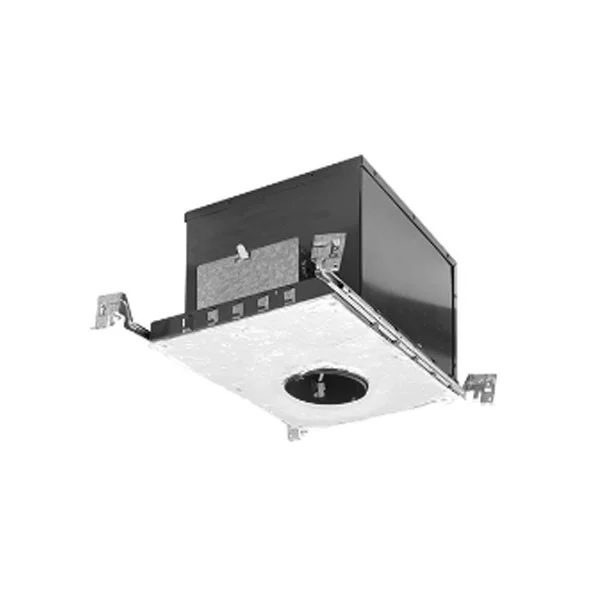

4-Inch Airtight Fire-Rated LED Recessed Light Housing

4-Inch Airtight Fire-Rated LED Recessed Light Housing
Experience superior safety and performance with our 4-inch airtight fire-rated LED recessed light housings. ETL listed for 2-hour fire resistance, these housings are designed to meet and exceed the stringent UL 263 fire safety codes. Optimized for direct contact with IC insulation, this durable, high-quality component is perfect for both new construction applications and retrofits.
Key Features

Type IC Rated: Safe for direct contact with insulation, complying with UL 1598 standards for luminaires.
ETL Listed: Certified for 2-hour fire resistance, exceeding stringent fire safety codes.
Strict Compliance: Adheres to UL 263 safety code and meets Title 24 requirements.
Quick Connector: Comes with a LED quick connector for easy installation.
Air Tight: Certified to ETL ASTM E283/E283M-19 standards.
Sound Barrier: Integrated non-combustible insulation minimizes sound transfer between floors.
Customizable: Trims and inserts sold separately for added versatility.

Electrical Specifications

Voltage: Operates on 120V or 277V
Wattage: 14W for energy-efficient lighting

Mechanical Features

Double Wall: IC rated for direct insulation contact.
Adjustable Housing: Suits ceiling thickness up to 1 1/2 inches.
Airtight: Gasket housing restricts airflow per ASTM E-283 standards.
Damp Locations: Suitable for various damp environments.

Junction Box Details

Galvanized Steel: Pre-wired #21 gauge junction box with multiple knockouts for ease of installation.

Hanger Bars Information

Easy Installation: Hanger bars feature True Nail for easy setup in different lumber materials, including T-bars and laminated beams.
Flexible Adjustment: Spans up to 24 inches and can be repositioned 90 degrees. Integral leveling flange for single-person alignment.

Application Scenarios

Ceiling Plenums: Perfect where 2×8 joists or taller are used.
T-grid and Drop Ceiling: Ideal for versatile ceiling construction types.
Detailed Guide: Refer to the installation sheet for complete setup instructions.
