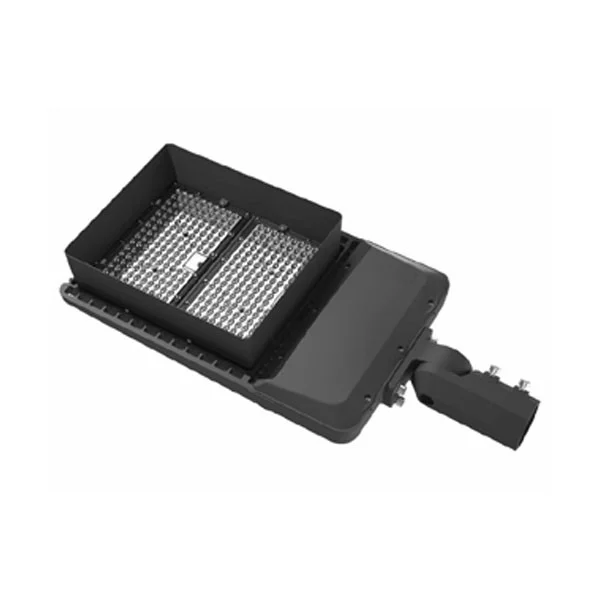

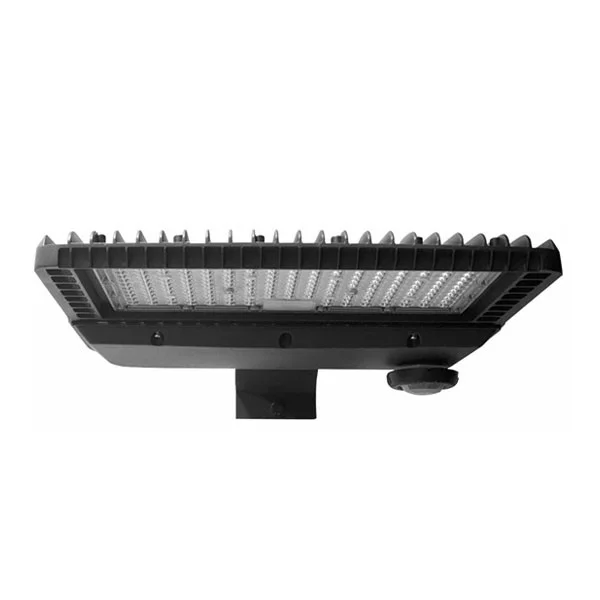

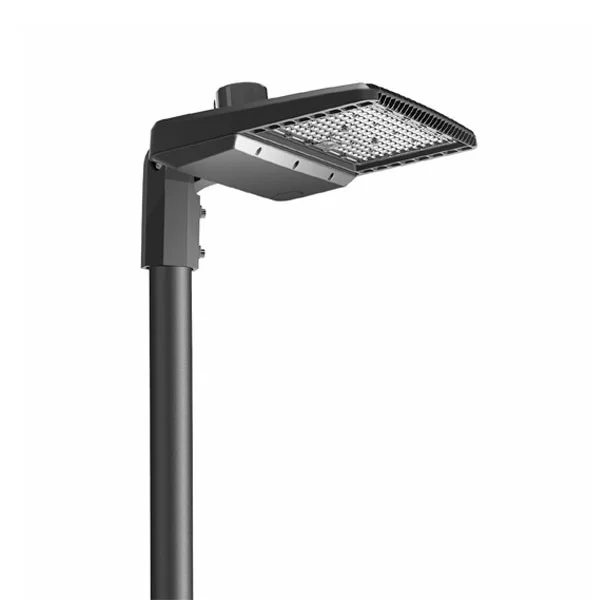

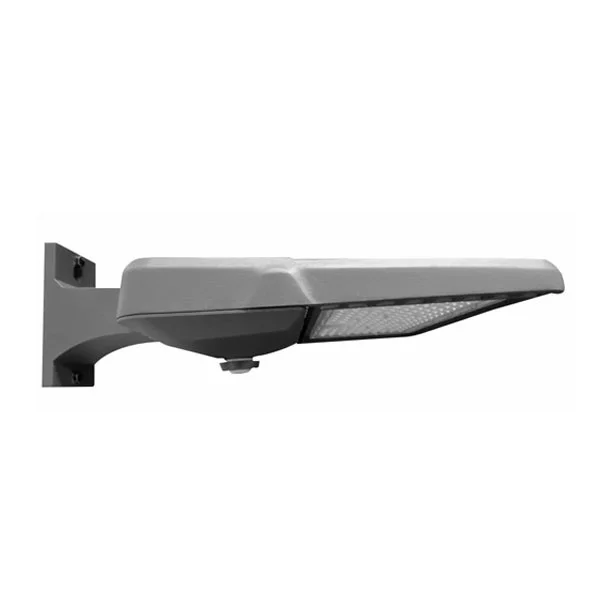

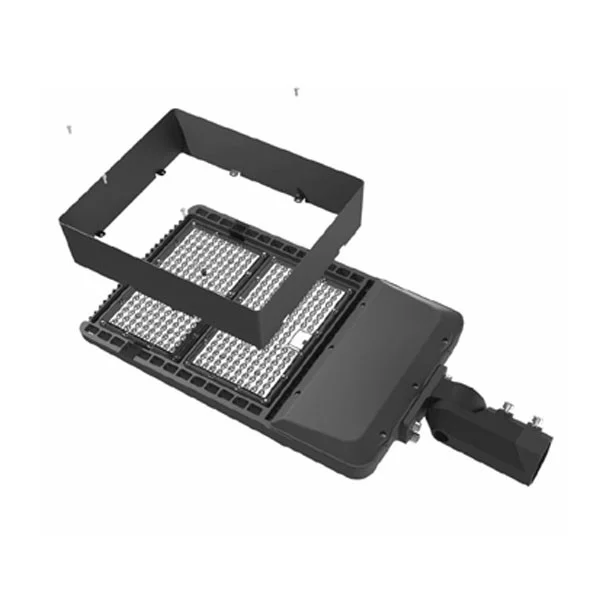

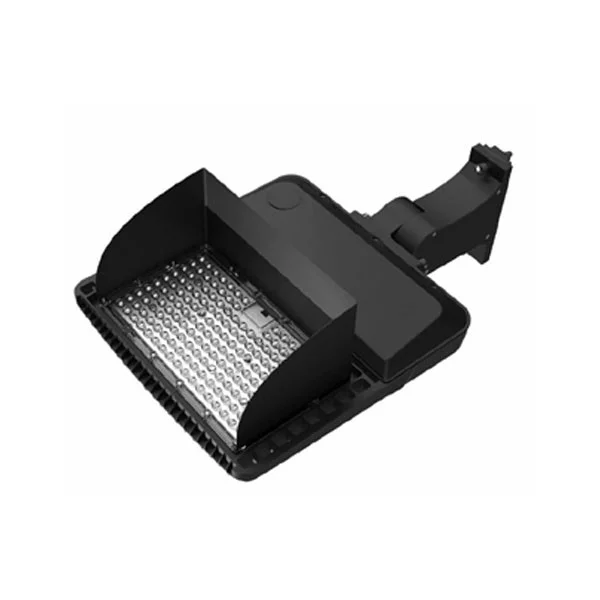

Archer area light, type III, 300 watts, 41,400-42,000 lumens, available in 5000K color temperature (CCT), up to 405,000 hours rated life, bronze finish, die cast aluminum housing, 10 years limited warranty.
With industry-leading 145 LPW high efficacy and precision-engineered polycarbonate lenses, the Archer Area Light delivers maximum value by providing significant energy savings, long life and outstanding photometric performance at an affordable price.
APPLICATIONS
Application
Fixture Type
Office and Meeting Space
Educational Facilities
Industrial and Distribution
Hospital and Healthcare Facilities
Garage and Parking Lot
Parks and Recreation
PRODUCT SPECS
Input Voltage (VAC): 100-277 / 347-480
CRI: 70+
CCT (K): 5000
Lifetime (Hrs per
TM21-08 @L70: See page 2 for detail
Finish Color: Bronze (RAL8019)
Housing: Die Cast Aluminum
Optic Types: T2, T3, T4, T5
Dimming: 1-10V Dimming
Operating Temperature: -30°C ~ 50°C
IP Rating: IP65
Limited Warranty: 10 Years‡
IK Rating: IK08
Surge Protection: L/N-PE: 10KV, L-N: 6KV; 20kV Optional*
Power Cable: 4′ – 3*18AWG
Wattage: 60W, 100W, 120W, 150W, 200W, 240W, 300W
PROJECTED LUMEN MAINTENANCE
Ambient TestTemp
ReportedHours
0 Hrs
25,000 Hrs
TMI21-11‡L94 54,000
50,000 Hrs
100,000 Hrs
L70 Hrs
25°C / 77°F
>54,000
1.0.966.943.946.907
405,000
