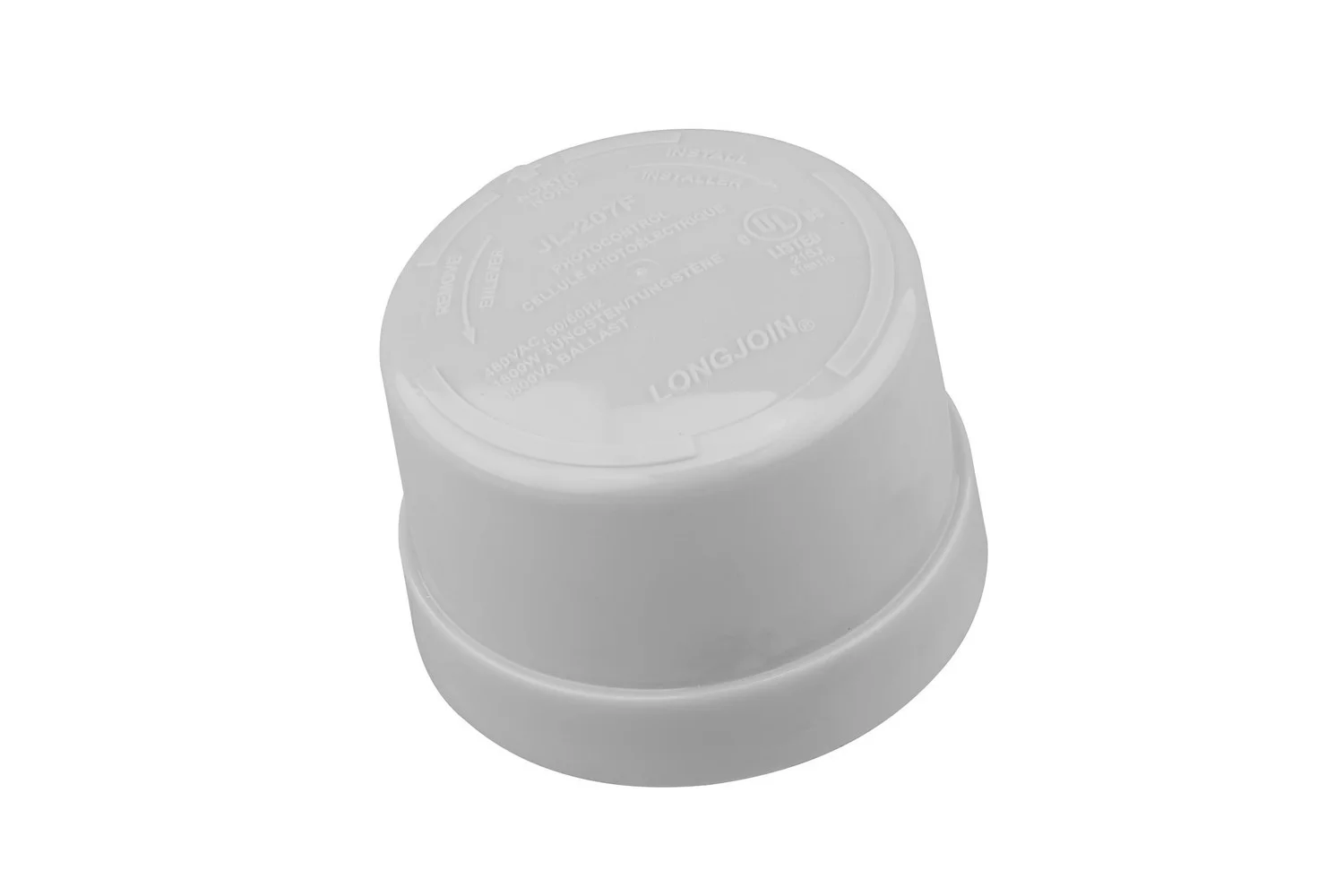

Compact and efficient 3-pin NEMA Twist-Lock On/Off Photocell with input voltage 120-480V, adjustable On Level: 16 Lx, Off Level: 24 Lx, and max current of 5A.
Key Features and Benefits

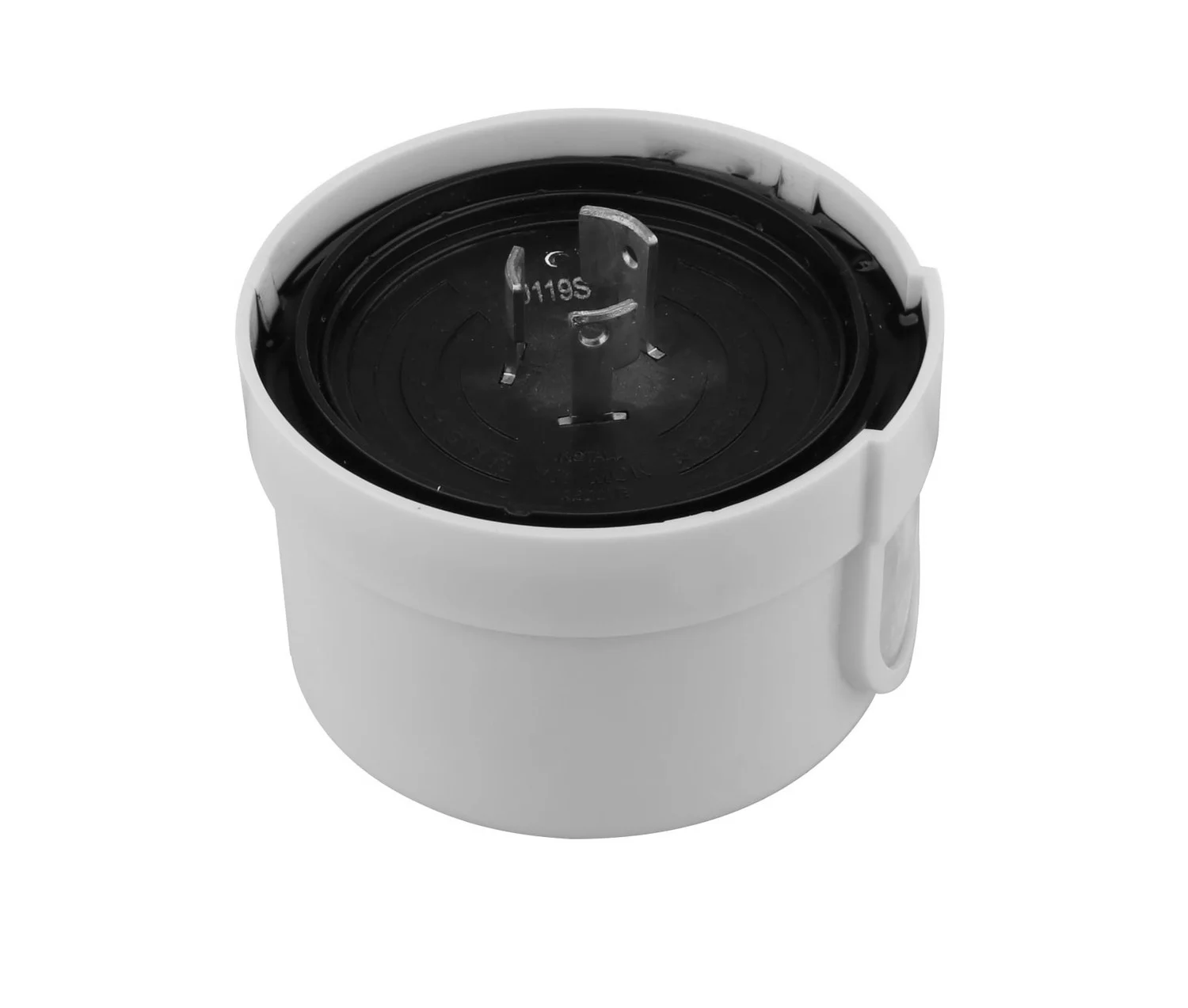

- 3-pin NEMA Twist-Lock design for easy installation and replacement.
- Wide input voltage range: 120-480V, 50/60Hz.
- Max Current: 5A for reliable performance.
- Adjustable light sensitivity: On Level: 16 Lx, Off Level: 24 Lx.
- Durable with an IP65 rating for outdoor use.
- Certified with ANSI C136.10-2010 and UL for US & Canada.
- 5-year warranty for peace of mind.
Specifications
- Input Voltage: 120-480V, 50/60Hz
- Max Current: 5A
- On Level: 16 Lx
- Off Level: 24 Lx
- Ambient Temperature: -40°F to 158°F (-40°C to 70°C)
- IP Rating: IP65
- Certifications: ANSI C136.10-2010, UL Certified for US & Canada
- Warranty: 5 years
Common Uses
Ideal for street lighting, parking lot lighting, and other outdoor lighting applications requiring reliable dusk-to-dawn control.
