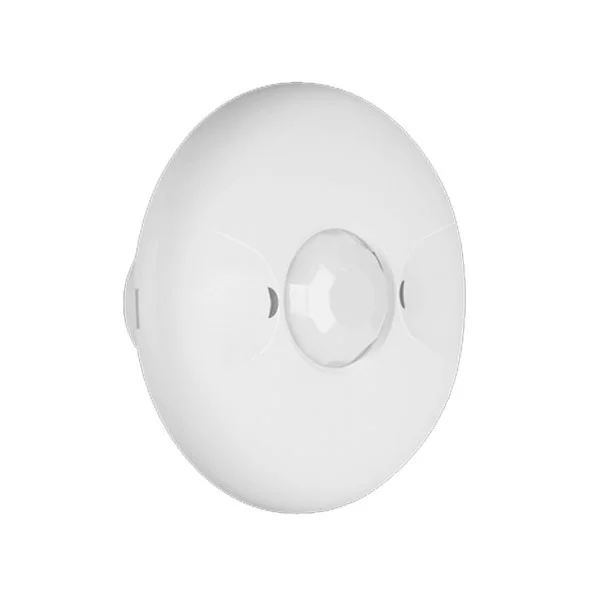

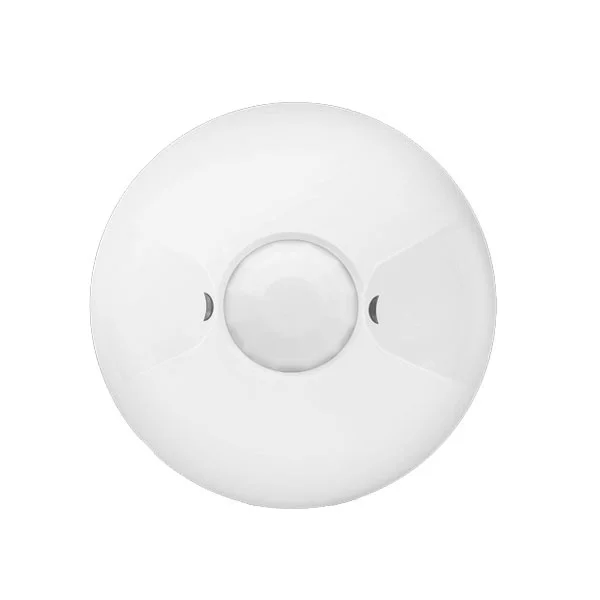

360° Passive Infrared Occupancy Ceiling Sensor

360° passive infrared occupancy ceiling sensor, 32°to 131°F (0°to 55°C) operating temperature, adjustable sensitivity settings simple, fast installation, 2 years limited warranty.
DESCRIPTION
The MPC-50L 360° passive infrared (PIR) occupancy sensors turn lighting systems on and off based on occupancy and ambient light level. The light level feature keeps lights from turning on if ambient light level is sufficient. The sensors can be configured to turn lighting on,and hold it on as long as the sensor detects occupancy. After no movement is detected for a specified or auto-set time (5 seconds to 30 minutes) the lights switch off. A “walk-through” mode can turn lights off after only 3 minutes, if no activity is detected after 30 seconds of anoccupancy detection.* The MPC-50L operated on 24V supplied by MMP-24 power pack
FEATURES

 Passive Infrared Technology(PIR)
360 ° field of view, 1200 sq.ft.
Time Delay is adjustable from 5 seconds to 30 minutes
Simple, fast installation
Adjustable sensitivity settings
Light level is adjustable.
LED compatible up to 150W

COVERAGE
The MPW-V privides an eliptical coverage pattern. The coverage shown repersents walking motion at a mounting height of 10 feet. The maximun coverage will be up to 1000 ft² with a largest distance of 15 meters. For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease.
SPECIFICATIONS

Voltage: 24VDC
Current Consumption: 9mA
Power Supply: MPP-24 Power Packs
Operating Temperature: 32°to 131°F (0°to 55°C)
Adjustable Light Level: 10FC—150FC
Adjustment Time Delay: 15 Sec. to 30 Min. (DIP Switch)
Walk-Through Mode: 3 minutes if no activity after 30 sec.
Test Mode: 15 sec. upon initial power-up or DIP switch reset
Sensitivity Adjustment: Automatic or Low (DIP switch)
Coverage: Up to 1200 ft2
Standards and Certifications: UL Listed
Warranty: 2 years
