Availability: 6 in stock

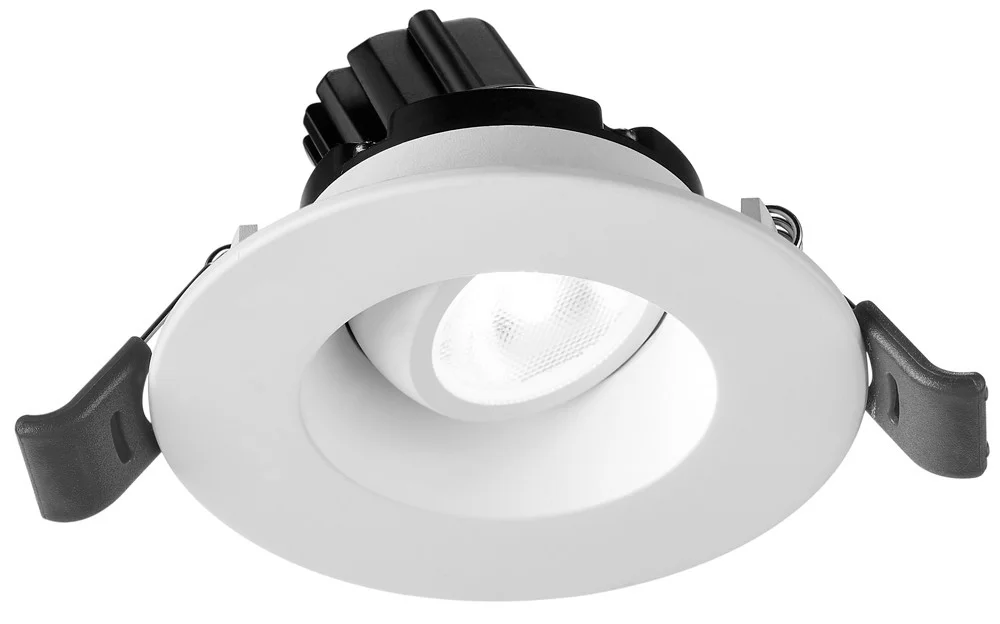

3-inch round eyeball recessed LED gimbal, 7.5 watts, 580-650 lumens, available in 5CCT color temperature (CCT), up to 50,000 hours rated life, white, black or brushed nickel finish, 10 year warranty residential/5 year warranty commercial.
DESCRIPTION
3″ Eyeball Round Recessed Gimbal LED with Integral Driver in Connection Box Enique & Patented Design: Gimbal Yet Air-Tight Without Housing Needed.
FEATURES & BENEFITS
1 3/4″ Deep Install Where Ceiling Space Is Limited
Type IC rated – No Housing Required
Fast & Easy To Install – Save On Labor
Driver Inside Connection Box – No Junction Box Needed
Directional Beam – Great for Sloped Ceilings and Artwork
CRI 90+ for True Color Rendering
Available in single CCT, Dim to Warm, & 5CCT
MOUNTING
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring ClipsCeiling Clearance Required:
1 1/2″ With Driver Remotely Installed
SPECIFICATIONS
Applications: Sloped Ceilings up to 20°, General Lighting
Energy Used: 7.5W
Color Temperature: 2700K, 3000K, 3500K, 4100K, 5000K
Light Output (lm): 580, 600, 620, 630, 650, 500
Halogen Equivalent: 50W
Beam Angle: 38° Beam with 20° tilt and 360° rotation
CRI: 90+
Default Driver Input: 120V AC Triac Dimmable
Optional Driver Input: 120V-347V AC 0-10V Dimmable
Junction Box Wire Capacity: Maximum of 5 No 12 AWG or 8 No 14 AWG
Power Factor: 0.95
Approved Location: Insulated Ceiling & Wet Locations
IP Rating: IP 54
Air Tight: Yes
Ambient Temperature: -40°F(-40°C)to+104°F(+40°C)
Projeceted Life: 70% Light Output at 50,000 Hours
Certification: cULus, Energy Star (except DTW & 5CCT), T24
Warranty: 10 Year Residential / 5 Year Commercial
