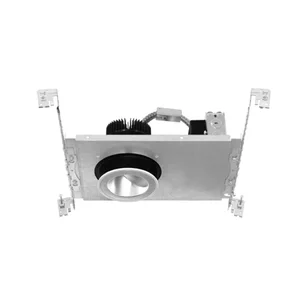

10W Non-IC Type LED Round Architectural Downlight with adjustable reflector, offering color temperatures of 2700K, 3000K, 3500K, and 4000K with selectable lumen outputs.
Key Features and Benefits
- Interchangeable reflectors for different beam distributions.
- Minimum trim reveals of 0.12″ thick.
- Adjustable trims allow 0°~30° tilt with 356° rotation for precise aiming.
- Dimming capability with 0-10V dimmer switches.
- Optional Lutron Hi-lume 1% LED drivers available.
- Compliant with IESNA LM-79 and LM80 standards.
- cETLus Listed.
Specifications
- Input Voltage: 120-277VAC
- Wattage: 10W
- Lumen Output: 845 lumens
- Efficacy: 84.5 LPW
- Color Temperature Options: 2700K, 3000K, 3500K, 4000K
- CRI: 80, 90
- Dimming: 0-10V, ELV & TRIAC
- Lifespan: 5 years or 50,000 hours
- Environment: Damp Location & optional Wet Location
Common Uses
Ideal for architectural settings requiring precise lighting control, such as galleries, retail spaces, and modern residential environments.
