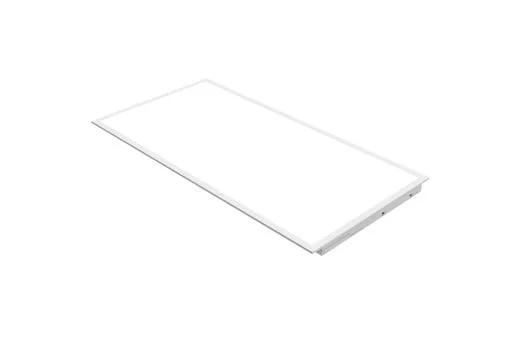

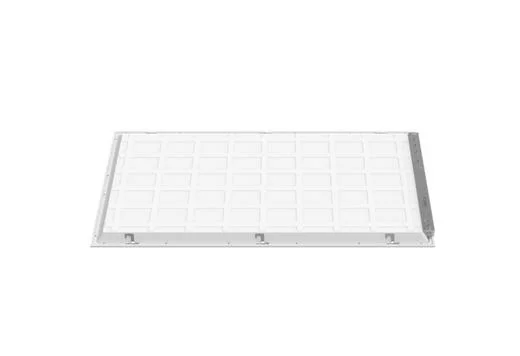

2X4 Flat Panel, Lumen Selectable, CCT Selectable, UNV 120-277V 0-10V Dimmable

The Flat Panel Series is a family of highly efficient, versatile, configurable recessed fixtures, designed for recessed applications. The DLC Premium listed panels offer lumen output and color temperature selectability, making their versatility and simple aesthetic design perfect for educational, commercial and retail applications.

Key Features and Benefits

• Lumen output selectability for maximum versatility.
• Color temperature selectability: 3500K, 4000K, 5000K.
• 0-10V dimming capability down to 10%.
• High efficacy for energy efficiency.
• Long lifespan with L70 lumen maintenance > 50,000 hours.
• cETLus rated for damp locations.
• IC Rated for direct contact with insulation.
• DLC Premium listed for quality assurance.
• RoHS and FCC part 15 compliant.

Specifications

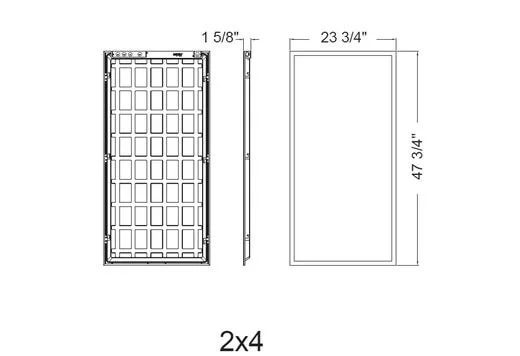

• Fixture Size: 2′ x 4′
• Lumen Output: 3750 / 4375 / 5625 lm
• Wattage: 30W / 35W / 45W
• Voltage: Universal 120-277V
• Color Temperature: 3500K, 4000K, 5000K
• CRI: 80

Common Uses

Ideal for educational, commercial, and retail settings where high efficiency and versatile lighting are required.
