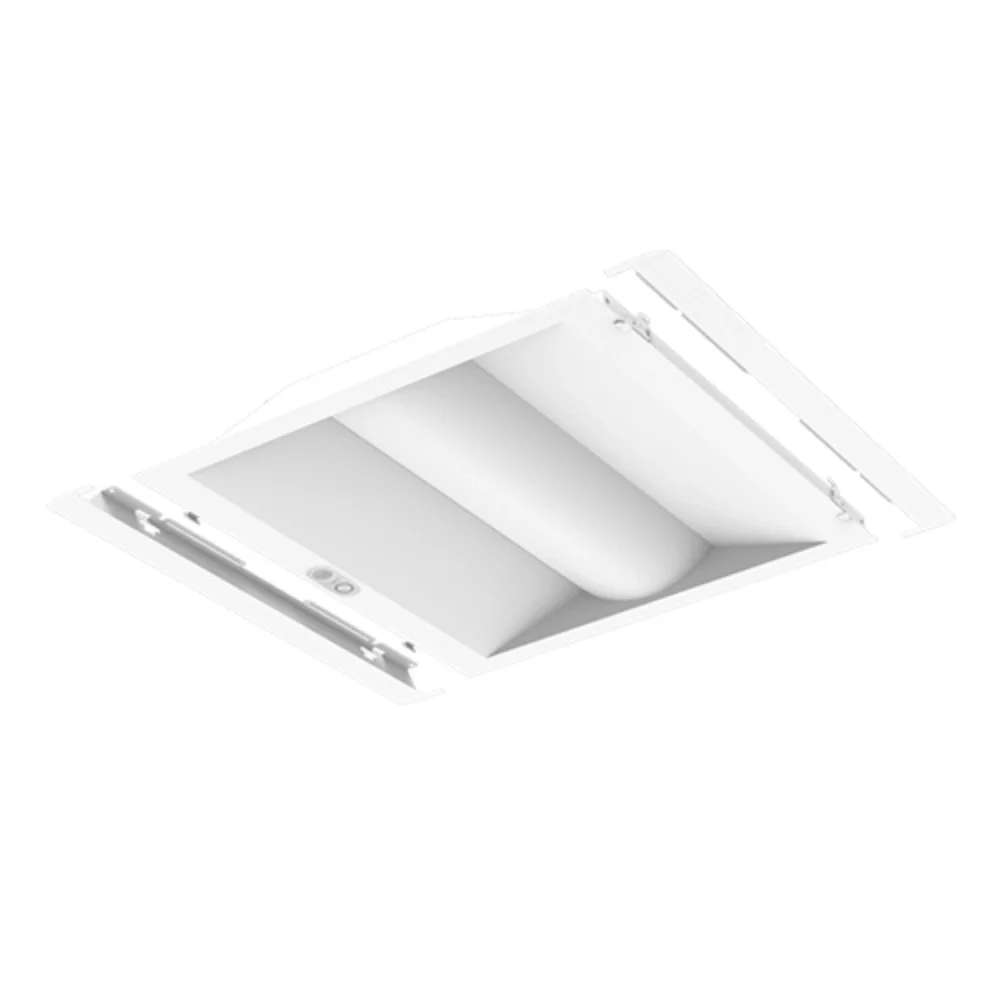

The ILP VTK Volumetric Troffer Kit is a Gen 2 retrofit solution designed to modernize existing fluorescent troffers with efficient, uniform LED performance. Built for commercial interiors, it combines field-selectable light output and CCT flexibility to simplify stocking and on-site configuration. As part of ILP’s retrofit lineup, the VTK series helps reduce energy use while improving visual comfort and controllability.
Key Features and Benefits
- Field-selectable lumen and CCT settings allow one fixture platform to serve multiple room types and lighting targets.
- High efficacy performance (up to 160 lm/W) helps lower operating costs versus legacy fluorescent systems.
- Controls-ready architecture supports advanced NUROAir sensor integration for occupancy and daylight-based energy savings.
- ETL Listed for U.S. and Canadian standards, with damp-location suitability for broader indoor application coverage.
- Backed by a 5-year standard warranty, with optional 10-year coverage for extended project assurance.
Specifications
- Lumen Output: 2000
- Wattage: 14W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- Dimming: 0-10V (10%-100%)
- Power Factor: >0.90
- Rated Life (L70): >100000 hours
- Max Ambient Temperature: 104b0F
- Minimum Ambient Temperature: -4b0F
- Housing Material: Post-painted steel
- Troffer Compatibility: Existing parabolic/lensed troffers with minimum 3 1/8″ housing depth
Common Uses
Ideal for education buildings, commercial offices, healthcare facilities, retail spaces, and storage facilities where efficient troffer retrofit performance and selectable light settings are required.
